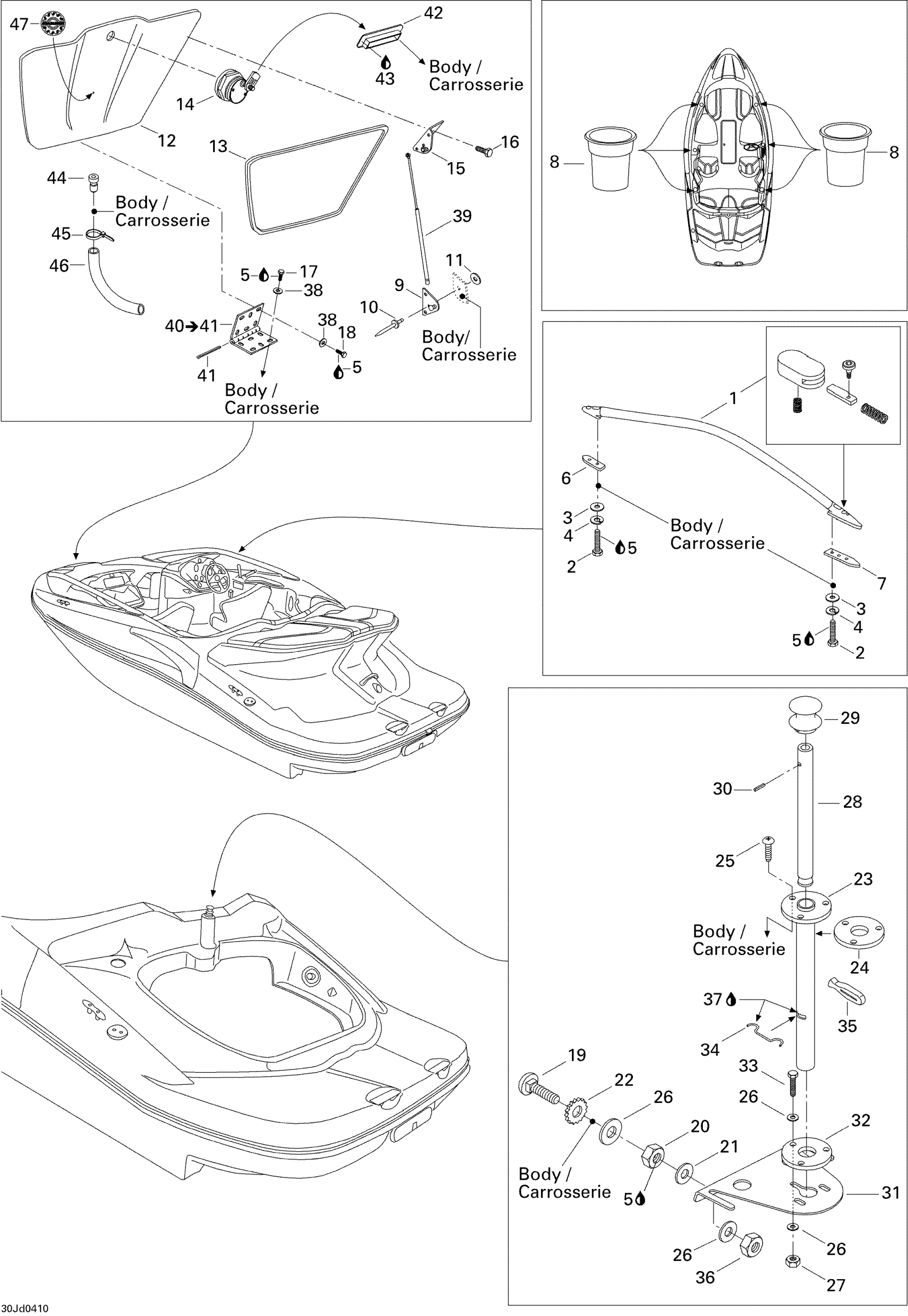

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 09- Body And Accessories 2 Diagram

#

Description
Price

1

Side Rail RH | Starboard

204071667

Unavailable

Side Rail LH | Port Side

204071668

Unavailable

2

HEX. SCREW 3/8 X 1-1/2 - Call your local BRP dealership

204100135

Unavailable

3

Flat Washer 10 mm, Stainless

234002600

$2.22

4

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

5

Loctite 243, 10 ml

293800060

$21.49

6

GASKET, FRONT - Call your local BRP dealership | With Tower

204130063

Unavailable

7

GASKET, REAR - Call your local BRP dealership | With Tower

204130064

Unavailable

8

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

9

Shock Bracket

204071673

Unavailable

10

Pop Rivet 3/16"

293150043

$2.09

11

Flat Washer M5, Stainless

234051600

$0.77

12

Bow Cover

204071886

Unavailable

13

Was 293200017 Neoprene Seal

219704365

$149.99

14

FLUSH LATCH - Call your local BRP dealership

204071937

Unavailable

15

Angled Shock Bracket

204071699

Unavailable

16

Hex. Screw M4 X 12, Scotch Grip

207341260

Unavailable

17

Hex. Screw M6 X 25

207162560

$1.47

18

Hex. Screw M6 X 16

207161660

$1.59

19

Screw 1/4”-20 X 1-3/4”

211000193

Unavailable

20

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

21

Stainless, Flat Washer 8 mm

234081600

$0.55

22

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

23

FIXED TUBE - Call your local BRP dealership

291001057

Unavailable

24

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

25

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

26

Flat Washer M6, Stainless

234062600

$0.77

27

Hex. Elastic Stop Nut M6

232561600

$1.15

28

SKI SHAFT - Call your local BRP dealership

204072616

Unavailable

29

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

30

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

31

FIXATION PLATE - Call your local BRP dealership

204071839

Unavailable

32

RETAINER WASHER - Call your local BRP dealership

291001060

Unavailable

33

Hex. Forming Screw M6 X 20

207162060

$1.29

34

SPRING - Call your local BRP dealership

291001205

Unavailable

35

Windshield Latch

570023800

$4.49

36

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

37

Synthetic Grease, 400 G

293550010

Unavailable

38

Stainless Flat Washer M6

234061600

$0.33

39

CYLINDER GAS SHOCK - Call your local BRP dealership

204071918

Unavailable

40

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

41

Cotter Pin M2.5 X 12

204070205

Unavailable

42

GROMMET - Call your local BRP dealership

293720099

Unavailable

43

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

44

DRAIN FITTING - Call your local BRP dealership

204071783

Unavailable

45

Tie Wrap 94 mm | 4X4

293750001

$1.03

46

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

47

BRP Logo 48mm

516008738

$16.99
