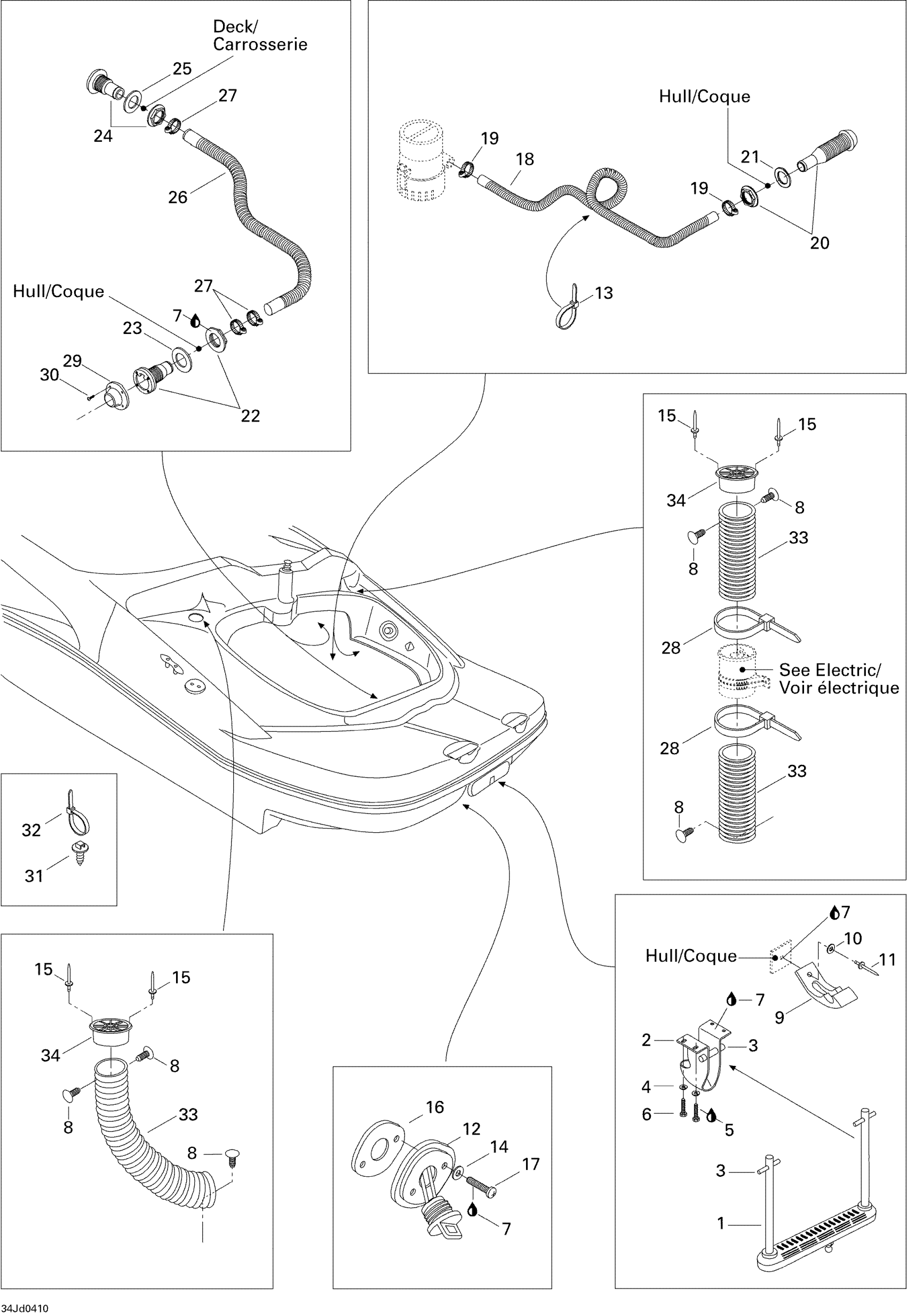

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 Body And Accessories 1 Diagram

#

Description
Price

1

LADDER - Call your local BRP dealership

204060187

Unavailable

2

U-BRACKET - Call your local BRP dealership

204060141

Unavailable

3

ROLL PIN M8 X 55 - Call your local BRP dealership

211300021

Unavailable

4

Lock Washer Helical M6

234161601

Unavailable

5

Loctite 243, 10 ml

293800060

Unavailable

6

Hex. Screw M6 X 35

207163560

Unavailable

7

Silicone Sealant 51388, 300 ml

296000309

Unavailable

8

Black, Dart

293730006

Unavailable

9

Hood Latch

570027100

Unavailable

10

Flat Washer 5 mm, Stainless

234052600

Unavailable

11

Pop Rivet 3/16"

293150013

Unavailable

12

Drain Plug

292000187

Unavailable

13

Tie-Rap 180 mm

414115200

Unavailable

14

Flat Washer 4 mm, Stainless

234041600

Unavailable

15

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

16

GASKET - Call your local BRP dealership

293250030

Unavailable

17

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

18

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

19

Tridon Clamp

293650016

Unavailable

20

Fitting

293710162

Unavailable

21

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

22

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

23

GASKET - Call your local BRP dealership

292800106

Unavailable

24

FITTING - Call your local BRP dealership

293710060

Unavailable

25

GASKET - Call your local BRP dealership

292800106

Unavailable

26

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

27

Norma Clamp

293650074

Unavailable

28

Tie Wrap 368 mm

293750008

Unavailable

29

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

30

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

31

Mount Dart

293730040

Unavailable

32

Tie Wrap 368 mm

293750008

Unavailable

33

Was 204050122 Vent Hose 4"

219704358

Unavailable

34

VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533.

204050803

Unavailable
