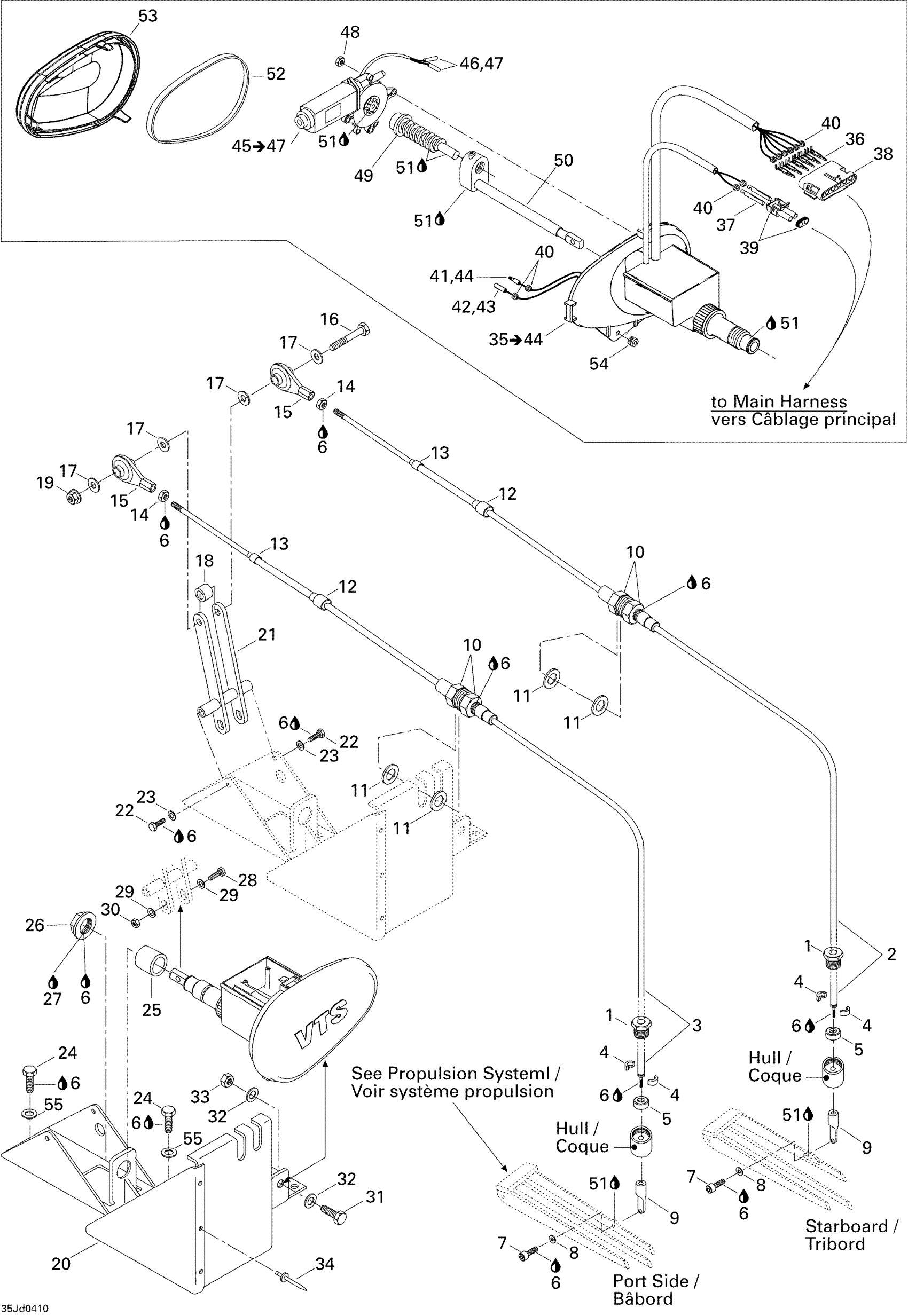

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 Weedless System Diagram

#

Description
Price

1

Steering Cable Lock This part replaces 277000784.

277001729

Unavailable

2

RH Weedless Cable, Starboard

204200114

Unavailable

3

LH Weedless Cable, Port Side

204200113

Unavailable

4

HALF RING - Call your local BRP dealership

204200009

Unavailable

5

Rubber Washer

204200010

Unavailable

6

Loctite 243, 10 ml

293800060

Unavailable

7

Pivot Socket Screw M5 x 0.8

204100138

Unavailable

8

FLAT WASHER 5 MM - Call your local BRP dealership

234052100

Unavailable

9

Joint

204200006

Unavailable

10

Hex. Jam Nut

212100006

Unavailable

11

Flat Washer

213200017

Unavailable

12

Boot, Large

277000473

Unavailable

13

Boot, Small

277000466

Unavailable

14

Hex. Nut

212100005

Unavailable

15

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

16

Hex. Screw M6 X 70

207067060

Unavailable

17

Flat Washer M3, Stainless

234032600

Unavailable

18

NYLON SPACER - Call your local BRP dealership

204200112

Unavailable

19

Hex. Elastic Stop Nut M6

232561600

Unavailable

20

Weedless Support

204200110

Unavailable

21

Pivot Arm Ass’y

204470856

Unavailable

22

Hex. Screw M6 X 16

207161660

Unavailable

23

Stainless Flat Washer M6

234061600

Unavailable

24

Hex. Screw M6 X 30

207163060

Unavailable

25

ABS SPACER - Call your local BRP dealership

204470857

Unavailable

26

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

27

Was 293800041 Loctite Primer 7649

219704458

Unavailable

28

Hex. Screw M6 X 25

207162560

Unavailable

29

Flat Washer M6, Stainless

234062600

Unavailable

30

Hex. Elastic Stop Nut M6

232561600

Unavailable

31

Hex. Screw M8 X 30

207183060

Unavailable

32

Flat Washer M8, Stainless

234080600

Unavailable

33

Hex. Elastic Nut M8

232581600

Unavailable

34

Pop Rivet 3/16"

293150039

Unavailable

35

V.T.S. HOUSING ASSY - Call your local BRP dealership | Includes 27 to 36

278001606

Unavailable

36

Male Terminal | XT Models

278000222

Unavailable

37

Female Terminal

278000223

Unavailable

38

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

39

Male Connector, 2 Circuits

278000220

Unavailable

40

Wire Seal

278000218

Unavailable

41

Insulated Sheath

278001008

Unavailable

42

Insulated Sheath

278001007

Unavailable

43

Female Terminal | DS 650 X

278001009

Unavailable

44

Male Terminal

278000230

Unavailable

45

Windshield Motor

278002579

Unavailable

46

Insulation Sheath

278000231

Unavailable

47

Male Terminal

278000230

Unavailable

48

Hex. Elastic Stop Nut M6

232561600

Unavailable

49

Worm Screw

278000428

Unavailable

50

Sliding Block Ass’y

278001698

Unavailable

51

Synthetic Grease, 400 G

293550010

Unavailable

52

GASKET - Call your local BRP dealership

293200027

Unavailable

53

V.T.S. COVER - Call your local BRP dealership

278000595

Unavailable

54

GROMMET - Call your local BRP dealership

293720015

Unavailable

55

Stainless Flat Washer M6

234061600

Unavailable
