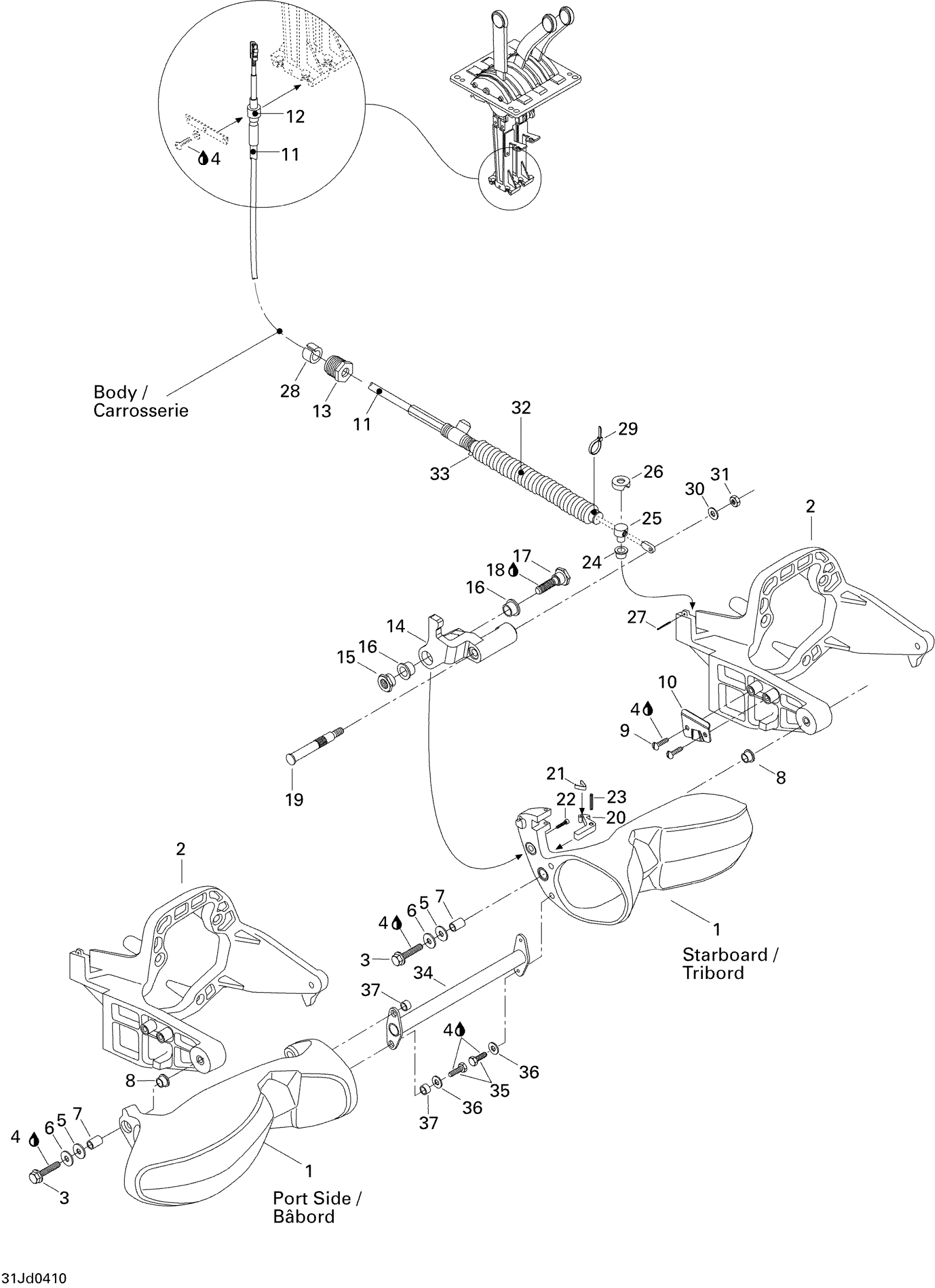

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 Reverse Diagram
#
1
Reverse Gate, Starboard
204170188
Unavailable
2
Reverse Gate, Port Side
204170187
Unavailable
2
Reverse Gate Support
204170214
Unavailable
3
Hex. Flange Screw 18 X 1.56
204100163
Unavailable
4
Loctite 243, 10 ml
293800060
Unavailable
5
WASHER, NYLON - Call your local BRP dealership
204100128
Unavailable
6
Flat Washer 8 mm, Stainless
234082600
Unavailable
7
Sleeve
204170177
Unavailable
8
Bushing
204130237
Unavailable
9
SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership
204100122
Unavailable
10
STOP PAWL - Call your local BRP dealership
271000485
Unavailable
11
Reverse Cable
268000109
Unavailable
12
End Piece
277001583
Unavailable
13
Steering Cable Lock This part replaces 277000784.
277001729
Unavailable
14
NEEDS DESCRIPTION | Includes 7 to 8 This part replaces 204170230.
0460979
Unavailable
15
SHOULDER NUT - Call your local BRP dealership
204100123
Unavailable
16
BUSHING - Call your local BRP dealership
204130036
Unavailable
17
SHOULDER SCREW - Call your local BRP dealership
204100124
Unavailable
18
Loctite 271, 10 ml
293800005
Unavailable
19
PIN - Call your local BRP dealership
204130037
Unavailable
20
HOOK - Call your local BRP dealership
204170220
Unavailable
21
Spring
271000431
Unavailable
22
Socket Head Screw
204100127
Unavailable
23
Pin
211400009
Unavailable
24
Bushing
204130237
Unavailable
25
THREADED END PIECE - Call your local BRP dealership
204130038
Unavailable
26
Reverse Cable Bushing - Call your local BRP dealership This part replaces 204170212.
296000396
Unavailable
27
Cotter Pin
204130040
Unavailable
28
RUBBER GROMMET - Call your local BRP dealership
204130041
Unavailable
29
Tie-Rap 180 mm
414115200
Unavailable
30
Flat Washer 5 mm, Stainless
234052600
Unavailable
31
NEEDS DESCRIPTION This part replaces 204100034.
0460000
Unavailable
32
Not Available As Spare Part - Friction Washer
Unavailable
33
Clamp
204170140
Unavailable
34
Reverse Rod
204170180
Unavailable
35
SCREW HEX. M4 X 20 - Call your local BRP dealership
207142060
Unavailable
36
Flat Washer 4 mm, Stainless
234042600
Unavailable
37
SPACER BUSHING - Call your local BRP dealership
204170026
Unavailable
