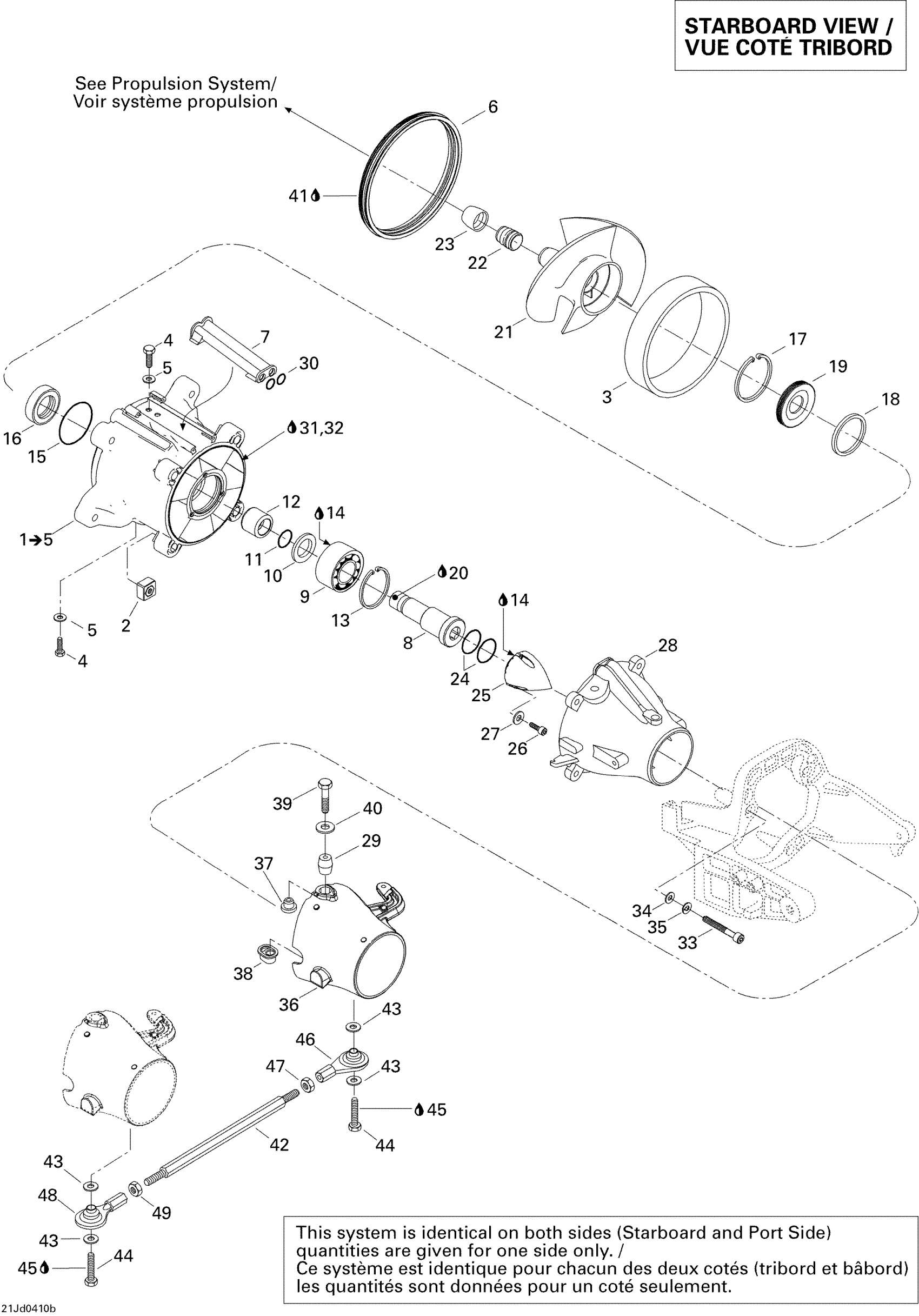

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 Pump System Diagram

#

Description
Price

1

IMPELER HOUSING ASSY - Call your local BRP dealership | INCLUDES 1 TO 5

271001382

Unavailable

2

Square Nut M8

211100033

Unavailable

3

Wear Ring

271000653

Unavailable

4

Hex. Plastite Screw #10 X 3/8"

250000040

Unavailable

5

Flat Washer M5, Stainless

234051600

Unavailable

6

Neoprene Seal

293200087

Unavailable

7

Water Outlet

271000785

Unavailable

8

Impeller Shaft

271001263

Unavailable

9

Angle Bearing

293350042

Unavailable

10

SPACER - Call your local BRP dealership

271001264

Unavailable

11

O-Ring

293300079

Unavailable

12

SHAFT SLEEVE - Call your local BRP dealership

271001406

Unavailable

13

CIRCLIP - Call your local BRP dealership

293370024

Unavailable

14

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

15

O-Ring

293300090

Unavailable

16

Seal

271002071

Unavailable

17

Circlip

293370038

Unavailable

18

Spacer

271001393

Unavailable

19

Oil Seal

293200089

Unavailable

20

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

21

Impeller Assy This part replaces 267000115.

267000673

Unavailable

22

IMPELLER BOOT - Call your local BRP dealership

271001152

Unavailable

23

IMPELLER RING - Call your local BRP dealership

271001153

Unavailable

24

O-Ring

293300086

Unavailable

25

Impeller Cover

267000262

Unavailable

26

Socket Head Screw M6 X 20, Scotch Grip

205562060

Unavailable

27

Stainless Flat Washer M6

234061600

Unavailable

28

VENTURI, BLACK - Call your local BRP dealership

271001485

Unavailable

29

Sleeve

271001816

Unavailable

30

O-Ring

293300013

Unavailable

31

Was 293800041 Loctite Primer 7649

219704458

Unavailable

32

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

33

SOCKET HEAD SCREW M8 X 120, SCOTCHGRIP - Call your local BRP dealership

231182060

Unavailable

34

Stainless, Flat Washer 8 mm

234081600

Unavailable

35

Lock Washer 8 mm, Stainless

234181601

Unavailable

36

STEERING NOZZLE - Call your local BRP dealership

271001482

Unavailable

37

Venturi Bushing

293900001

Unavailable

38

Plastic Bushing

293900010

Unavailable

39

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

40

Flat Washer M8.5 x 18

293050001

Unavailable

41

Glue Tube, Loctite 454, 20 G

413708300

Unavailable

42

LINK ROD - Call your local BRP dealership

204120255

Unavailable

43

Stainless Flat Washer M6

234061600

Unavailable

44

Hex. Screw M6 X 25

207162560

Unavailable

45

Loctite 243, 10 ml

293800060

Unavailable

46

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

47

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

48

BALL JOINT - Call your local BRP dealership

204120075

Unavailable

49

HEX. NUT 5/16-24 - Call your local BRP dealership

211100034

Unavailable
