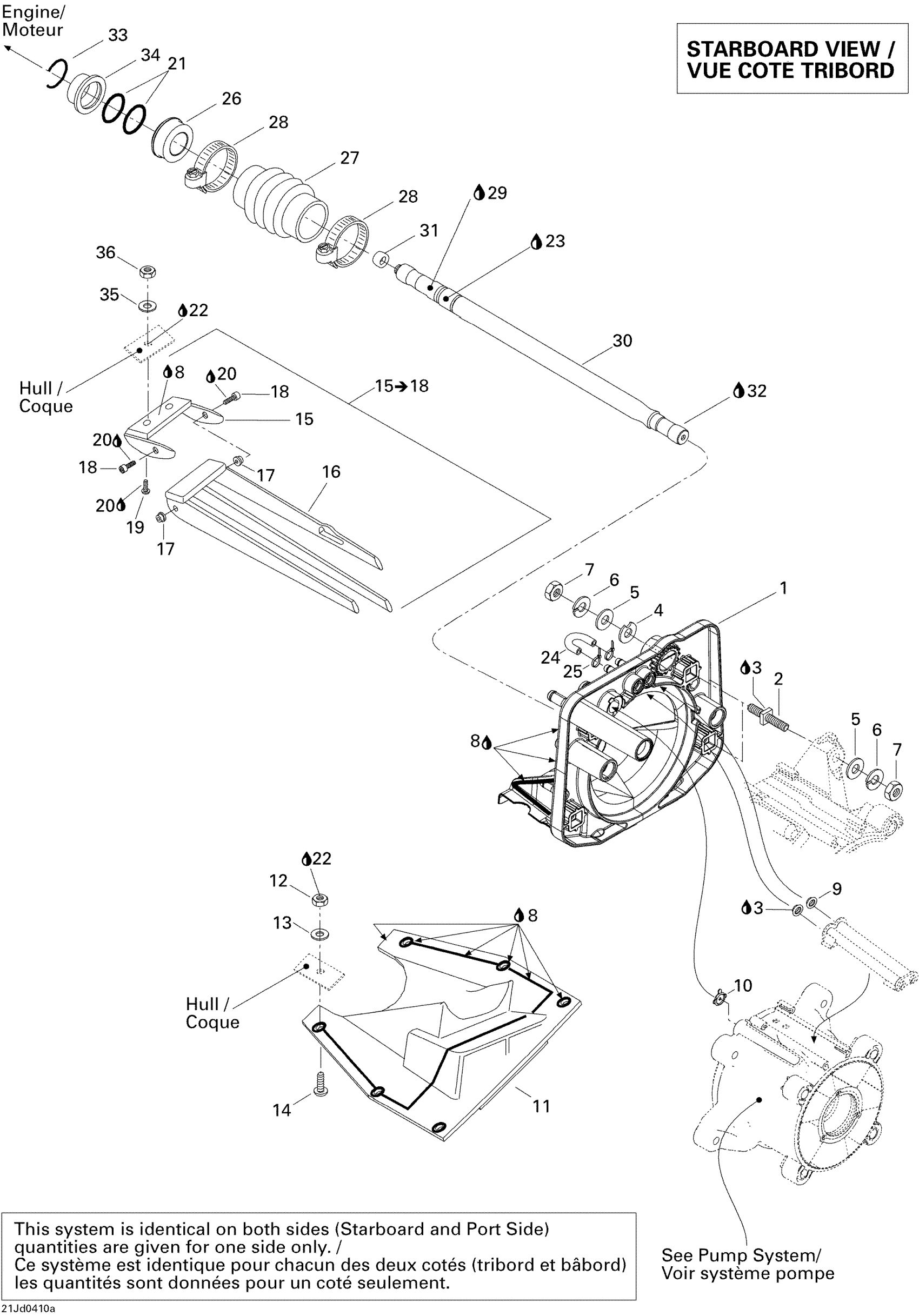

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 Propulsion System Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120252

Unavailable

2

Square Stud

250300022

$15.57

3

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

4

Shim 0.3 mm

272000053

$8.02

5

Flat Washer 10 mm, Stainless

234002600

$1.85

6

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

7

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

8

Instant Gasket

219701421

$50.02

9

Watertight Seal

293250084

$5.81

10

Reducer This part replaces 291001887.

291004649

$12.57

11

Riding Plate, Starboard

204120262

Unavailable

Riding Plate, Port Side

204120261

Unavailable

12

Hex. Elastic Stop Nut M6

232561600

$0.92

13

Flat Washer M6, Stainless

234062600

$0.64

14

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

15

Weedless Grate Ass’y, Starboard | Includes 29 to 34

204120258

Unavailable

Weedless Grate Ass’y, Port Side | Includes 29 to 34

204120259

Unavailable

15

Grate Support, Starboard

204120083

Unavailable

GRATE SUPPORT, PORT SIDE - Call your local BRP dealership

204120086

Unavailable

16

MOBILE GRATE, STARBOARD - Call your local BRP dealership

204120256

Unavailable

Mobile Grate, Port Side

204120257

Unavailable

17

PLASTIC BUSHING - Call your local BRP dealership

204390001

Unavailable

18

SOCKET SCREW M6 X 8 - Call your local BRP dealership

211000099

Unavailable

19

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

20

Loctite 243, 10 ml

293800060

$20.77

21

O-Ring

293300044

$0.86

22

Silicone Sealant 51388, 300 ml

296000309

$35.72

23

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

24

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

25

Tie Wrap 94 mm | 4X4

293750001

$0.83

26

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

27

Bellows

272000183

$22.72

28

Norma Clamp

293650077

$6.11

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Drive Shaft

271001449

$240.47

31

Drive Shaft Plug

272000173

$7.02

32

Synthetic Grease, 400 G

293550010

Unavailable

33

C-Clip

271001575

$4.54

34

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

35

Flat Washer M6, Stainless

234062600

$0.64

36

Hex. Elastic Stop Nut M6

232561600

$0.92
