- Speedster 200 Twin 4-TEC, 1st Edition, 2004
05- Control Handle

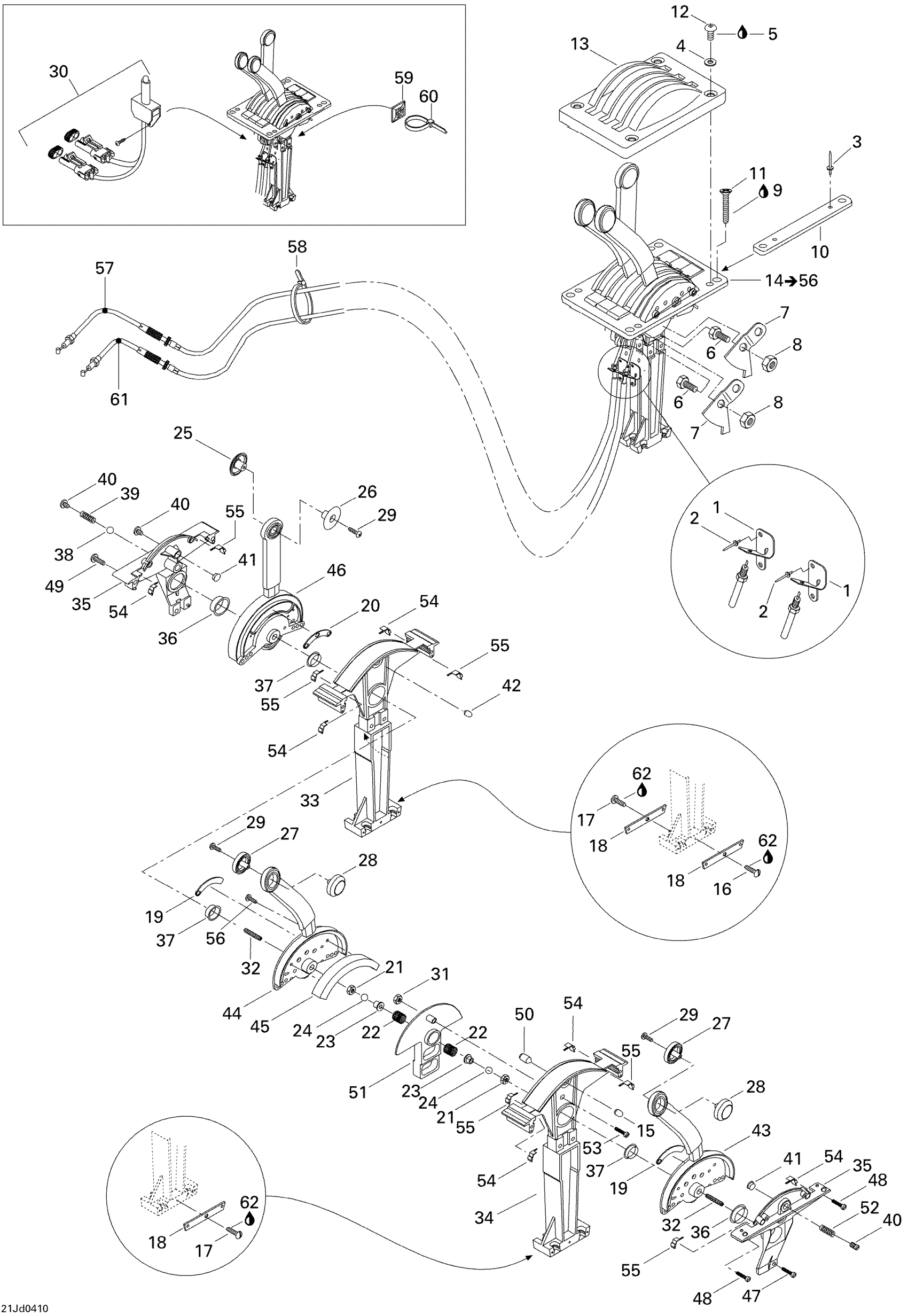

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 05- Control Handle Diagram
#
1
CABLE SUPPORT - Call your local BRP dealership
277000504
Unavailable
2
RIVET_POP 1/8 - Call your local BRP dealership
293150026
Unavailable
3
Pop Rivet 3/16"
293150013
$1.37
4
Flat Washer 4 mm
234040600
$0.55
5
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
6
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
7
THROTTLE LINK - Call your local BRP dealership
204390045
Unavailable
8
Hex. Elastic Nut M5 | X
232551600
$1.15
9
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
10
SHIFTER INSERT - Call your local BRP dealership
293450061
Unavailable
11
SCREW M5 X 30 - Call your local BRP dealership
205353060
Unavailable
12
Phillips Screw M4 X 10
208641060
$1.01
13
Control Plate
204390124
Unavailable
14
Control Ultraflex Ass'y | Includes 1 to 43
295501111
Unavailable
15
Throttle Lever Pin
277000708
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
SPACER - Call your local BRP dealership
277000707
Unavailable
20
Shift Lever Spacer
277000408
Unavailable
21
NUT M6 - Call your local BRP dealership
277000425
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
Ball 6 mm
277000652
Unavailable
25
HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership
277000417
Unavailable
26
HALF-SHIFT HANDLE - Call your local BRP dealership
277000418
Unavailable
27
HALF-THROTTLE HANDLE - Call your local BRP dealership
277000416
Unavailable
28
HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership
277000415
Unavailable
29
SCREW M3.5 X 25 - Call your local BRP dealership
277000419
Unavailable
30
NEUTRAL SWITCH - Call your local BRP dealership
204130094
Unavailable
31
Hex. Elastic Nut M5 | X
232551600
$1.15
32
Not Available As Spare Part - Friction Washer
Unavailable
33
Not Available As Spare Part - Friction Washer
Unavailable
34
Not Available As Spare Part - Friction Washer
Unavailable
35
Half-Case
277000653
Unavailable
36
BUSHING - Call your local BRP dealership
277000397
Unavailable
37
BUSHING - Call your local BRP dealership
277000398
Unavailable
38
BALL - Call your local BRP dealership
277000399
Unavailable
39
SPRING - Call your local BRP dealership
277000400
Unavailable
40
CAP SCREW - Call your local BRP dealership
277000402
Unavailable
41
FRICTION INSERT - Call your local BRP dealership
277000403
Unavailable
42
BLOCKING PIVOT - Call your local BRP dealership
277000704
Unavailable
43
THROTTLE LEVER - Call your local BRP dealership
277000655
Unavailable
44
LH THROTTLE LEVER - Call your local BRP dealership
277000409
Unavailable
45
Guide Block
277000410
Unavailable
46
SHIFT LEVER - Call your local BRP dealership
277000414
Unavailable
47
SCREW M5 X 60 - Call your local BRP dealership
277000420
Unavailable
48
SCREW M5 X 20 - Call your local BRP dealership
204100016
Unavailable
49
Screw M5 X 70
277000422
Unavailable
50
THROTTLE LEVER PIN - Call your local BRP dealership
277000705
Unavailable
51
SPACER FRAME - Call your local BRP dealership
277000706
Unavailable
52
SPRING - Call your local BRP dealership
277000401
Unavailable
53
Screw M5 X 25
277000412
Unavailable
54
RH Water Seal
277000423
Unavailable
55
LH Water Seal
277000424
Unavailable
56
Screw M4.2 x 19
277000411
Unavailable
57
LH THROTTLE CABLE - Call your local BRP dealership
204390572
Unavailable
58
Tie-Rap 180 mm
414115200
$0.11
59
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
60
Tie Wrap 94 mm | 4X4
293750001
$1.03
61
RH THROTTLE CABLE - Call your local BRP dealership
204390576
Unavailable
62
Loctite 243, 10 ml
293800060
$21.49
