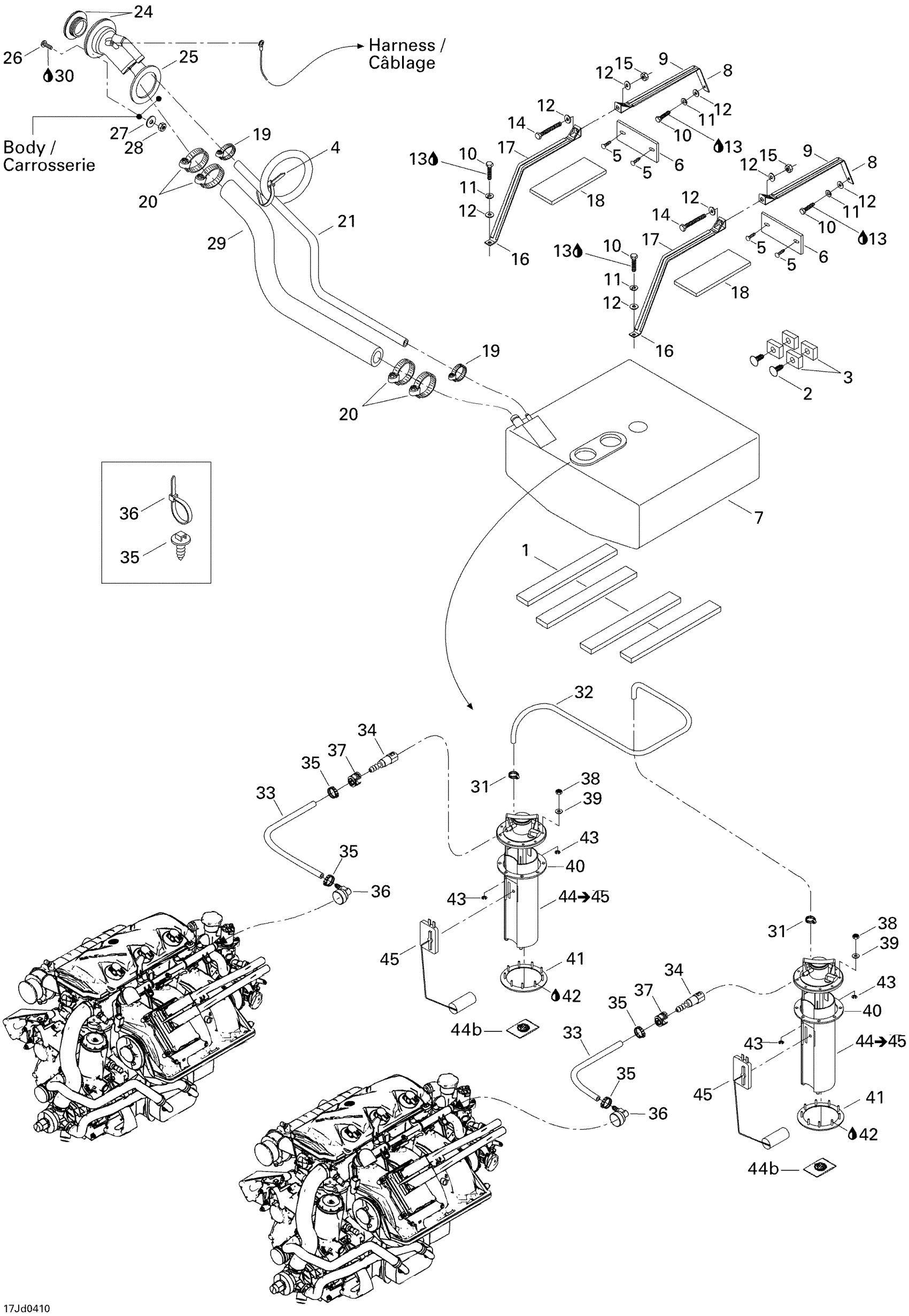

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 Fuel System Diagram

#

Description
Price

1

PROTECTOR PAD - Call your local BRP dealership

204560115

Unavailable

2

Black Dart

293730014

Unavailable

3

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable

4

Tie-Rap 173 mm

293750009

Unavailable

5

Black, Dart

293730006

Unavailable

6

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

7

Fuel Tank

204560256

Unavailable

8

FUEL TANK STRAP - Call your local BRP dealership

204560235

Unavailable

9

PROTECTOR PAD - Call your local BRP dealership

293830044

Unavailable

10

Hex. Screw M8 X 30

207183060

Unavailable

11

Lock Washer 8 mm, Stainless

234181601

Unavailable

12

Flat Washer 8 mm, Stainless

234082600

Unavailable

13

Loctite 271, 10 ml

293800005

Unavailable

14

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

15

Hex. Elastic Nut M8

232581600

Unavailable

16

FUEL TANK STRAP - Call your local BRP dealership

204560270

Unavailable

17

Protector Pad

202560034

Unavailable

18

NEOPRENE PAD - Call your local BRP dealership

204560191

Unavailable

19

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

20

Norma Clamp

293650077

Unavailable

21

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

22

Mount Dart

293730040

Unavailable

23

Tie-Rap 180 mm

414115200

Unavailable

24

FILLER NECK - Call your local BRP dealership

204560182

Unavailable

25

SPACER - Call your local BRP dealership This part replaces 275500801.

204560188

Unavailable

26

Phillips Screw M4 X 35

208643560

Unavailable

27

Flat Washer 4 mm

234040600

Unavailable

28

Elastic Stop Nut M4

232541600

Unavailable

29

Filler Neck Hose

204560134

Unavailable

30

Loctite 271, 10 ml

293800005

Unavailable

31

Tridon Gear Clamp

293650170

Unavailable

32

Was 275500549 Hose 1/4"

219704357

Unavailable

33

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

34

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

35

Crimp Clamp, 15.3-706R

293650047

Unavailable

36

Elbow Fitting 90°

293710099

Unavailable

37

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

38

Elastic Stop Nut 5 mm

232551200

Unavailable

39

Flat Washer 5 mm, Stainless

234052400

Unavailable

40

Gasket

293250088

Unavailable

41

C-Ring, 9 Studs

275500679

Unavailable

42

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

43

Circlip 5 mm

293370002

Unavailable

44b

Fuel Filter, Bosch

219700368

Unavailable

44

FUEL PUMP MODULE ASSY - Call your local BRP dealership | Includes 20 to 20b

204560259

Unavailable

45

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable
