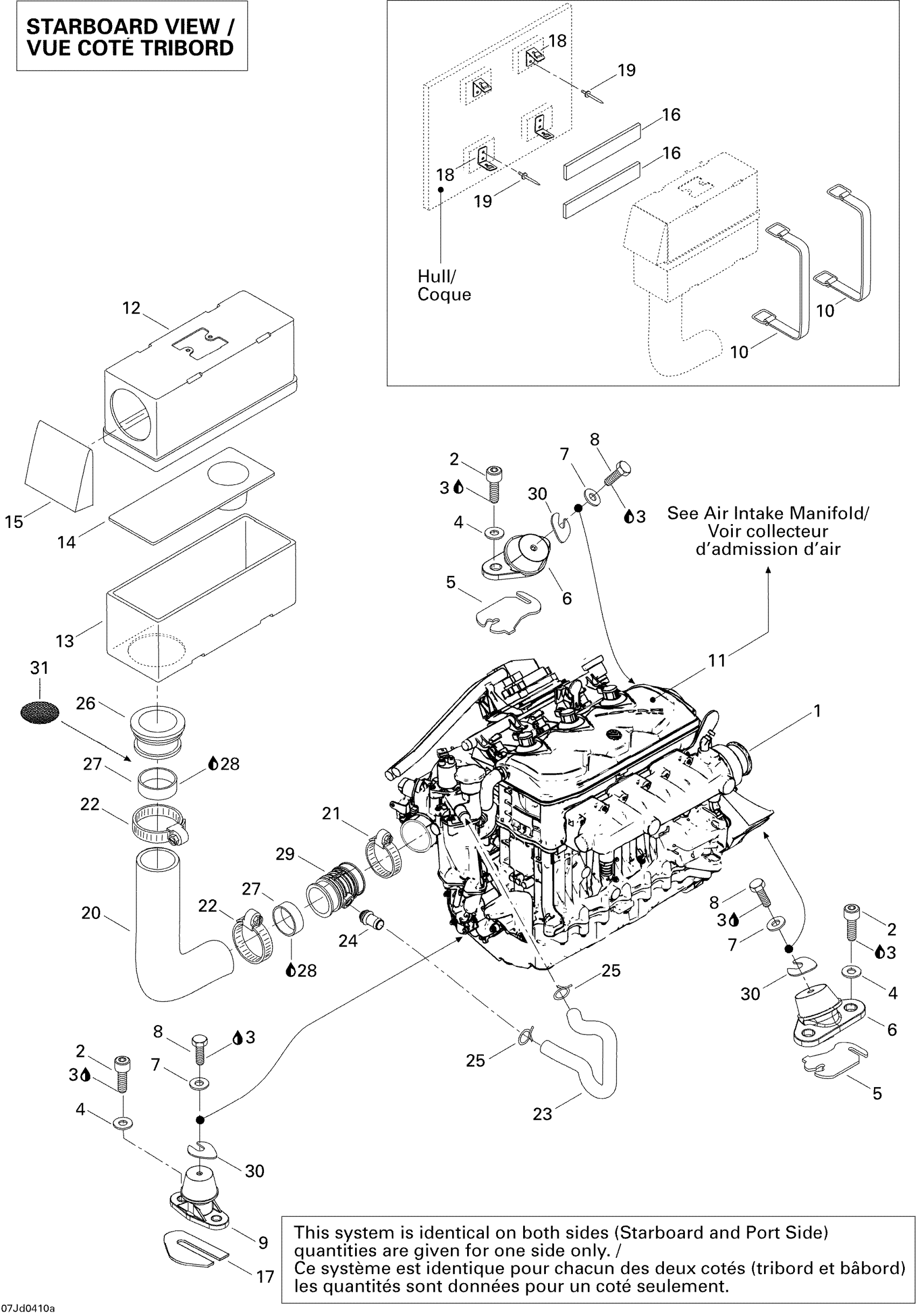

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 Engine Support And Air Intake Diagram

#

Description
Price

1

Rotax Engine 4 Strokes «1503»

270000567

Unavailable

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Loctite 243, 10 ml

293800060

$21.49

4

Cone Washer

250200018

$5.61

5

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

Shim 1.3 mm

270000762

$12.99

6

Engine Support Ass'y

270001081

$109.99

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

9

Engine Support Ass'y

270001096

$97.99

10

Retainer Strap

293850097

$11.64

11

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

12

Air Silencer, Upper

204250260

Unavailable

13

Air Silencer, Lower

204250261

Unavailable

14

Air Silencer Divider

204250269

Unavailable

15

Air Silencer Hood

204250270

Unavailable

16

Neoprene Strip

204130059

Unavailable

17

SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.

204250049

Unavailable

Shim 0.3 mm - Call your local BRP dealership

204250048

Unavailable

18

Strap Clip 90°

204060017

Unavailable

19

Pop Rivet 3/16"

293150088

$0.99

20

INTAKE HOSE - Call your local BRP dealership

204340435

Unavailable

21

TRIDON GEAR CLAMP - Call your local BRP dealership

293650061

Unavailable

22

Tridon Clamp

293650179

$11.49

23

FORMED HOSE - Call your local BRP dealership

275500497

Unavailable

24

Breather Valve

273000234

$14.49

25

Spring Clamp

293650115

$3.09

26

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

Unavailable

27

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

28

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

29

Adaptor Hose, Engine

204250276

Unavailable

30

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

31

Intake Screen

204250395

$25.99
