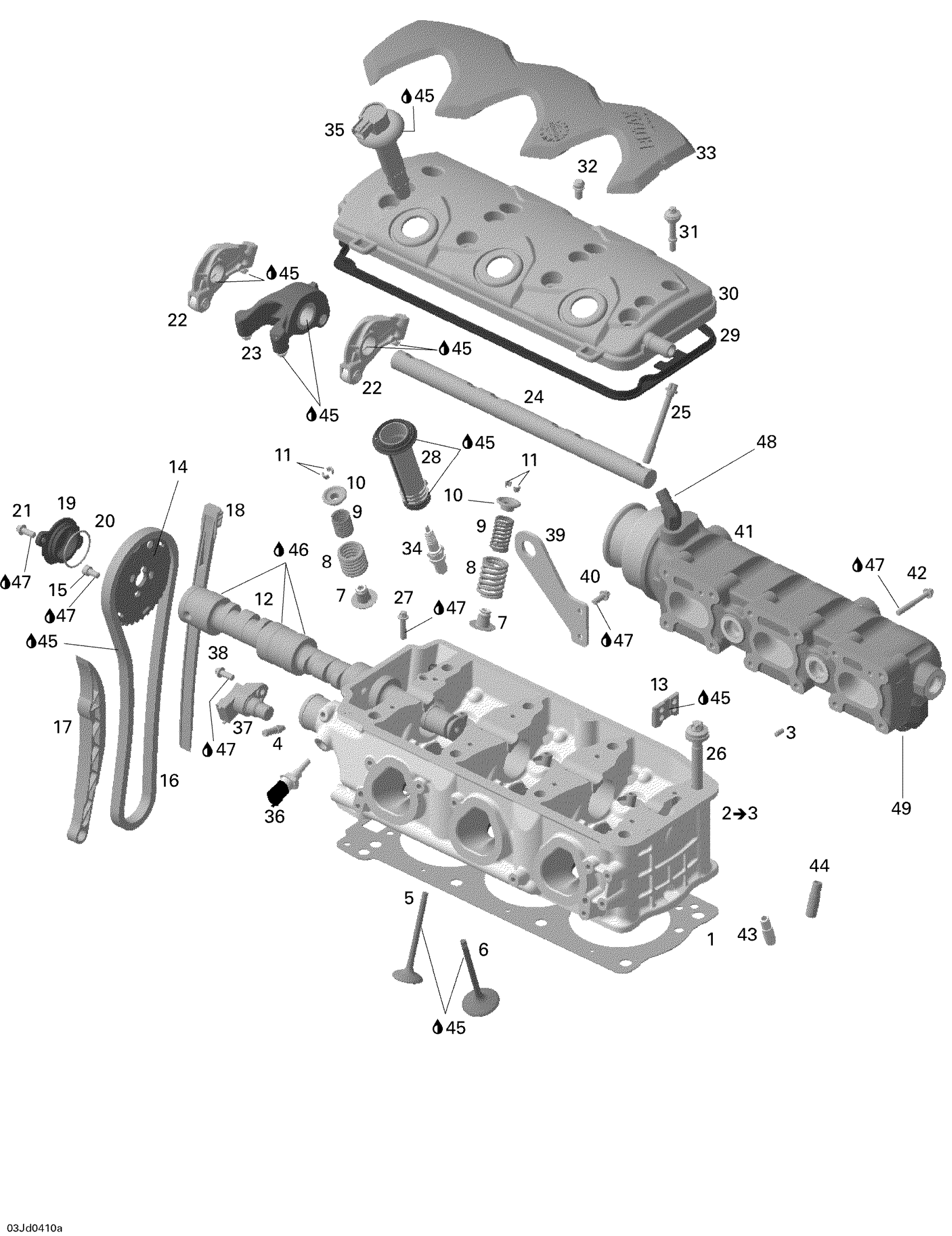

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Gasket This part replaces 420950770.

420950771

Unavailable

2

Cylinder Head Ass'y | Includes 2 to 5

420613978

Unavailable

3

Drive Pin 5 X 10

420929650

Unavailable

4

Hose Nipple

420924724

Unavailable

5

Exhaust Valve, 31 mm

420254682

Unavailable

6

Intake Valve 38MM

420253163

Unavailable

7

Valve Steam Seal

420630202

Unavailable

8

Valve Spring

420238180

Unavailable

9

Valve Spring Inside

420838280

Unavailable

10

Valve Spring Retainer

420254283

Unavailable

11

Valve Cotter

420253645

Unavailable

12

CAMSHAFT - Call your local BRP dealership

420837621

Unavailable

13

Camshaft Guide

420851694

Unavailable

14

Timing Gear, 38 Teeth

420254309

Unavailable

15

Allen Screw M6 X 12

420840032

Unavailable

16

Camshaft Chain

420898042

Unavailable

17

Chain Tension Guide

420236541

Unavailable

18

Chain Guide

420236501

Unavailable

19

CAMSHAFT COVER - Call your local BRP dealership

420660100

Unavailable

20

O-Ring

420950870

Unavailable

21

Torx Flange Screw M6 X 16

420641048

Unavailable

22

Rocker Arm, Exhaust

420254329

Unavailable

23

Rocker Arm, Inner

420254316

Unavailable

24

Rocker Arm Shaft

420854592

Unavailable

25

Torx Screw M8 X 72

420641080

Unavailable

26

Torx Flange Screw M11 X 147

420641110

Unavailable

27

Torx Flange Screw M6 X 25

420641238

Unavailable

28

Spark Plug Pipe

420851754

Unavailable

29

Valve Cover Gasket | Included in gasket kit

420950820

Unavailable

30

Valve Cover

420811580

Unavailable

31

Allen Screw M6 x 30,5

420440561

Unavailable

32

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

33

Valve Cover

420660167

Unavailable

34

Spark Plug, NGK DCP-R8E

715900637

Unavailable

35

Ignition Coil Kit This part replaces 420664020.

296000307

Unavailable

36

Temperature Sensor

278002895

Unavailable

37

Camshaft Position Sensor Ass'y

420664046

Unavailable

38

Torx Flange Screw M6 X 16

420641048

Unavailable

39

TRANSPORT BRACKET PTO - Call your local BRP dealership

420851615

Unavailable

40

Torx Flange Screw M6 X 16

420641048

Unavailable

41

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

Unavailable

42

Torx Flange Screw M6 X 45

420641198

Unavailable

43

Inlet Valve Guide

420253922

Unavailable

44

Exhaust Valve Guide

420253927

Unavailable

45

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

46

Isoflex Grease, TOPAS NB52, 50 g

293550021

Unavailable

47

Loctite 243, 10 ml

293800060

Unavailable

48

Fitting 45°

420922434

Unavailable

49

Fitting 90°

420922249

Unavailable
