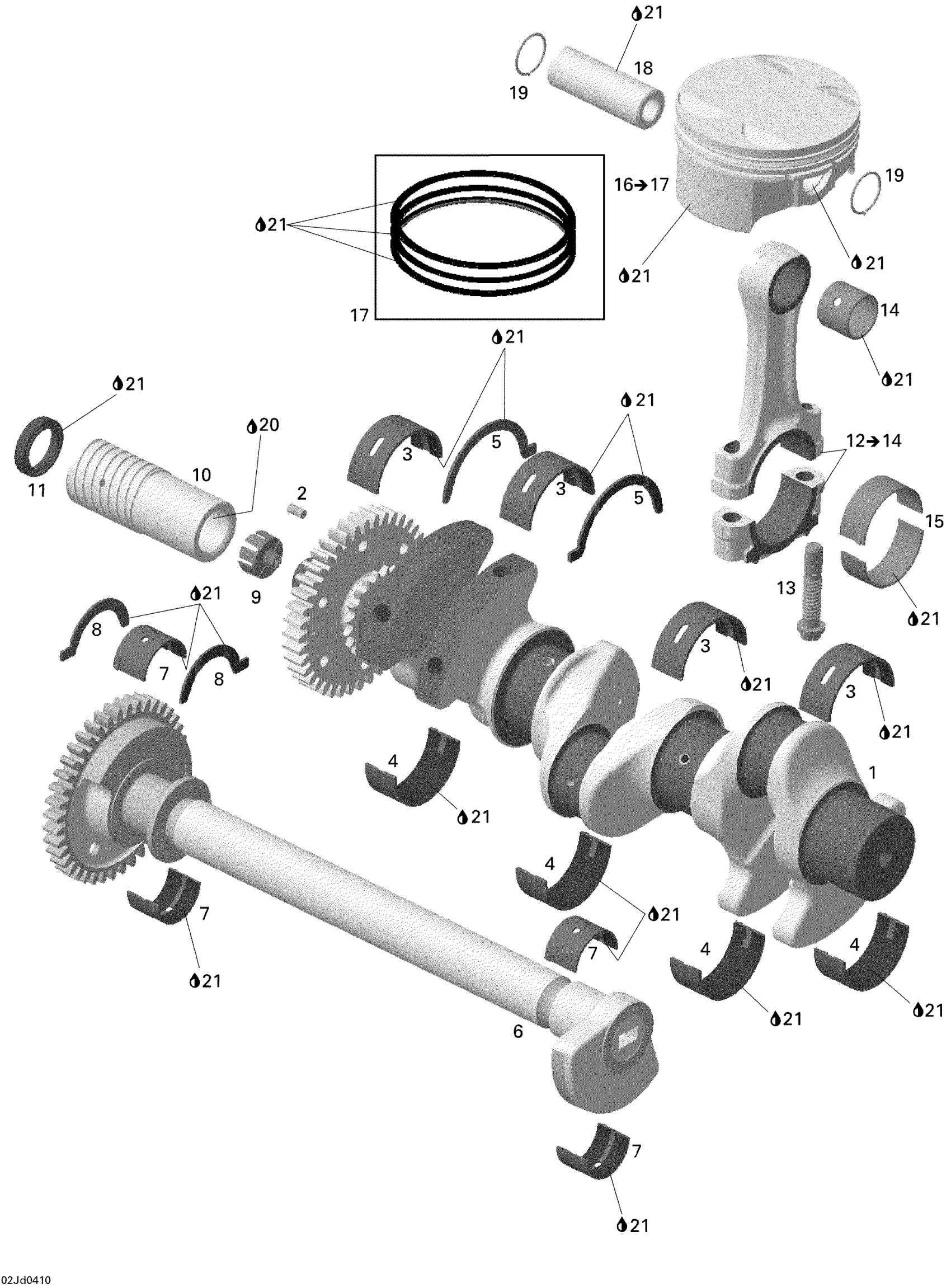

Sea-doo Speedster 200 Twin 4-TEC, 1st Edition, 2004 Crankshaft, Pistons And Balance Shaft Diagram

#

Description
Price

1

REBUILT - CRANKSHAFT 1503 02 A 05 | Includes 1 to 2 This part replaces 420819078.

421000670

Unavailable

2

Drive Pin 5 X 10

420929650

Unavailable

3

Plain Half-Bearing

420933456

Unavailable

4

Plain Half-Bearing

420933466

Unavailable

5

Half-Ring

420933475

Unavailable

6

Balance Shaft Ass'Y This part replaces 420837556.

420837559

Unavailable

7

Plain Bearing Half

420933442

Unavailable

8

Half-Ring

420933470

Unavailable

9

Stop Sleeve

420660280

Unavailable

10

Output Sleeve This part replaces 420847952.

420947770

Unavailable

11

Sealing Ring

420630551

Unavailable

12

Connecting Rod Ass'y | Includes 12 to 14 This part replaces 420917516.

420917516

Unavailable

13

Connecting rod Screw M10 X 1

420640991

Unavailable

14

Bearing Sleeve

420933510

Unavailable

15

Half-Bearing

420933523

Unavailable

16

Piston Ass'y, Standard, 99.96 mm | Traxter 500 CVT, Includes 4 To 5

420296565

Unavailable

Piston Ass'y, Oversize, 100.21 mm | Traxter 500 CVT, Includes 4 To 5

420296566

Unavailable

17

Piston Set Ring, Standard | Traxter 500 CVT

420890380

Unavailable

Piston Set Ring, Oversize | Traxter 500 CVT & 650 CVT

420890381

Unavailable

18

Piston Pin

420216250

Unavailable

19

Circlip

420845580

Unavailable

20

Sealant Loctite 648

219703000

Unavailable

21

Engine oil 5W40, 4 strokes, (12 x 1 lite

420600039

Unavailable
