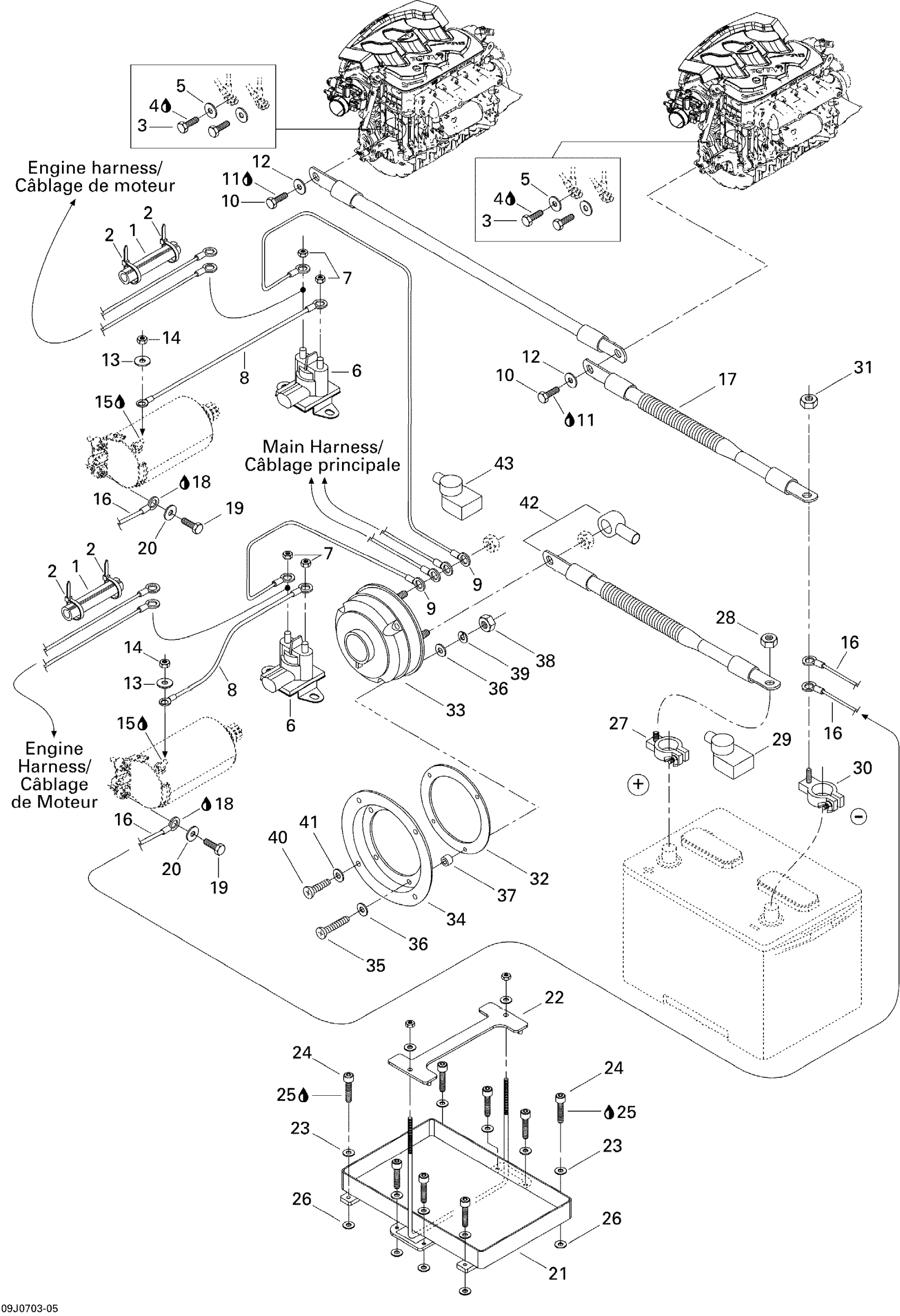

Sea-doo Speedster 200 215IC, 2007 Electrical System Diagram

#

Description
Price

1

SLIT CONDUIT - Call your local BRP dealership

204471077

Unavailable

2

Tie Wrap 142 mm

293750002

$1.25

3

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Stainless Flat Washer M6

234061600

$0.33

6

Starter Relay

278003012

$42.49

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

RED CABLE - Call your local BRP dealership

204470798

Unavailable

8

Red Cable

204470852

Unavailable

9

RED CABLE - Call your local BRP dealership | Starboard

204470838

Unavailable

9

RED CABLE - Call your local BRP dealership

204470853

Unavailable

10

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Flat Washer M6, Stainless

234062600

$0.77

13

Stainless Flat Washer M6

234061600

$0.33

14

Hex. Elastic Stop Nut M6

232561600

$1.15

15

Not Available As Spare Part - Friction Washer

Unavailable

16

GROUND CABLE, PORT SIDE - Call your local BRP dealership

204470854

Unavailable

16

GROUND CABLE, STARBOARD - Call your local BRP dealership

204470840

Unavailable

17

GROUND CABLE - Call your local BRP dealership

204470839

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

20

Stainless Flat Washer M6

234061600

$0.33

21

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

22

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

23

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

24

Socket Head Screw M6 X 25

205062560

$1.69

25

Loctite 243, 10 ml

293800060

$21.49

26

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

27

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

28

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

29

RED BOOT - Call your local BRP dealership

204470269

Unavailable

30

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

31

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

32

SWITCH ADAPTOR - Call your local BRP dealership

204470813

Unavailable

33

BATTERY SWITCH - Call your local BRP dealership

204470814

Unavailable

34

SWITCH SUPPORT - Call your local BRP dealership

204470259

Unavailable

35

SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership

205455060

Unavailable

36

Flat Washer M5, Stainless

234051600

$0.77

37

NYLON SPACER - Call your local BRP dealership

204470330

Unavailable

38

Hex. Nut M5

232051600

$1.15

39

Helical Lock Washer M5

234151601

$1.15

40

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

41

Flat Washer 4 mm, Stainless

234041600

$1.15

42

POSITIVE SWITCH CABLE - Call your local BRP dealership

204470250

Unavailable

43

RED BOOT - Call your local BRP dealership

204470269

Unavailable
