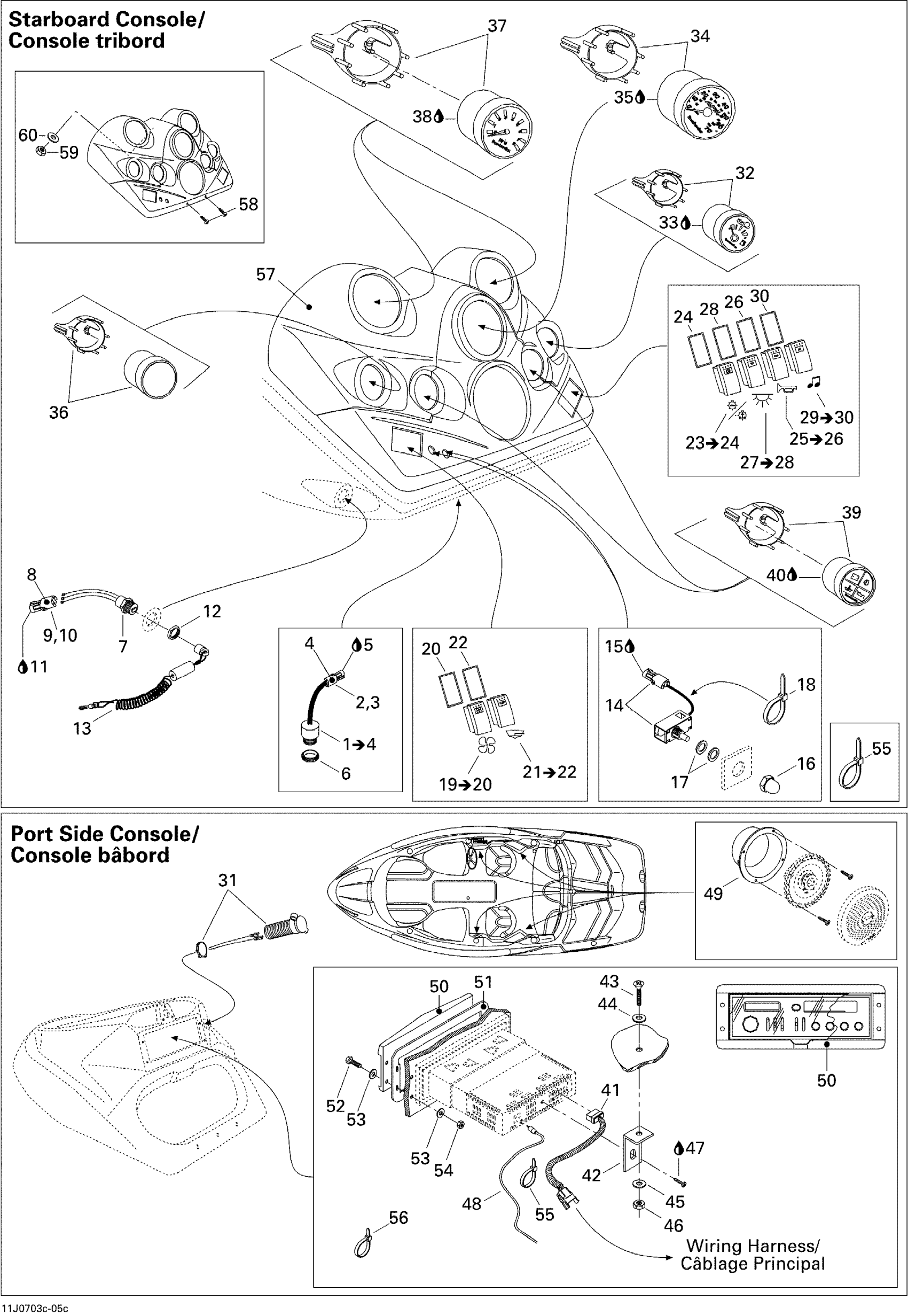

Sea-doo Speedster 200 155NA, 2007 10- Electrical Accessories 3 Diagram

#

Description
Price

1

Buzzer Ass'y

204470913

$92.99

2

Male Terminal | XT Models

278000222

$3.19

3

Wire Seal

278000218

$4.39

4

Female Housing, 2 Circuits

278000217

$9.59

5

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

6

Buzzer Nut

278000707

Unavailable

7

Safety Switch This part replaces 278002325.

278002773

$114.99

8

Male Housing, 3 Circuits

278000273

$9.59

9

Wire Seal

278000218

$4.39

10

Female Terminal

278000223

$3.19

11

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

12

Safety Nut (DESS Switch)

278002963

$3.28

13

Safety Lanyard

204471206

$56.99

14

IGNITION SWITCH - Call your local BRP dealership

278000621

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

17

FLAT WASHER - Call your local BRP dealership

204100027

Unavailable

18

Tie Wrap 142 mm

293750002

$1.25

19

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

20

Gasket

204470132

Unavailable

21

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

22

Gasket

204470132

Unavailable

23

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

24

Gasket

204470132

Unavailable

25

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

26

Gasket

204470132

Unavailable

27

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

28

Gasket

204470132

Unavailable

29

STEREO SWITCH - Call your local BRP dealership | Includes 28 to 29

204471116

Unavailable

30

Gasket

204470132

Unavailable

31

DC Outlet

710001248

$37.99

32

FUEL GAUGE - Call your local BRP dealership

204471128

Unavailable

33

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

34

Speed Gauge

204470957

$479.99

35

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

36

GAUGE CAP - Call your local BRP dealership

204470969

Unavailable

37

TACHOMETER GAUGE - Call your local BRP dealership

204470958

$409.99

38

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

39

ENGINE WARNING GAUGE - Call your local BRP dealership

204471130

Unavailable

40

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

41

Stereo Adaptor Harness

204470930

Unavailable

42

RADIO SUPPORT - Call your local BRP dealership

204470837

Unavailable

43

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208662060

Unavailable

44

Stainless Flat Washer M6

234061600

$0.33

45

Flat Washer M6, Stainless

234062600

$0.77

46

Hex. Elastic Stop Nut M6

232561600

$1.15

47

Loctite 243, 10 ml

293800060

$21.49

48

Antenna

204470931

Unavailable

49

SPEAKER COVER ASS'Y - Call your local BRP dealership

204470982

Unavailable

50

Radio Cover

204470266

Unavailable

51

RADIO COVER GASKET - Call your local BRP dealership

204470257

Unavailable

52

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

53

Flat Washer 4 mm

234040600

$0.55

54

Elastic Stop Nut M4

232541600

$1.15

55

Tie Wrap 94 mm | 4X4

293750001

$1.03

56

Tie Wrap 142 mm

293750002

$1.25

57

Fascia

204471148

Unavailable

58

SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership

202000203

Unavailable

59

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

60

Flat Washer 8 mm, Stainless

234082600

$2.43
