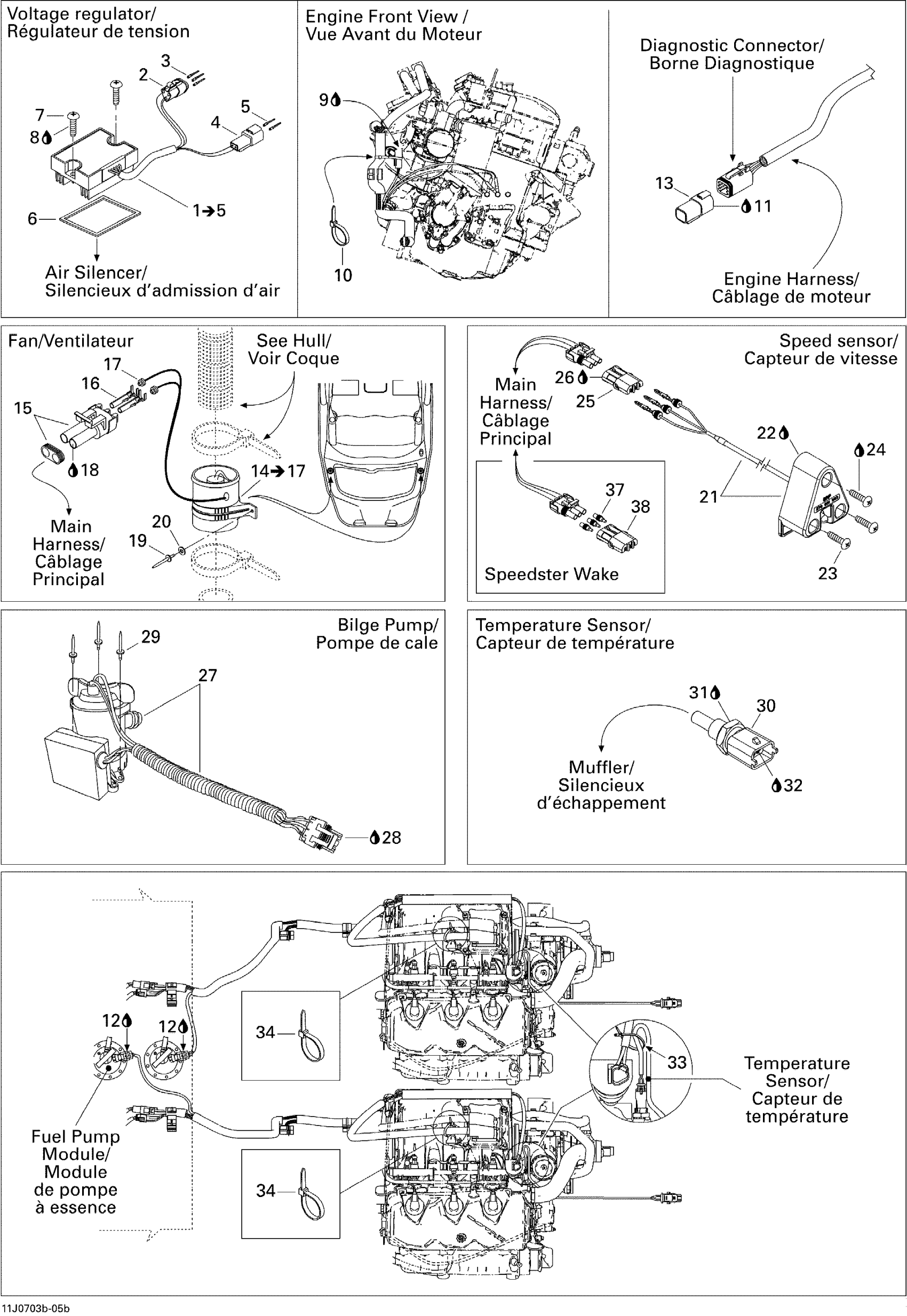

Sea-doo Speedster 200 155NA, 2007 Electrical Accessories 2 Diagram

#

Description
Price

1

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

Unavailable

2

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

3

Female Terminal

278000632

$1.69

4

Male Housing, 2 Circuits

409206900

$8.72

5

Female Terminal

515175567

$5.85

6

SEAL - Call your local BRP dealership

293250123

Unavailable

7

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

8

Loctite 271, 10 ml

293800005

$20.77

9

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

10

Tie-Rap 180 mm

414115200

$0.09

11

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

12

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

13

Diagnostic Connector

278002704

$15.57

14

Fan Ass'y | Includes 44 to 47

204470108

$114.37

15

Male Connector, 2 Circuits

278000220

$11.02

16

Female Terminal

278000223

$2.55

17

Wire Seal

278000218

$3.48

18

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

19

Pop Rivet 3/16"

293150008

$0.40

20

Flat Washer 5 mm, Stainless

234052600

$0.64

21

Speed Sensor

278001993

$143.62

22

Silicone Sealant 51388, 300 ml

296000309

$35.72

23

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

24

Silicone Sealant 51388, 300 ml

296000309

$35.72

25

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

26

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

27

Bilge Pump With Screen

204471176

Unavailable

28

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

29

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

30

Temperature Sensor

278002895

$31.82

31

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

32

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

33

Tie Wrap 142 mm

293750002

$0.88

34

Tie Wrap 142 mm

293750002

$0.88
