- Speedster 200 155NA, 2007
10- Electrical Accessories 1

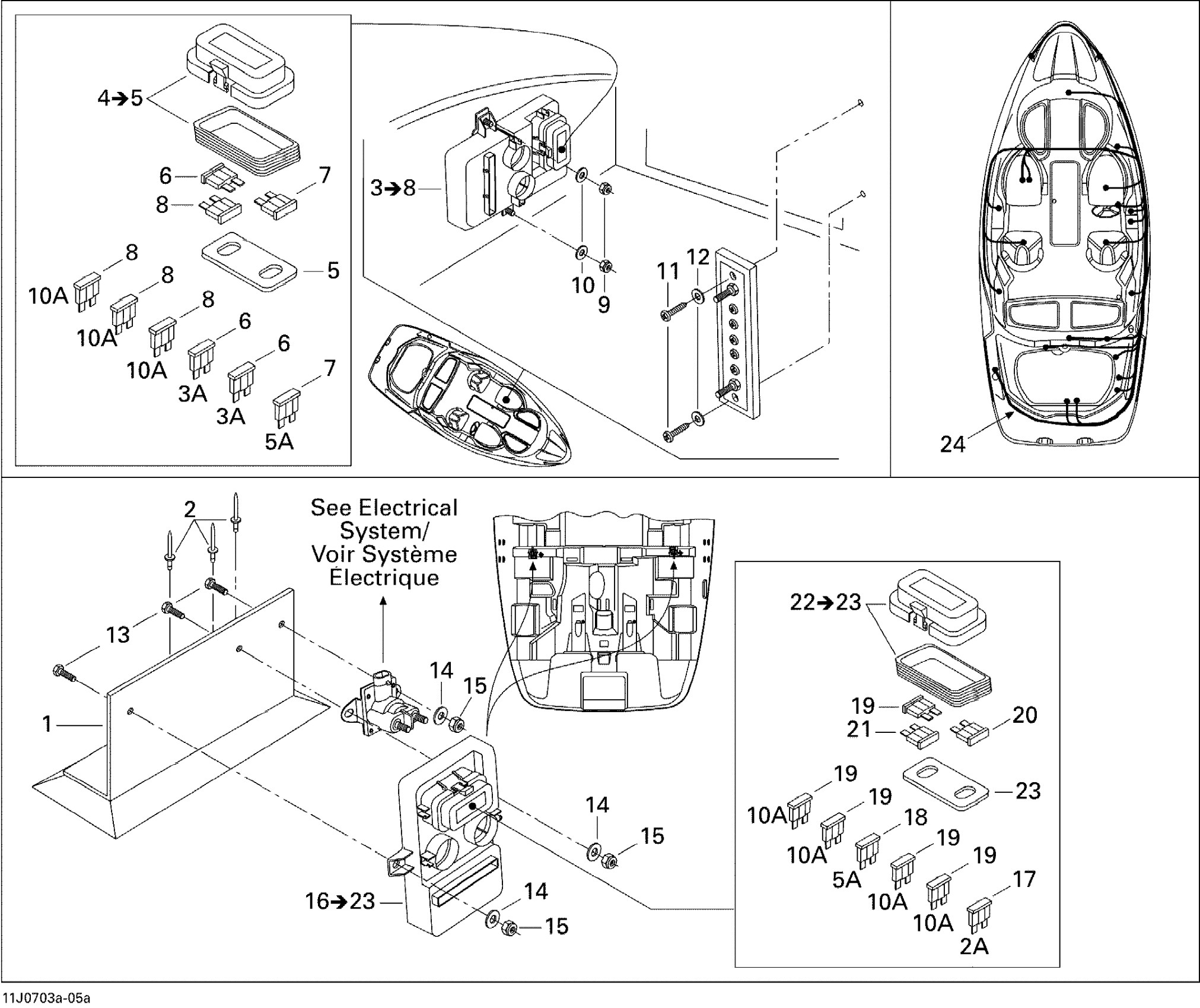

Sea-doo Speedster 200 155NA, 2007 10- Electrical Accessories 1 Diagram
#
Description
Price
1
BRACKET - Call your local BRP dealership
204471071
Unavailable
2
Avdel Rivet 3/16"
293150037
$0.56
3
TWIN ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6, North America
204471262
Unavailable
4
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
5
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
6
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
7
Fuse, 5 Amperes | CE
278000344
$3.28
8
Fuse, 10 Amperes | North America
278001197
$2.21
9
Hex. Elastic Stop Nut M6
232561600
$1.15
10
Flat Washer M6, Stainless
234062600
$0.77
11
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
12
Flat Washer 4 mm, Stainless
234041600
$1.15
13
Hex. Forming Screw M6 X 20
207162060
$1.29
14
Flat Washer M6, Stainless
234062600
$0.77
15
Hex. Elastic Stop Nut M6
232561600
$1.15
16
FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24
204470770
Unavailable
17
FUSE, 2 AMPERES - Call your local BRP dealership
278001442
Unavailable
18
Fuse, 5 Amperes | CE
278000344
$3.28
19
Fuse, 10 Amperes | North America
278001197
$2.21
20
Fuse, 20 Amperes
409003900
$3.28
21
Fuse, 30 Amperes
410917200
$3.28
22
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
23
COVER BUSHING - Call your local BRP dealership | North America
278001719
Unavailable
24
Main Harness (Accessory Harness)
204471109
Unavailable
