- Speedster 1600, 240 ER, 2004
10- Electrical Accessories 2

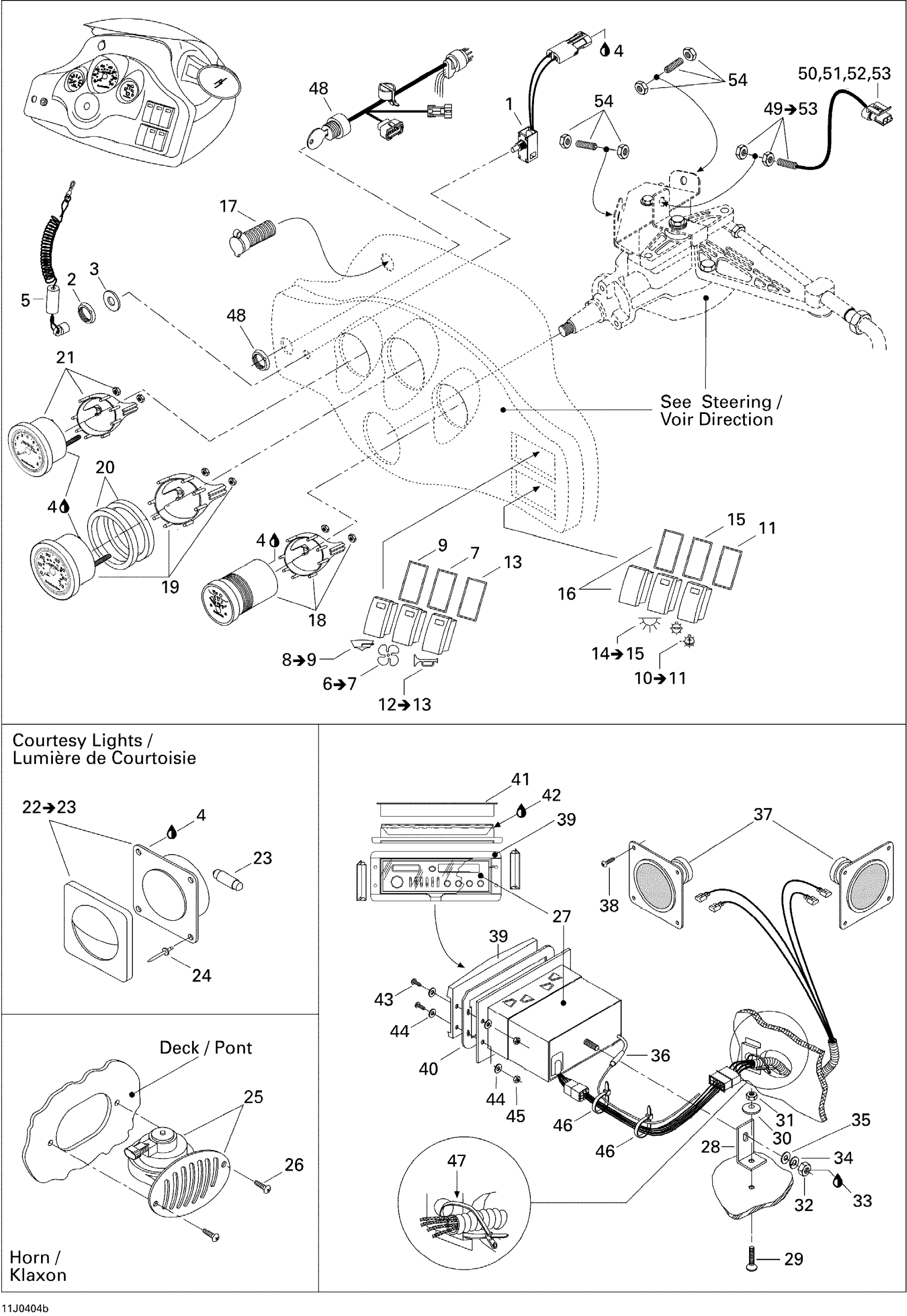

Sea-doo Speedster 1600, 240 ER, 2004 10- Electrical Accessories 2 Diagram
#
1
SAFETY SWITCH ASS'Y - Call your local BRP dealership | Includes 10 to 13
204470867
Unavailable
2
Safety Switch Nut
278000099
Unavailable
3
FLAT WASHER - Call your local BRP dealership
204100027
Unavailable
4
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
5
Safety Lanyard
278001431
$47.49
6
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
7
Gasket
204470132
Unavailable
8
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
9
Gasket
204470132
Unavailable
10
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
11
Gasket
204470132
Unavailable
12
HORN SWITCH ASS'Y - Call your local BRP dealership
204470101
$49.99
13
Gasket
204470132
Unavailable
14
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470102
Unavailable
15
Gasket
204470132
Unavailable
16
SWITCH PLUG - Call your local BRP dealership
204470596
Unavailable
17
DC Outlet
710001248
$37.99
18
Oil/Fuel Gauge
204470806
Unavailable
19
Speedometer Gauge
204470805
Unavailable
20
Abs Spacer
204470732
Unavailable
21
Tachometer Gauge
204470807
Unavailable
22
Courtesy Light Ass'y | Includes 29 to 30
204470026
$47.49
23
BULB - Call your local BRP dealership
204470081
Unavailable
24
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
25
HORN - Call your local BRP dealership
204470801
Unavailable
26
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
27
Compact Disk Radio
204470869
Unavailable
28
RADIO SUPPORT - Call your local BRP dealership
204470837
Unavailable
29
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership
208462060
Unavailable
30
Flat Washer M6, Stainless
234062600
$0.77
31
Hex. Elastic Stop Nut M6
232561600
$1.15
32
Hex. Nut M5
232051600
$1.15
33
Loctite 243, 10 ml
293800060
$21.49
34
Helical Lock Washer M5
234151601
$1.15
35
Flat Washer 5 mm, Stainless
234052600
$0.77
36
Antenna
204470380
Unavailable
37
Speaker
204470378
Unavailable
38
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
39
Radio Cover
204470266
Unavailable
40
RADIO COVER GASKET - Call your local BRP dealership
204470257
Unavailable
41
Radio Splashguard
204470270
Unavailable
42
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
43
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership
208642560
Unavailable
44
Flat Washer 4 mm
234040600
$0.55
45
Elastic Stop Nut M4
232541600
$1.15
46
Tie Wrap 94 mm | 4X4
293750001
$1.03
47
Tie Wrap 142 mm
293750002
$1.25
48
Instrument Harness, Mercury
204470800
Unavailable
49
LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50
204470631
Unavailable
50
Female Terminal Housing
204470634
Unavailable
51
Terminal Support
204470635
Unavailable
52
Wire Seal
204470641
Unavailable
53
Female Terminal
278001481
$3.49
54
Low Speed Control Actuator
204470632
$42.99
