- Speedster 1600, 240 ER, 2004
10- Electrical Accessories 1

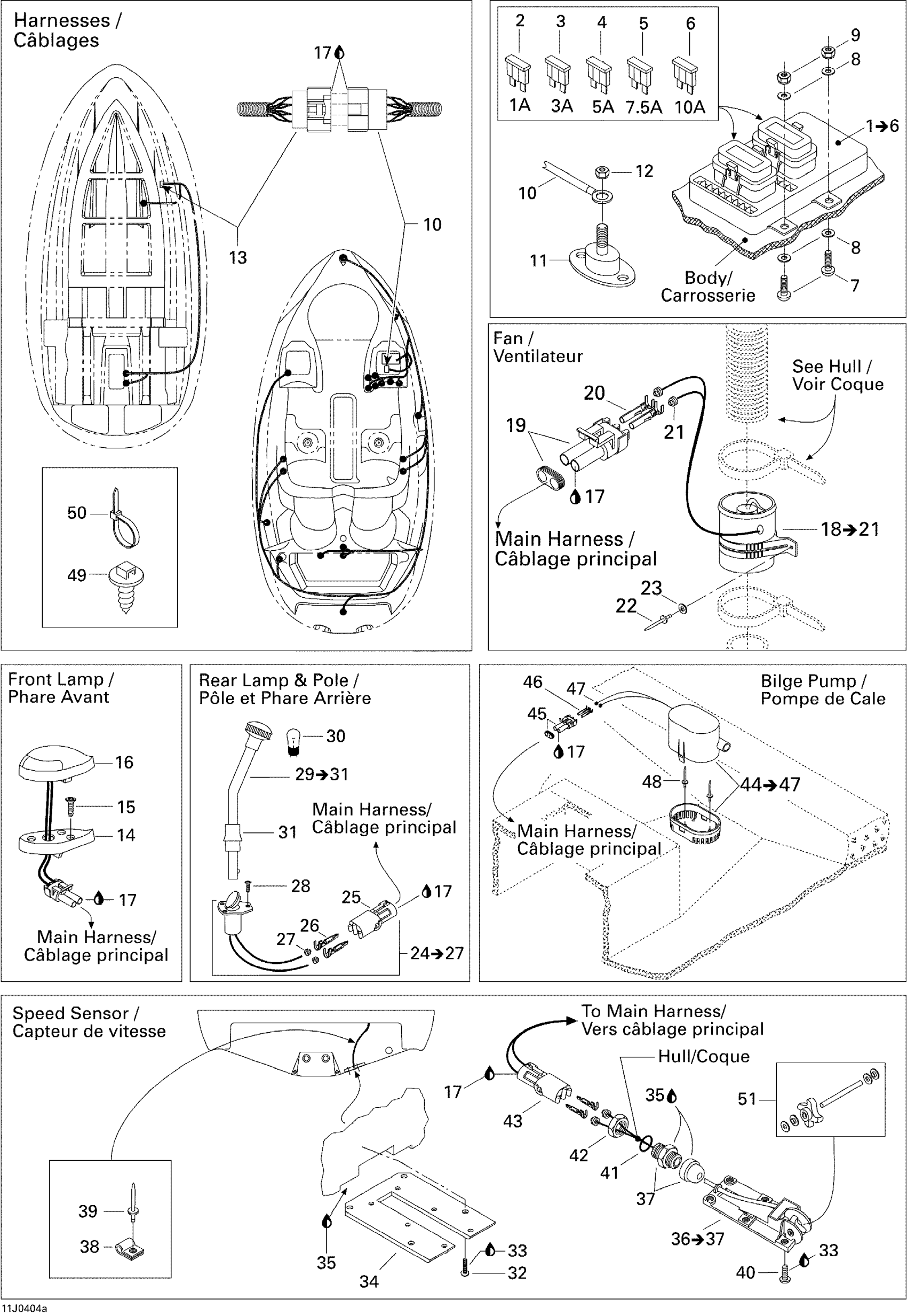

Sea-doo Speedster 1600, 240 ER, 2004 10- Electrical Accessories 1 Diagram
#
1
FUSE BLOCK - Call your local BRP dealership
204470815
Unavailable
2
FUSE, 1 AMPERE - Call your local BRP dealership
409012800
Unavailable
3
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
4
Fuse, 5 Amperes | CE
278000344
$3.28
5
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
6
Fuse, 10 Amperes | North America
278001197
$2.21
7
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
8
Flat Washer M6, Stainless
234062600
$0.77
9
Hex. Elastic Stop Nut M6
232561600
$1.15
10
Main Harness
204470831
Unavailable
11
Ground Post
204470715
Unavailable
12
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
13
Instrument Harness, Mercury
204470800
Unavailable
14
FRONT LAMP SUPPORT - Call your local BRP dealership
204470072
Unavailable
15
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
16
Front Lamp
204470311
Unavailable
17
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
18
Fan Ass'y | Includes 44 to 47
204470108
$144.99
19
Male Connector, 2 Circuits
278000220
$15.49
20
Female Terminal
278000223
$3.19
21
Wire Seal
278000218
$4.39
22
Pop Rivet 3/16"
293150008
$0.50
23
Flat Washer 5 mm, Stainless
234052600
$0.77
24
Rear Light Base Ass'y | Includes 33 to 36
278000674
Unavailable
25
Female Housing, 2 Circuits
278000217
$9.59
26
Male Terminal | XT Models
278000222
$3.19
27
Wire Seal
278000218
$4.39
28
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
29
Rear Lamp Pole | Includes 17 to 19, Models Without Tower
204470022
Unavailable
30
Bulb
204470053
Unavailable
31
COLLAR - Call your local BRP dealership
204470350
Unavailable
32
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
33
Loctite 243, 10 ml
293800060
$21.49
34
Sensor Support
204470538
Unavailable
35
Silicone Sealant 51388, 300 ml
296000309
$36.99
36
SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.
278001998
Unavailable
37
ELECTRIC CONNECTION - Call your local BRP dealership
293710031
Unavailable
38
Cable Clamp 3/16”
204100026
Unavailable
39
Pop Rivet 3/16"
293150088
$0.99
40
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208551060
Unavailable
41
SEAL WASHER - Call your local BRP dealership
278000416
Unavailable
42
LOCKING NUT - Call your local BRP dealership
293710032
Unavailable
43
Female Housing, 2 Circuits
278000217
$9.59
44
Bilge Pump
204471431
Unavailable
45
Male Connector, 2 Circuits
278000220
$15.49
46
Female Terminal
278000223
$3.19
47
Wire Seal
278000218
$4.39
48
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
49
Mount Dart
293730040
$1.04
50
Tie-Rap 180 mm
414115200
$0.11
51
Paddle Wheel Kit
295500108
Unavailable
