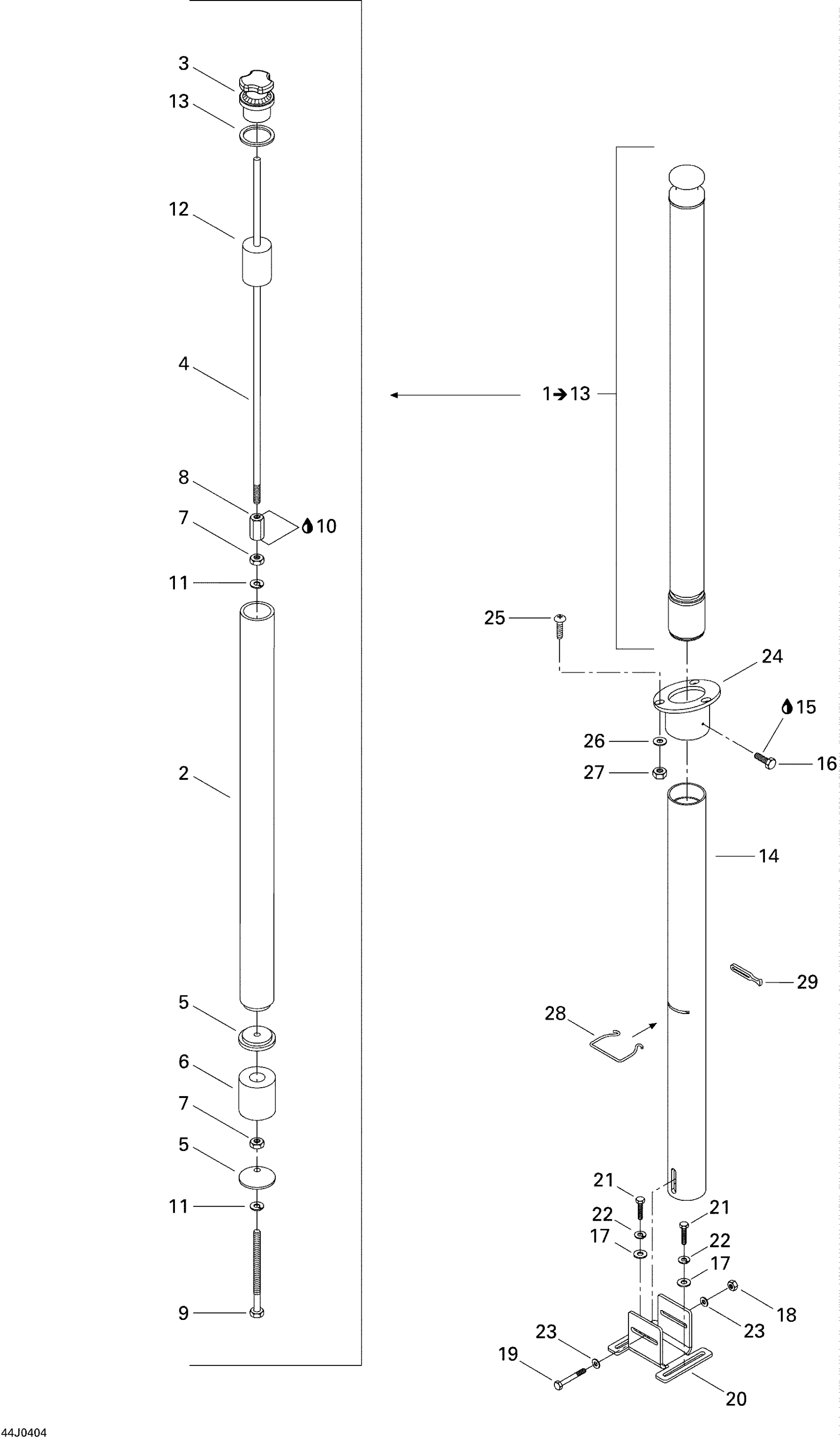

Sea-doo Speedster 1600, 240 ER, 2004 Ski shaft Diagram
#
Description
Price
1
Ski Pole Ass'y | Includes 1 to 13
204070337
Unavailable
2
INNER POST - Call your local BRP dealership
204070338
Unavailable
3
Ski Cap
204070440
Unavailable
4
Threaded Rod
204070340
Unavailable
5
Compression Disk
204070341
Unavailable
6
Compression Boot
204070376
Unavailable
7
Hex. Nut M6
232061600
Unavailable
8
Hex. Coupling Nut M6 X 18
204070414
Unavailable
9
Hex. Screw M6 X 90
207169060
Unavailable
10
Loctite 271, 10 ml
293800005
Unavailable
11
External Serrated Lock Washer 6 mm
234461608
Unavailable
12
Rod Holder
204070419
Unavailable
13
Sliding Ring
204070420
Unavailable
14
Outer Post Ass'y
204070448
Unavailable
15
Loctite 271, 10 ml
293800005
Unavailable
16
Hex. Screw M4 X 16 | Europe
207141660
Unavailable
17
Flat Washer 8 mm, Stainless
234082600
Unavailable
18
Hex. Elastic Nut M8
232581600
Unavailable
19
HEX. SCREW M8 X 90 - Call your local BRP dealership
207089060
Unavailable
20
Post Base
204070345
Unavailable
21
Hex. Screw M8 X 30
207183060
Unavailable
22
Lock Washer 8 mm, Stainless
234181601
Unavailable
23
Flat Washer 8 mm, Stainless
234082600
Unavailable
24
Collar Ass'y
204070344
Unavailable
25
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
26
Flat Washer M6, Stainless
234062600
Unavailable
27
Hex. Elastic Stop Nut M6
232561600
Unavailable
28
Ski Pole Lock
204070449
Unavailable
29
Windshield Latch
570023800
Unavailable
