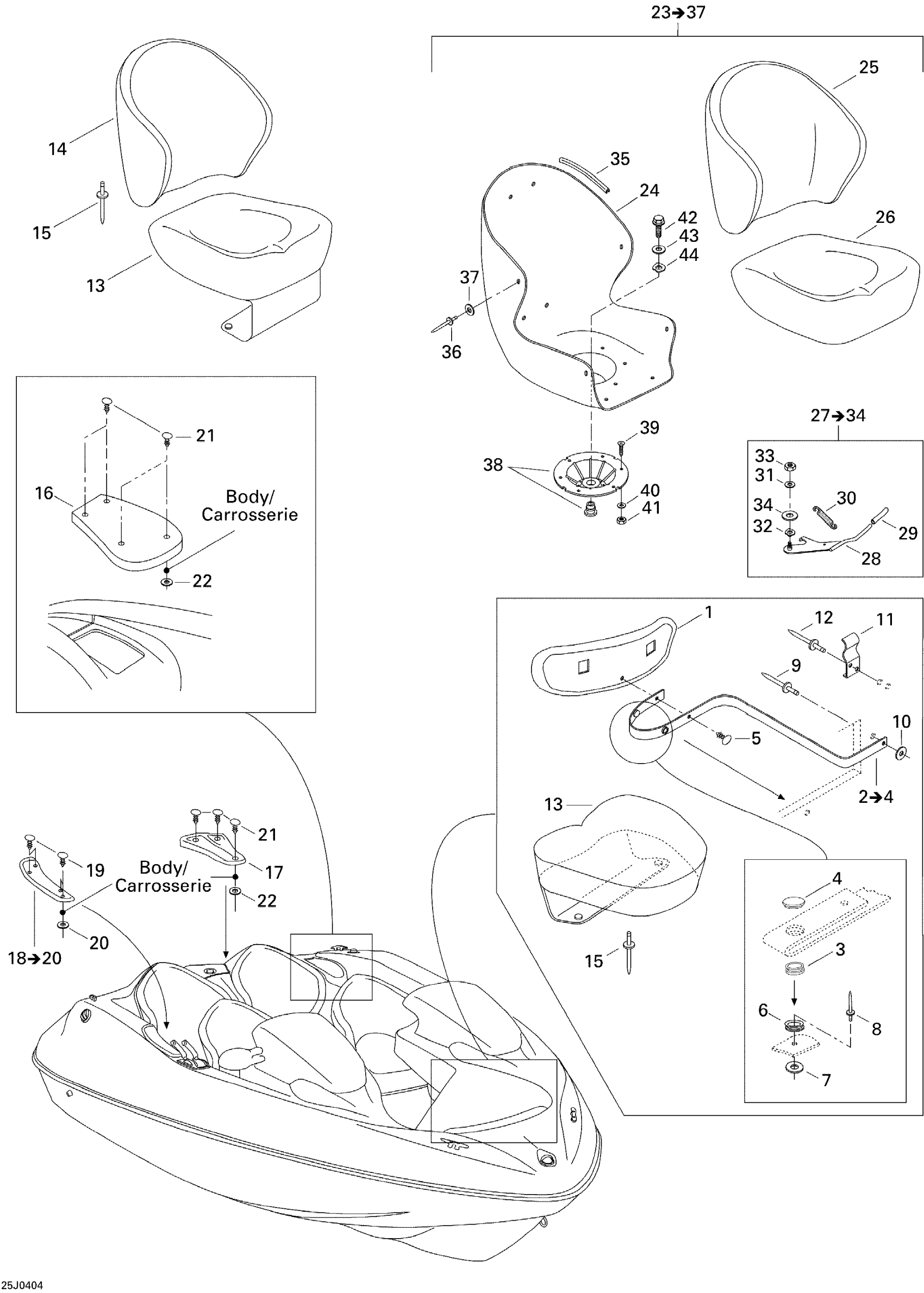

Sea-doo Speedster 1600, 240 ER, 2004 Seat Diagram
#
1
Front Backrest Ass'y, Metallic Silver
204612492
Unavailable
2
Retaining Strap Ass'y | Includes 2 to 4
204611446
Unavailable
3
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
4
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
5
Black, Dart
293730006
Unavailable
6
BOTTOM SNAP - Call your local BRP dealership
204000084
Unavailable
7
Flat Washer M3, Stainless
234032600
Unavailable
8
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
9
Pop Rivet 3/16"
293150043
Unavailable
10
Flat Washer 5 mm, Stainless
234052600
Unavailable
11
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
12
Pop Rivet 3/16"
293150043
Unavailable
13
Seat Cushion , Metallic Silver
204612498
Unavailable
14
Backrest Cushion (Metallic Silver)
295501060
Unavailable
15
Pop Rivet 3/16"
293150013
Unavailable
16
RH Armrest Ass'y, Orange
204612518
Unavailable
16
LH Armrest Ass'y, Orange
204612519
Unavailable
17
Center Armrest, Metallic Silver
204612521
Unavailable
18
Orange, Driver Armrest | Includes 18 to 20
204612523
Unavailable
19
Black, Dart
293730006
Unavailable
20
Flat Washer M6, Stainless
234062600
Unavailable
21
Black, Dart
293730006
Unavailable
22
Flat Washer M6, Stainless
234062600
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
Seat Base
204611146
Unavailable
25
Backrest Cushion, Metallic Silver
204612526
Unavailable
26
Seat Cushion , Metallic Silver
204612498
Unavailable
27
Lever Arm Ass’y
204610523
Unavailable
28
Lever Arm
204610524
Unavailable
29
Handle
204610348
Unavailable
30
SPRING - Call your local BRP dealership
204610349
Unavailable
31
Stainless Flat Washer M6
234061600
Unavailable
32
Washer
211200059
Unavailable
33
Hex. Elastic Stop Nut M6
232561600
Unavailable
34
Not Available As Spare Part - Friction Washer
Unavailable
35
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
36
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.
293150201
Unavailable
37
FLAT WASHER #10 - Call your local BRP dealership | Except STD
204100059
Unavailable
38
SWIVEL PLATE - Call your local BRP dealership
204610513
Unavailable
39
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
40
Flat Washer M6, Stainless
234062600
Unavailable
41
Hex. Elastic Stop Nut M6
232561600
Unavailable
42
SCREW-SHOULDER - Call your local BRP dealership
211000172
Unavailable
43
FLAT WASHER - Call your local BRP dealership
211200058
Unavailable
44
WASHER - Call your local BRP dealership
293200056
Unavailable
