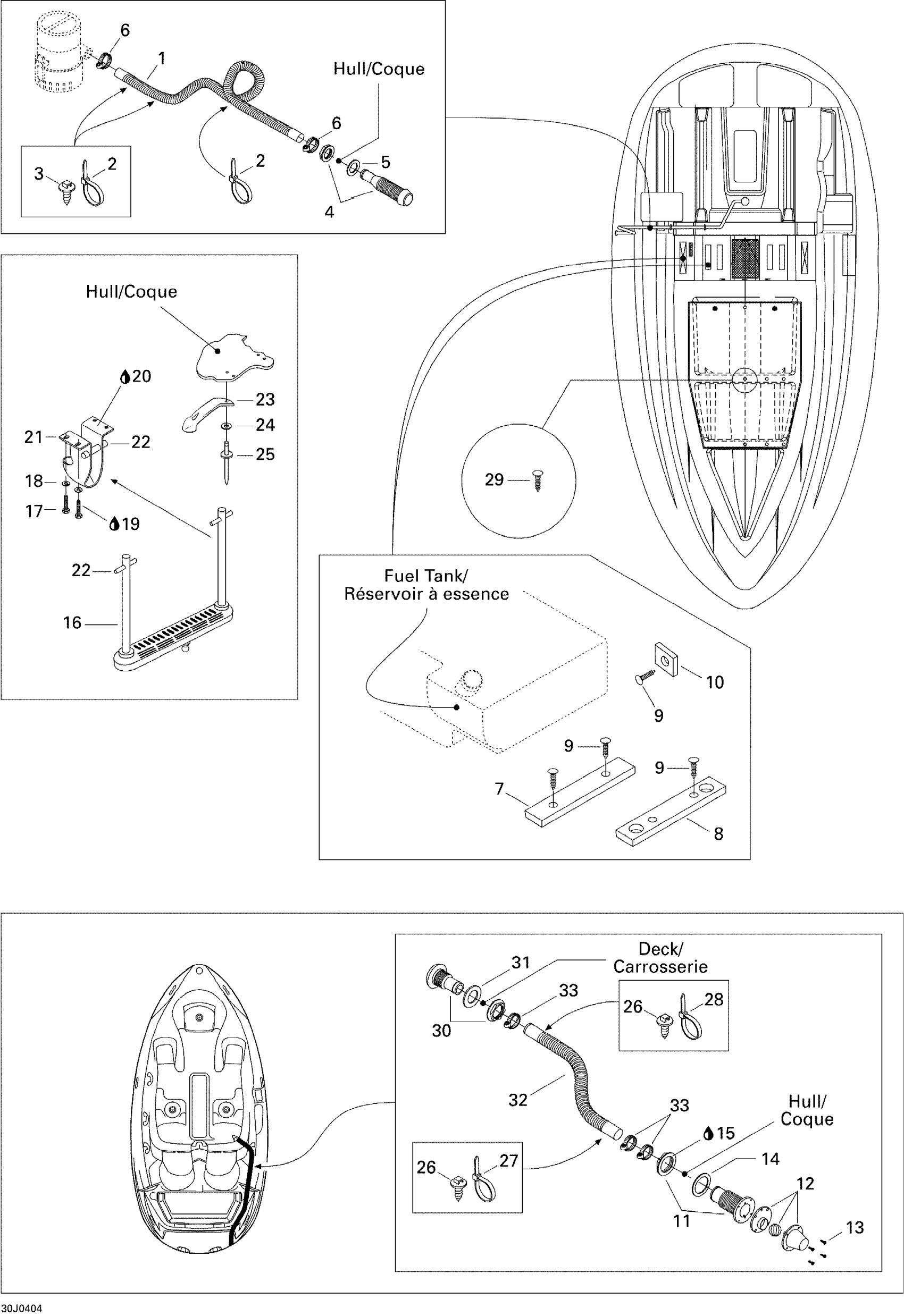

Sea-doo Speedster 1600, 240 ER, 2004 Lower Hull And Ladder Diagram
#
Description
Price
1
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
2
Tie-Rap 180 mm
414115200
Unavailable
3
Black, Dart
293730006
Unavailable
4
Fitting
293710162
Unavailable
5
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
6
Tridon Clamp
293650016
Unavailable
7
MUFFLER RUBBER PAD - Call your local BRP dealership
204060702
Unavailable
8
Fuel Tank Rubber Pad
204060703
Unavailable
9
Black, Dart
293730006
Unavailable
10
RUBBER PAD - Call your local BRP dealership
204060684
Unavailable
11
THRU HULL FITTING - Call your local BRP dealership
204060071
Unavailable
12
SCUPPER VALVE - Call your local BRP dealership
204060188
Unavailable
13
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown
211000180
Unavailable
14
GASKET - Call your local BRP dealership
292800106
Unavailable
15
Silicone Sealant 51388, 300 ml
296000309
Unavailable
16
LADDER - Call your local BRP dealership
204060187
Unavailable
17
Hex. Screw M6 X 35
207163560
Unavailable
18
Lock Washer Helical M6
234161601
Unavailable
19
Loctite 243, 10 ml
293800060
Unavailable
20
Silicone Sealant 51388, 300 ml
296000309
Unavailable
21
U-BRACKET - Call your local BRP dealership
204060141
Unavailable
22
ROLL PIN M8 X 55 - Call your local BRP dealership
211300021
Unavailable
23
Hood Latch
570027100
Unavailable
24
Pop Rivet 3/16"
293150013
Unavailable
25
Flat Washer 5 mm, Stainless
234052600
Unavailable
26
Mount Dart
293730040
Unavailable
27
Tie-Rap 180 mm
414115200
Unavailable
28
Tie Wrap 368 mm
293750008
Unavailable
29
Black, Dart
293730006
Unavailable
30
FITTING - Call your local BRP dealership
293710060
Unavailable
31
GASKET - Call your local BRP dealership
292800106
Unavailable
32
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
33
Norma Clamp
293650074
Unavailable
