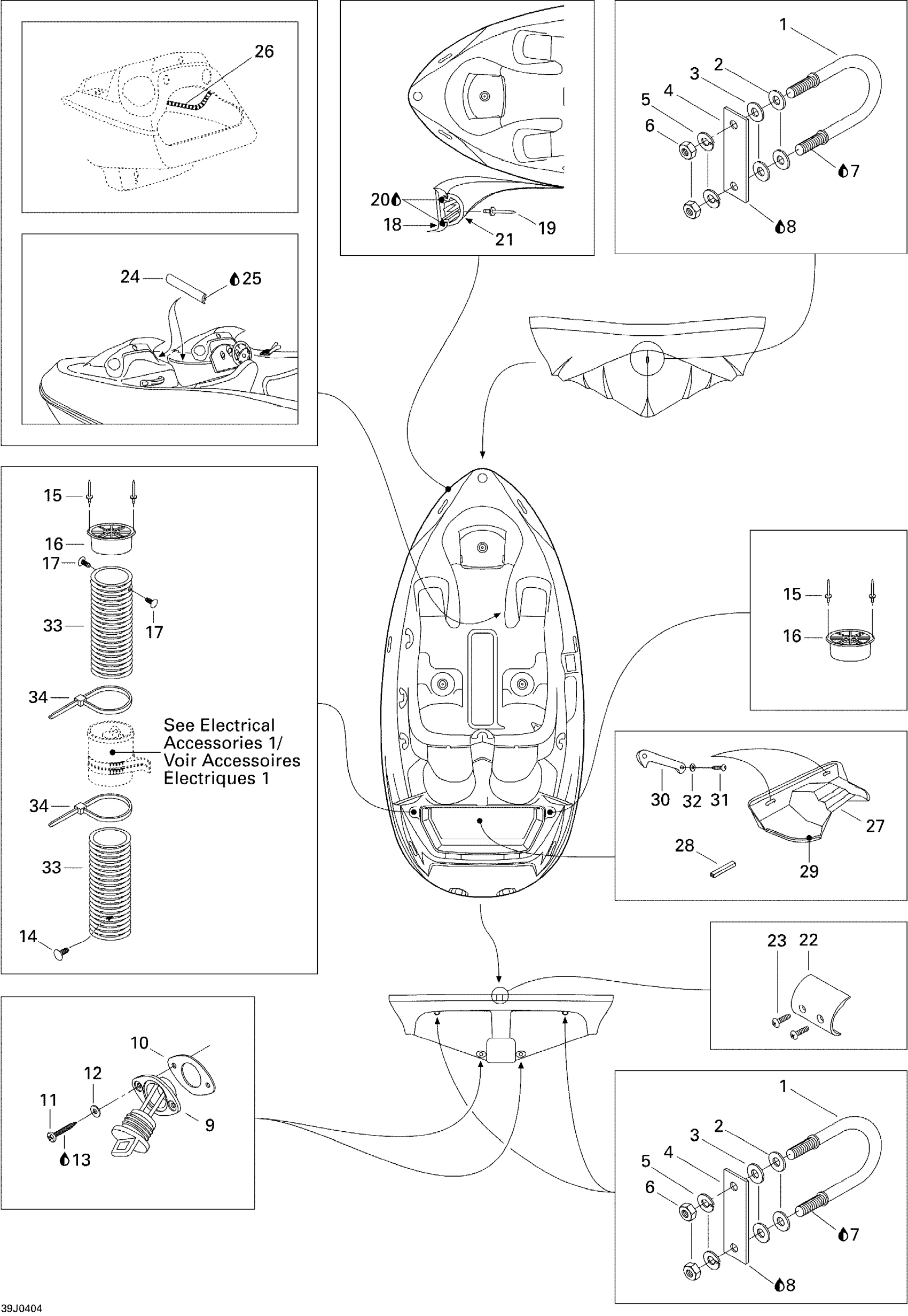

Sea-doo Speedster 1600, 240 ER, 2004 09- Hull Diagram
#
Description
Price
1
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
2
Flat Washer M8.5 x 18
293050001
$3.07
3
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
4
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
5
Lock Washer 8 mm, Stainless
234181601
$0.55
6
Hex. Nut M8
232081600
$1.47
7
Loctite 271, 10 ml
293800005
$26.99
8
Silicone Sealant 51388, 300 ml
296000309
$36.99
9
Drain Plug
292000187
$14.49
10
GASKET - Call your local BRP dealership
293250030
Unavailable
11
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
12
Flat Washer 4 mm, Stainless
234041600
$1.15
13
Silicone Sealant 51388, 300 ml
296000309
$36.99
14
Black, Dart
293730006
$0.99
15
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
16
VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533.
204050803
Unavailable
17
Black, Dart
293730006
$0.99
18
Black, Bumper
204050136
Unavailable
19
Pop Rivet 3/16"
293150013
$1.37
20
Silicone Sealant 51388, 300 ml
296000309
$36.99
21
Black, Trim - Call your local BRP dealership
204050137
Unavailable
22
BUMPER COVER, BLACK - Call your local BRP dealership
204050031
Unavailable
23
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
24
Console Trim, White
291000778
Unavailable
25
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
26
Slit Conduit, Meter
204550045
Unavailable
27
Access Cover
204050420
Unavailable
28
Trim, Meter
204050213
Unavailable
29
Seal Tray 1000Mm Long
219704368
$13.99
30
Black, Handle - Call your local BRP dealership
204050159
Unavailable
31
Hex. Flange Screw K40 X 16
241141660
$1.48
32
Flat Washer 4 mm, Stainless
234042600
$1.15
33
Was 204050122 Vent Hose 4"
219704358
$25.99
34
Tie Wrap 368 mm
293750008
$1.04
