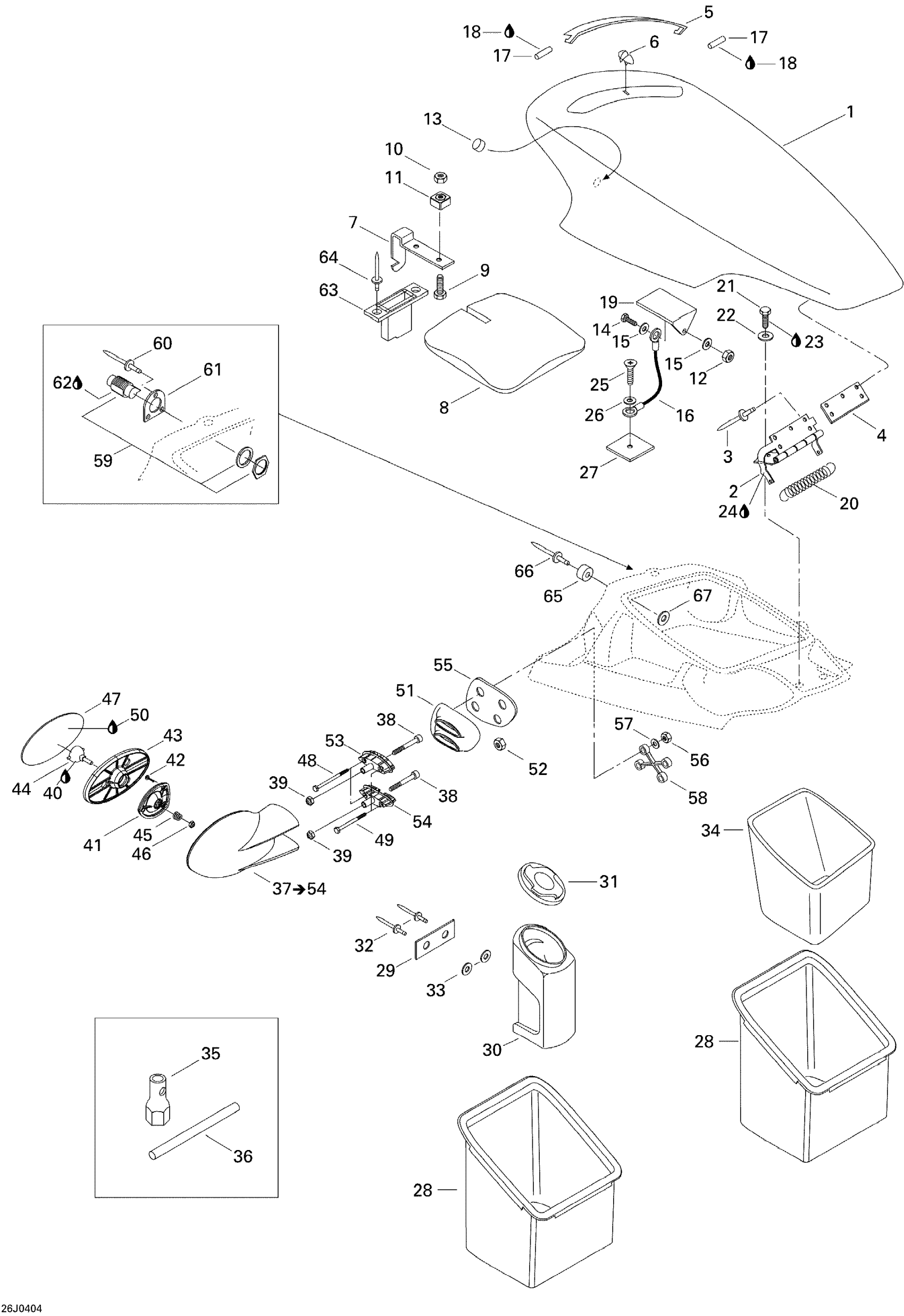

Sea-doo Speedster 1600, 240 ER, 2004 Front Storage Compartment Diagram

#

Description
Price

1

Windshield This part replaces 204620079.

291003861

Unavailable

2

HINGE ASS'Y - Call your local BRP dealership

204620281

Unavailable

3

Pop Rivet 3/16"

293150039

Unavailable

4

RETAINING PLATE - Call your local BRP dealership

204620087

Unavailable

5

DEFLECTOR - Call your local BRP dealership

204073803

Unavailable

6

REAR STOPPER - Call your local BRP dealership

204620106

Unavailable

7

LATCH - Call your local BRP dealership

204620070

Unavailable

8

FOAM, WINDSCREEN - Call your local BRP dealership

204620080

Unavailable

9

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

10

Hex. Elastic Nut M5 | X

232551600

Unavailable

11

NUT HOUSING - Call your local BRP dealership

204073798

Unavailable

12

Hex. Elastic Nut M5 | X

232551600

Unavailable

13

RUBBER STOPPER - Call your local BRP dealership

204620295

Unavailable

14

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

15

Flat Washer 5 mm, Stainless

234052600

Unavailable

16

RETAINER CABLE - Call your local BRP dealership

204620194

Unavailable

17

ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership

204620126

Unavailable

18

Glue Tube, Loctite 454, 20 G

413708300

Unavailable

19

CABLE ATTACHEMENT - Call your local BRP dealership

204620127

Unavailable

20

HINGE SPRING - Call your local BRP dealership

204620018

Unavailable

21

Hex. Screw M5 X 20

207152060

Unavailable

22

Flat Washer 5 mm, Stainless

234052600

Unavailable

23

Loctite 243, 10 ml

293800060

Unavailable

24

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

25

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

26

Flat Washer M6, Stainless

234062600

Unavailable

27

WINDSCREEN INSERT - Call your local BRP dealership

204620280

Unavailable

28

STORAGE TRAY - Call your local BRP dealership

269501940

Unavailable

29

GASKET - Call your local BRP dealership

293250037

Unavailable

30

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

31

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

32

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

33

Flat Washer M3, Stainless

234032600

Unavailable

34

ICEBOX FOAM - Call your local BRP dealership

204630008

Unavailable

35

Socket Wrench

204630050

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

RH Mirror Ass'y | Includes 37 to 54

204070995

Unavailable

38

Socket Head Screw M8 X 75

205087560

Unavailable

39

Hex. Elastic Nut M8

232581600

Unavailable

40

Synthetic Grease, 400 G

293550010

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Hex. Flange Screw K40 X 16

241141660

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

45

Mirror Spring

269500453

Unavailable

46

Hex. Elastic Stop Nut M6

232561600

Unavailable

47

MIRROR - Call your local BRP dealership

269500454

Unavailable

48

Hex. Screw M6 X 100

230060060

Unavailable

49

HEX. SCREW M6 X 90 - Call your local BRP dealership

207069060

Unavailable

50

Silicone Sealant 51388, 300 ml

296000309

Unavailable

51

Adaptor, Black

204070997

Unavailable

52

Hex. Nut M6

232061600

Unavailable

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

RH Gasket

293250035

Unavailable

56

Hex. Nut M6

232061600

Unavailable

57

Stainless Flat Washer M6

234061600

Unavailable

58

RH Reinforcement Plate

291000679

Unavailable

59

LATCH KIT - Call your local BRP dealership

204620063

Unavailable

60

RIVET_PLASTIC - Call your local BRP dealership

204130080

Unavailable

61

LATCH PLATE - Call your local BRP dealership

204070304

Unavailable

62

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

63

LATCH GUIDE - Call your local BRP dealership

204072064

Unavailable

64

RIVET_PLASTIC - Call your local BRP dealership

204130080

Unavailable

65

Rubber Stopper

293830043

Unavailable

66

Pop Rivet 3/16"

293150014

Unavailable

67

Flat Washer M5, Stainless

234051600

Unavailable
