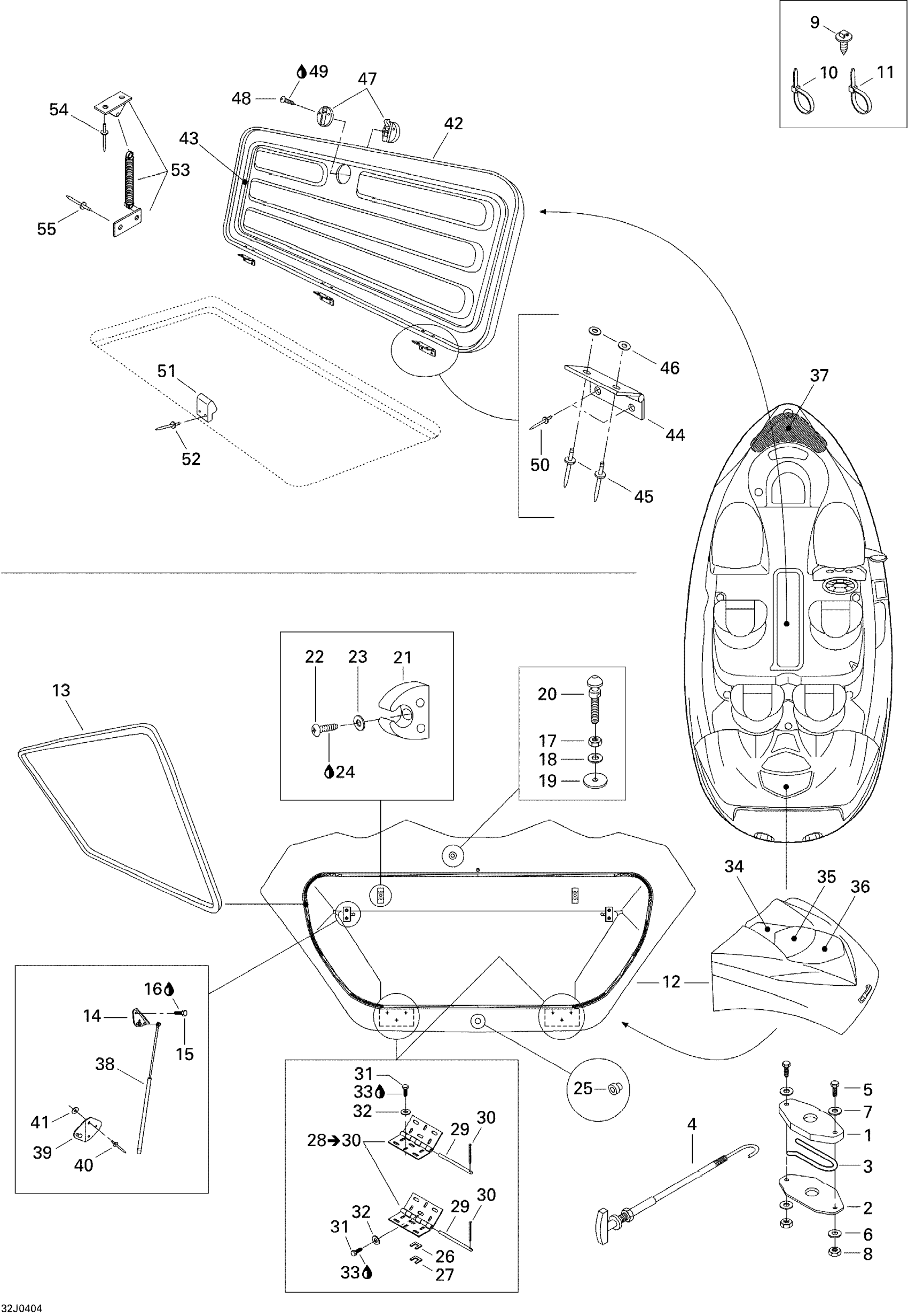

Sea-doo Speedster 1600, 240 ER, 2004 Engine Compartment And Central Cover Diagram

#

Description
Price

1

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

2

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

3

SPRING - Call your local BRP dealership

204070038

Unavailable

4

LATCH CABLE - Call your local BRP dealership

204070049

Unavailable

5

Hex. Screw M6 X 35

207163560

Unavailable

6

Flat Washer M6, Stainless

234062600

Unavailable

7

Stainless Flat Washer M6

234061600

Unavailable

8

Hex. Elastic Stop Nut M6

232561600

Unavailable

9

Mount Dart

293730040

Unavailable

10

Tie-Rap 180 mm

414115200

Unavailable

11

Tie Wrap 368 mm

293750008

Unavailable

12

Engine Cover

204071989

Unavailable

13

Was 293200017 Neoprene Seal

219704365

Unavailable

14

Shock Bracket

204073074

Unavailable

15

Hex. Screw M4 X 16 | Europe

207141660

Unavailable

16

Loctite 243, 10 ml

293800060

Unavailable

17

Hex. Jam Nut M10

232100600

Unavailable

18

Flat Washer 10 mm, Stainless

234002600

Unavailable

19

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

20

Latch Stud

204700001

Unavailable

21

Pole Support

291000642

Unavailable

22

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

23

Flat Washer 4 mm

234040600

Unavailable

24

Loctite 243, 10 ml

293800060

Unavailable

25

GROMMET - Call your local BRP dealership

293720017

Unavailable

26

SPACER 3.2 MM - Call your local BRP dealership

204070047

Unavailable

27

SPACER 1.6 MM - Call your local BRP dealership

204070088

Unavailable

28

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

29

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

30

Cotter Pin M2.5 X 12

204070205

Unavailable

31

Hex. Screw M6 X 25

207162560

Unavailable

32

Stainless Flat Washer M6

234061600

Unavailable

33

Loctite 243, 10 ml

293800060

Unavailable

34

Front Engine Cover Carpet

204070653

Unavailable

35

Central Engine Cover Carpet

204070654

Unavailable

36

Step Engine Cover Step Carpet

204070655

Unavailable

37

Carpet

204070189

Unavailable

38

GAS SHOCK - Call your local BRP dealership | Port Side

204071964

Unavailable

39

Body Cylinder Support

204070252

Unavailable

40

Pop Rivet 3/16"

293150043

Unavailable

41

Flat Washer M5, Stainless

234051600

Unavailable

42

Center Cover

204072036

Unavailable

43

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

44

HINGE - Call your local BRP dealership

204072601

Unavailable

45

Pop Rivet 3/16"

293150088

Unavailable

46

Flat Washer M5, Stainless

234051600

Unavailable

47

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

48

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

49

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

50

Pop Rivet 3/16"

293150088

Unavailable

51

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

52

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

53

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

54

Pop Rivet 3/16"

204000081

Unavailable

55

Pop Rivet 3/16"

293150043

Unavailable
