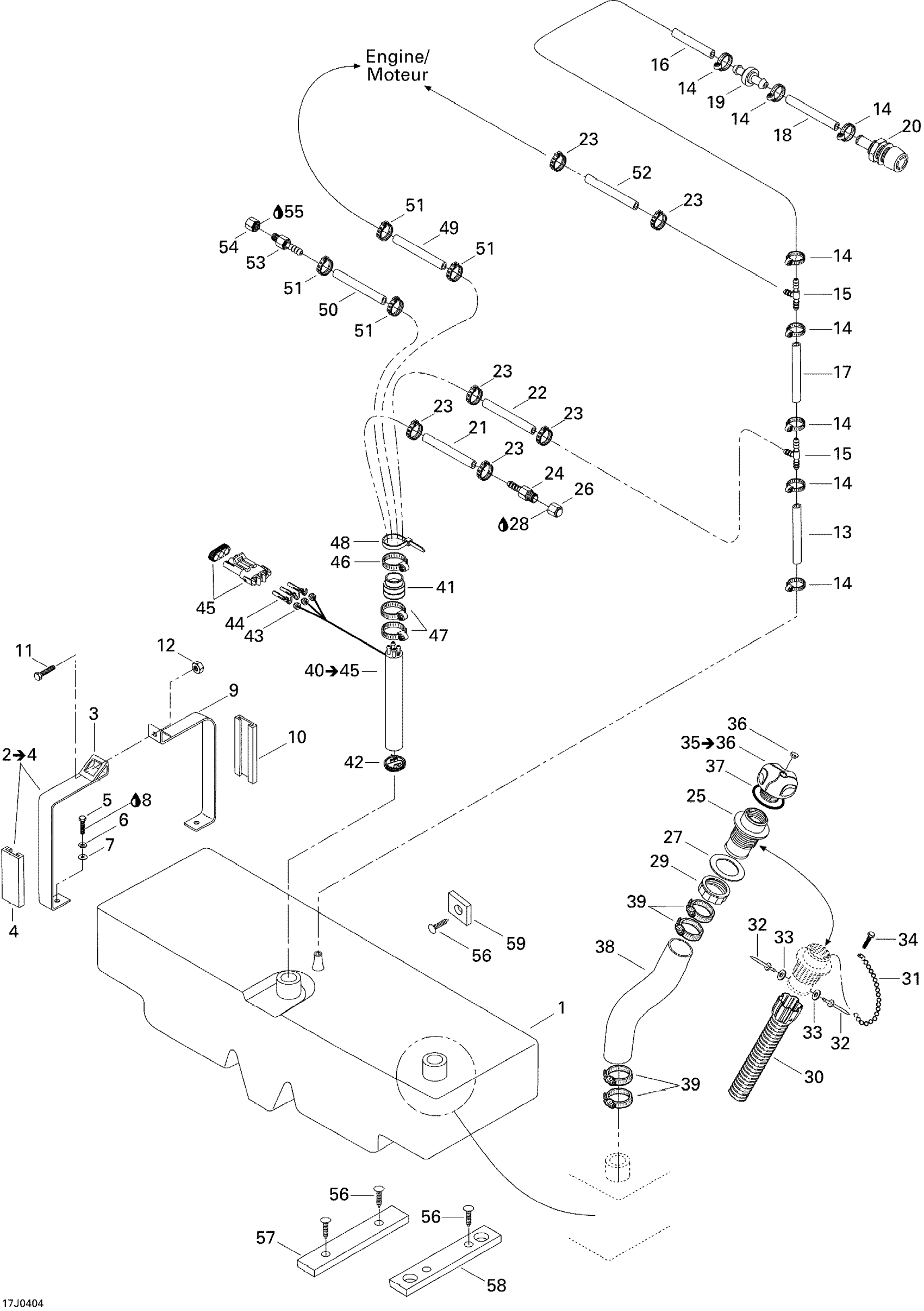

Sea-doo Speedster 1600, 240 ER, 2004 Fuel System Diagram

#

Description
Price

1

Plastic Fuel Tank

204560053

Unavailable

2

Fuel Tank Strap Ass'y | Includes 2 to 4

204560212

Unavailable

3

Tank Bracket

204560213

Unavailable

4

Protector Strip

204560075

Unavailable

5

Hex. Screw M8 X 30

207183060

$1.58

6

Lock Washer 8 mm, Stainless

234181601

$0.55

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

Loctite 271, 10 ml

293800005

$26.99

9

Tank Bracket

204560215

Unavailable

10

Protector Strip

204560076

Unavailable

11

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

12

Hex. Elastic Nut M8

232581600

$1.48

13

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

14

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

15

T-Fitting

204560038

Unavailable

16

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

17

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

18

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

19

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

20

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

21

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

22

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

23

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

24

COUPLER - Call your local BRP dealership

204560265

Unavailable

25

Filler Neck

275500247

Unavailable

26

Pipe Cap

204560263

Unavailable

27

Gasket

293250029

$14.82

28

Was 293800013 Loctite 56765

219704454

$65.99

29

Filler Neck Nut, Fuel

211100012

$14.22

30

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

31

Oil Cap Chain

275500015

Unavailable

32

Rivet 1/8”

293150057

Unavailable

33

Flat Washer M3, Stainless

234032600

$0.55

34

Screw K40 X 10

241140060

$1.48

35

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

36

Black, Snap Cap

293000034

$9.39

37

Gasket

293250017

Unavailable

38

Exterior Hose Filler Neck

204560079

Unavailable

39

Norma Clamp

293650081

$12.18

40

BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48

204560223

Unavailable

41

Fuel Tube Adaptor

204560066

Unavailable

42

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

43

Wire Seal

278000218

$4.39

44

Female Terminal

278000223

$3.19

45

Male Housing, 3 Circuits

278000273

$9.59

46

Norma Clamp

293650077

$7.41

47

Norma Clamp

293650081

$12.18

48

Tie-Rap 180 mm

414115200

$0.11

49

Hose 5/16”, Meter

204560177

Unavailable

50

Hose 5/16”, Meter

204560177

Unavailable

51

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

52

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

53

Hose Fitting

204560264

Unavailable

54

Pipe Cap

204560263

Unavailable

55

Was 293800013 Loctite 56765

219704454

$65.99

56

Black, Dart

293730006

$0.99

57

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

58

Fuel Tank Rubber Pad

204060703

Unavailable

59

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable
