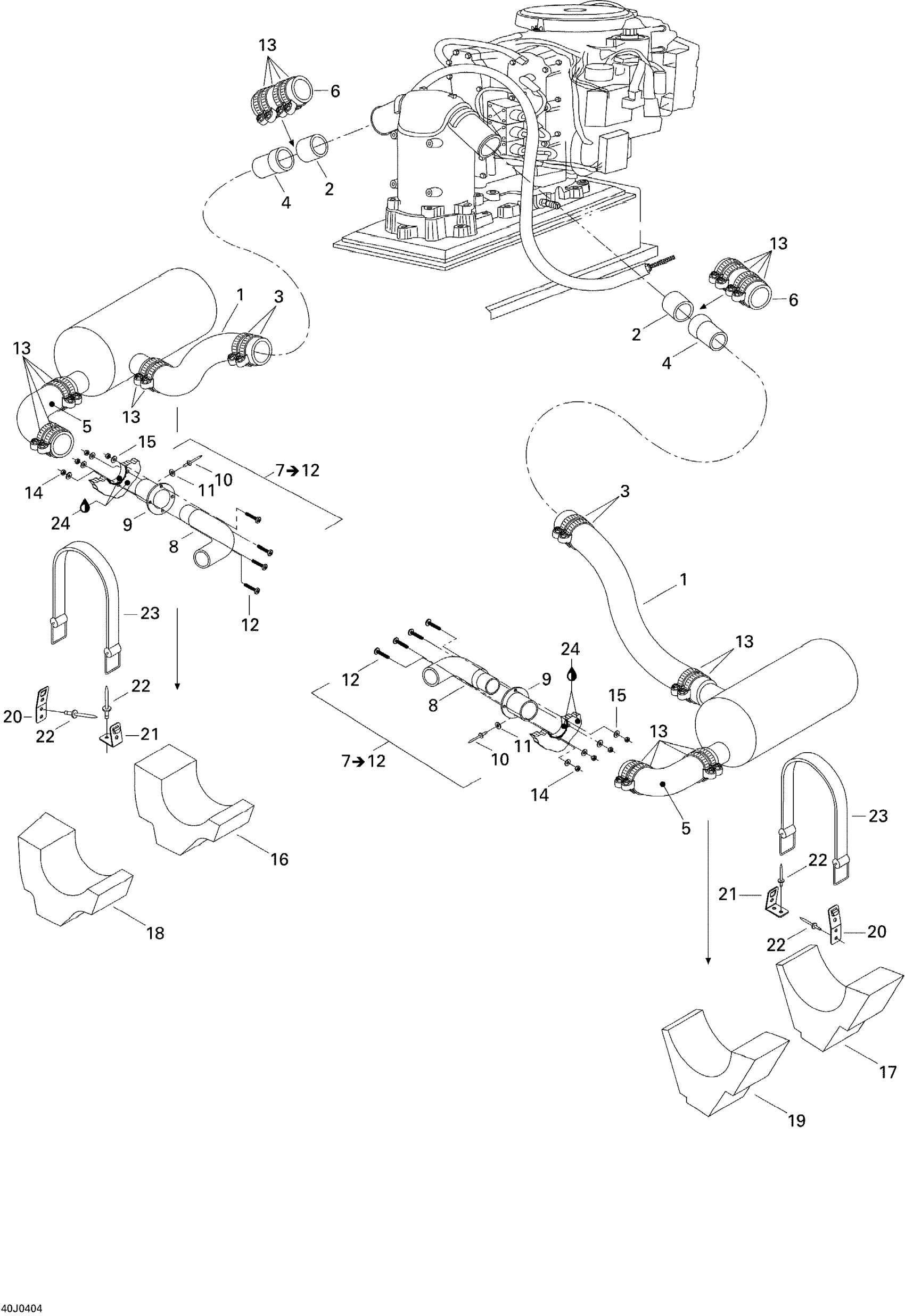

Sea-doo Speedster 1600, 240 ER, 2004 Exhaust System Diagram

#

Description
Price

1

Exhaust Hose | 5171 (240 EFI)

204340406

Unavailable

2

Exhaust Spacer

204340403

$30.49

3

Tridon Clamp

293650064

$8.29

4

Exhaust Adaptor

204340402

$59.49

5

Exhaust Hose

204340297

Unavailable

6

Exhaust Hose, Meter

204340256

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Exhaust Hose 90°

204340250

Unavailable

9

Exhaust Outlet

204340229

Unavailable

10

Pop Rivet 3/16"

293150043

$2.09

11

Flat Washer 5 mm, Stainless

234052600

$0.77

12

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208663560

Unavailable

13

Tridon Clamp

293650112

$12.99

14

Hex. Elastic Stop Nut M6

232561600

$1.15

15

Flat Washer M6, Stainless

234062600

$0.77

16

Front Muffler Support (Port)

204340237

Unavailable

17

Front Muffler Support (Starboard)

204340199

Unavailable

18

Rear Muffler Support (Port)

204340238

Unavailable

19

Rear Muffler Support (Starboard)

204340200

Unavailable

20

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

21

Strap Clip 90°

204060017

Unavailable

22

Pop Rivet 3/16"

293150088

$0.99

23

STRAP - Call your local BRP dealership

293850022

Unavailable

24

Silicone Sealant 51388, 300 ml

296000309

$36.99
