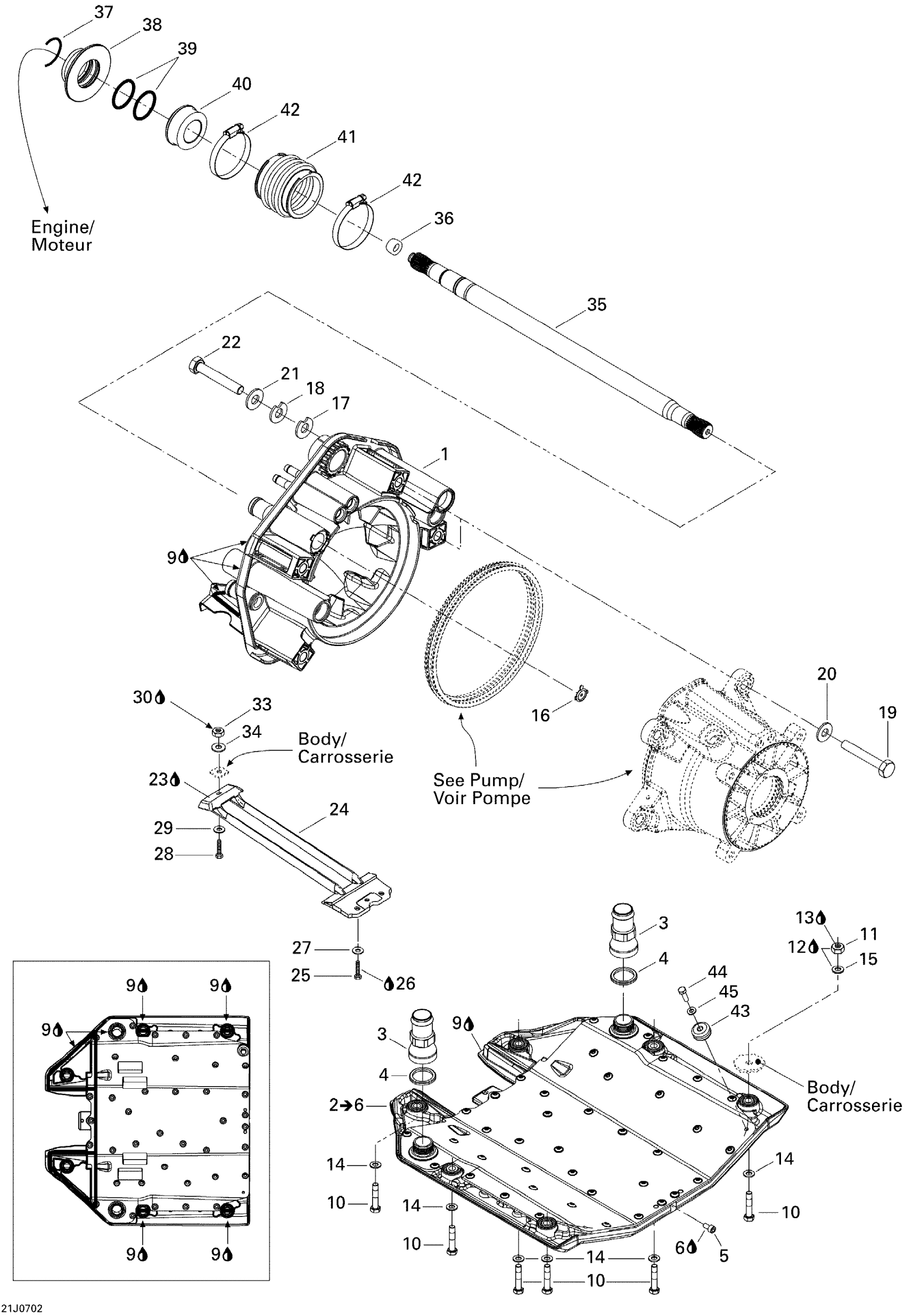

Sea-doo Speedster 150 215IC, 2007 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120315

Unavailable

2

Riding Plate | Includes 2 to 6

204120312

Unavailable

3

Straight Plastic Fitting

293710111

$6.88

4

O-Ring

293300121

$6.18

5

Socket Drain Plug M6 X 12

250500005

$11.74

6

Was 293800013 Loctite 56765

219704454

$63.40

9

Instant Gasket

219701421

$50.02

10

Hex. Screw M8 X 40

207084060

$1.85

11

Hex. Elastic Nut M8

232581600

$1.25

12

Silicone Sealant 51388, 300 ml

296000309

$35.72

13

Loctite 243, 10 ml

293800060

$20.77

14

Stainless, Flat Washer 8 mm

234081600

$0.46

15

Flat Washer 8 mm, Stainless

234082600

$1.98

16

Reducer This part replaces 291001887.

291004649

$12.57

17

Shim 0.3 mm

272000053

$8.02

18

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

19

HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

250000188

Unavailable

20

Flat Washer

211200051

$1.34

21

Flat Washer 10 mm, Stainless

234002600

$1.85

22

HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership

250000189

Unavailable

23

Instant Gasket

219701421

$50.02

24

Pump Grate

204120294

Unavailable

25

Hex. Screw M6 X 16

207161660

$1.22

26

Loctite 271, 10 ml

293800005

$20.77

27

Stainless Flat Washer M6

234061600

$0.25

28

Hex. Screw M8 X 40

207184060

$1.85

29

Stainless, Flat Washer 8 mm

234081600

$0.46

30

Silicone Sealant 51388, 300 ml

296000309

$35.72

33

Hex. Elastic Nut M8

232581600

$1.25

34

Stainless, Flat Washer 8 mm

234081600

$0.46

35

DRIVE SHAFT - Call your local BRP dealership

204120279

Unavailable

36

Drive Shaft Plug

272000173

$7.02

37

C-Clip

271001577

$2.68

38

Carbon Ring Kit | Includes 280b to 280b4

295501204

$66.27

39

O-Ring

293300107

$0.83

40

CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4

271001420

Unavailable

41

Bellow This part replaces 271001422.

271001933

$18.82

42

Norma Clamp

293650079

$8.89

43

Anode Zinc

271001813

$13.62

44

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

45

Stainless Flat Washer M6

234061600

$0.25
