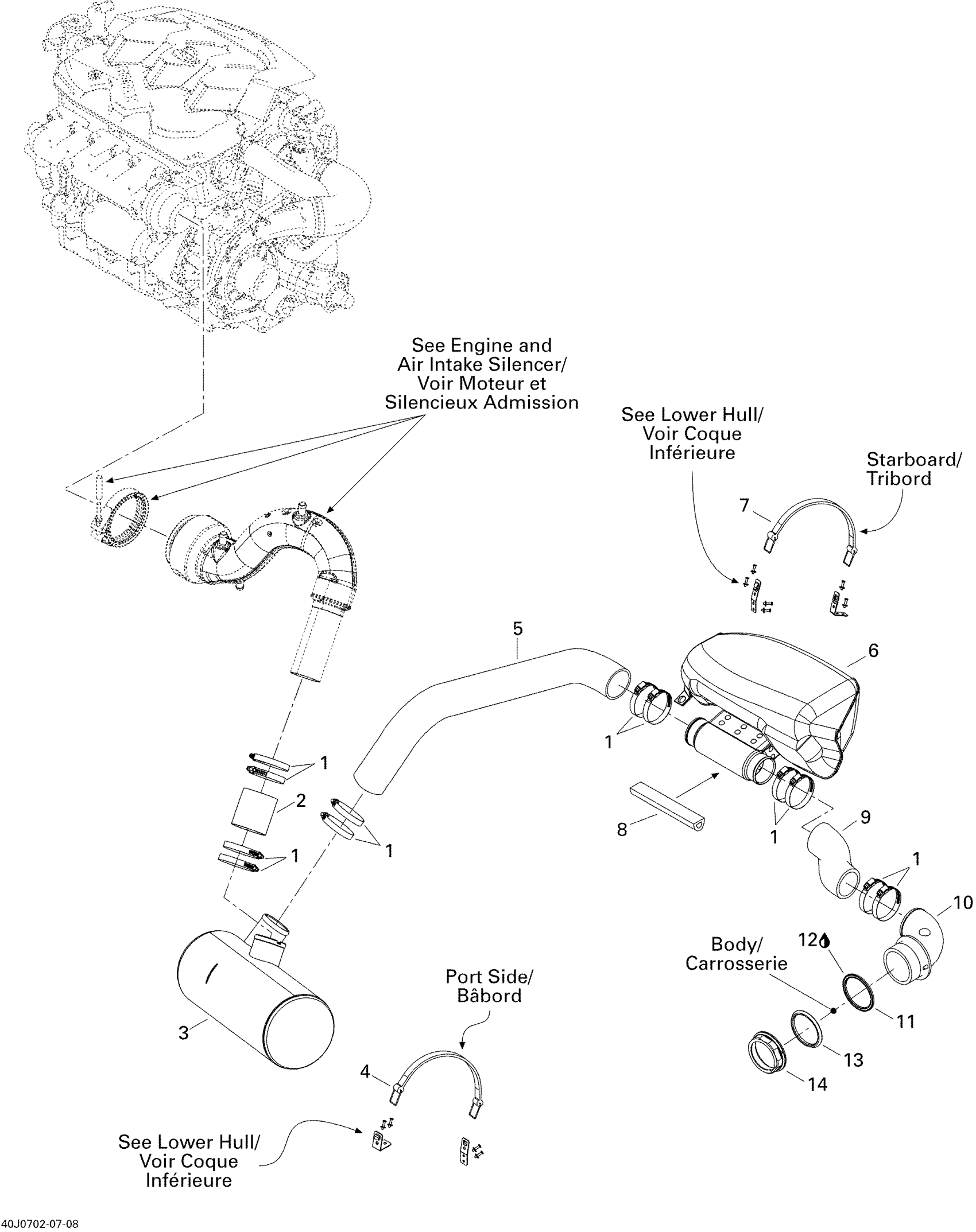

Sea-doo Speedster 150 215IC, 2007 Exhaust System Diagram

#

Description

Price

1

Tridon Clamp

293650179

$11.49

2

Exhaust Hose

274001302

$35.99

3

COATED MUFFLER - Call your local BRP dealership

204340490

Unavailable

4

Retainer Strap

293850097

$11.64

5

EXHAUST HOSE - Call your local BRP dealership | Without Catalyst

204340436

Unavailable

6

RH Resonator

274001045

$217.49

7

STRAP - Call your local BRP dealership

293850022

Unavailable

8

Seal Tray 1000Mm Long

219704368

$13.99

9

Exhaust Hose This part replaces 204340437.

0461589

$16.88

10

Exhaust Hose, Outlet

274001389

$29.49

11

GASKET - Call your local BRP dealership

293250041

Unavailable

12

Silicone Sealant 51388, 300 ml

296000309

$36.99

13

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

14

Nut 72 mm

274000224

$16.34
