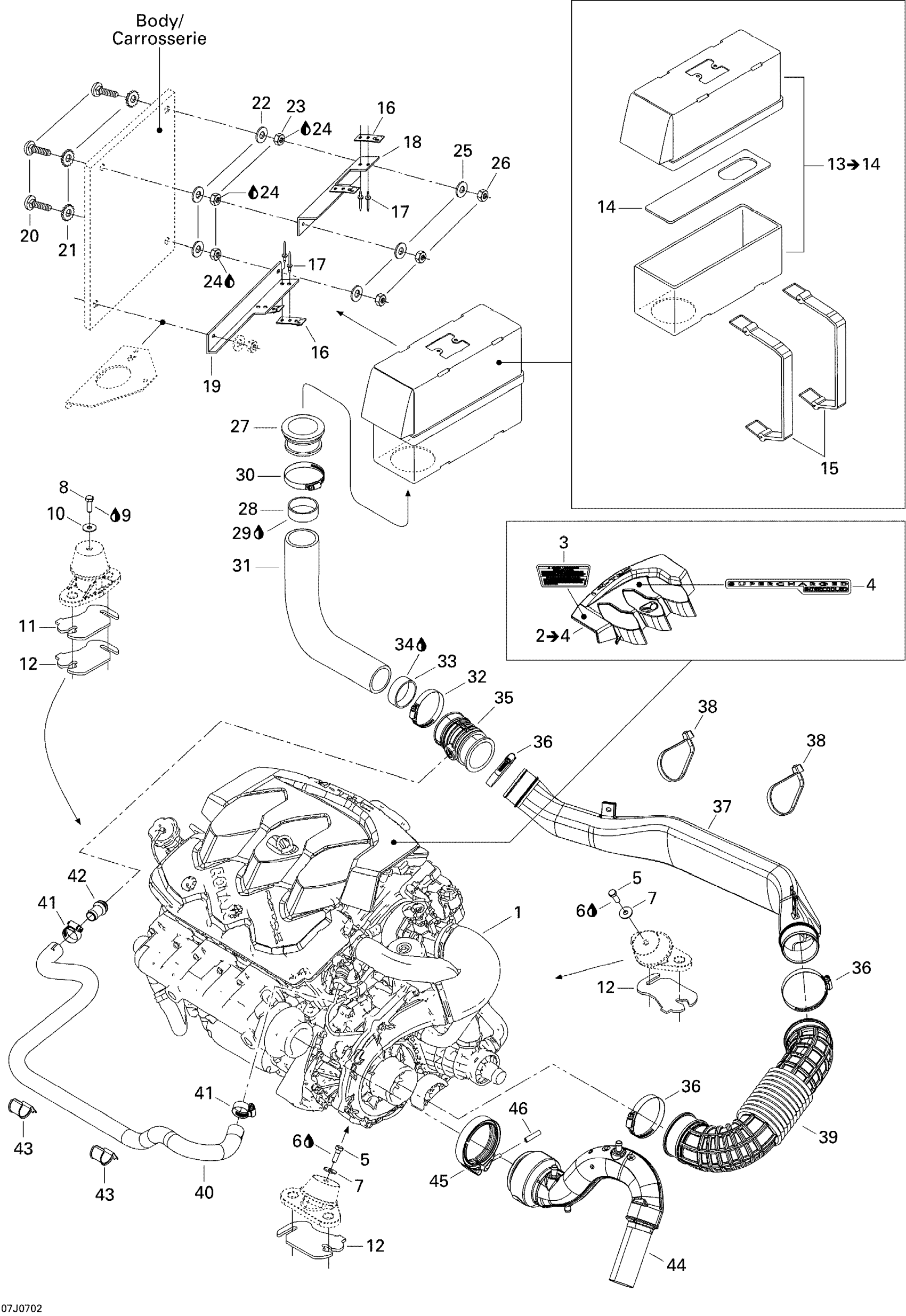

Sea-doo Speedster 150 215IC, 2007 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Rotax Engine 4 Strokes, 1503 SCIC

204250392

Unavailable

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

3

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

4

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

5

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

6

Loctite 243, 10 ml

293800060

$21.49

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

10

Flat Washer 8 mm, Stainless

234082600

$2.43

11

Shim 1.3 mm

270000762

$12.99

12

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

13

Air Silencer Ass'y | Includes 13 to 14

204250323

Unavailable

14

Air Silencer Divider

204250324

Unavailable

15

Retainer Strap

293850097

$11.64

16

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

17

Pop Rivet 3/16"

204000081

$1.49

18

Air Silencer Bracket, Upper

204250285

Unavailable

19

Air Silencer Bracket, Lower

204250284

Unavailable

20

Elevator Bolt

204000130

Unavailable

21

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

22

Flat Washer M6, Stainless

234062600

$0.77

23

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

24

Loctite 271, 10 ml

293800005

$26.99

25

Stainless, Flat Washer 8 mm

234081600

$0.55

26

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

27

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

Unavailable

28

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

29

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

30

Tridon Clamp

293650064

$8.29

31

INTAKE HOSE - Call your local BRP dealership

204340435

Unavailable

32

Tridon Clamp

293650064

$8.29

33

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

34

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

35

Adaptor Hose, Engine

204250276

Unavailable

36

Tridon Clamp

293650179

$11.49

37

Intake Hose

273000185

Unavailable

38

Tie Wrap 368 mm

293750008

$1.04

39

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

40

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

41

Tridon Gear Clamp

293650051

$4.19

42

Breather Valve

273000234

$14.49

43

Retainer

275500664

$14.75

44

EXHAUST PIPE - Call your local BRP dealership

274001049

Unavailable

45

Exhaust Clamp This part replaces 274000959.

274001472

$58.99

46

Polyurethane Hose 10000Mm Long

219704410

$56.99
