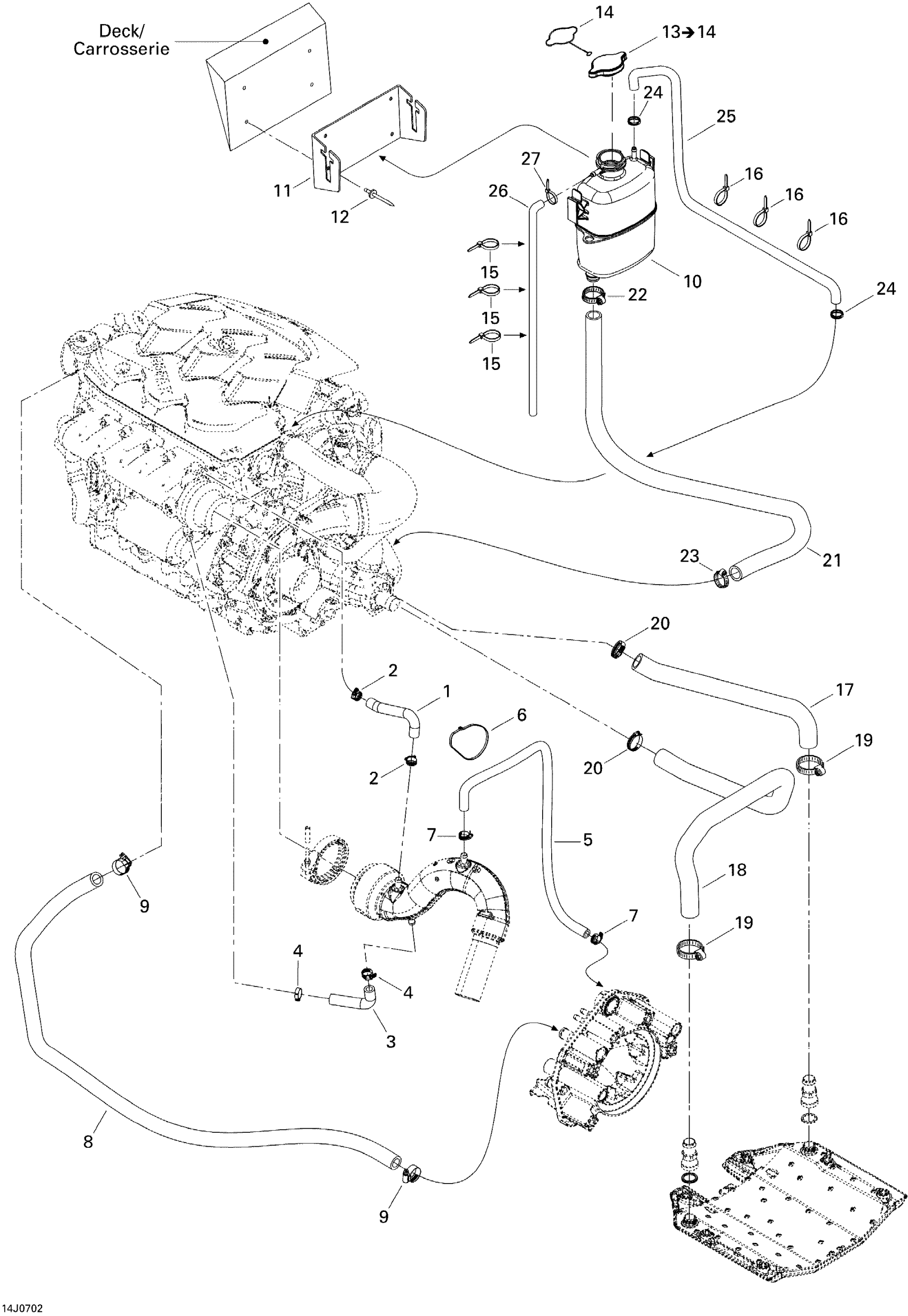

Sea-doo Speedster 150 215IC, 2007 Cooling System Diagram

#

Description
Price

1

Formed Hose

276000155

Unavailable

2

Tridon Gear Clamp

293650172

$2.68

3

FORMED HOSE - Call your local BRP dealership

276000156

Unavailable

4

Tridon Gear Clamp

293650172

$2.68

5

Was 276000001 Hose 12.5 mm

219704394

$42.87

6

Tie Wrap 368 mm

293750008

$0.85

7

Tridon Gear Clamp

293650172

$2.68

8

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

9

Tridon Gear Clamp

293650051

$3.61

10

Coolant Tank

276000086

$87.72

11

Coolant Tank Bracket

204300165

Unavailable

12

Pop Rivet 3/16"

293150039

$1.31

13

Pressure Cap | Includes 720 to 720a

276000100

$20.77

14

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

15

Tie Wrap 142 mm

293750002

$0.88

16

Tie Wrap 142 mm

293750002

$0.88

17

RH Radiator Hose

276000248

$45.47

18

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

19

Tridon Gear Clamp

293650045

$4.51

20

Tridon Gear Clamp

293650045

$4.51

21

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

22

Tridon Gear Clamp

293650051

$3.61

23

Tridon Gear Clamp

293650019

$4.81

24

Oetiker Gear Clamp

293650025

$2.46

25

HOSE 1/4 - Call your local BRP dealership

204300184

Unavailable

26

Polyurethane Hose 10000Mm Long

219704410

$46.12

27

Tie Wrap 94 mm | 4X4

293750001

$0.83
