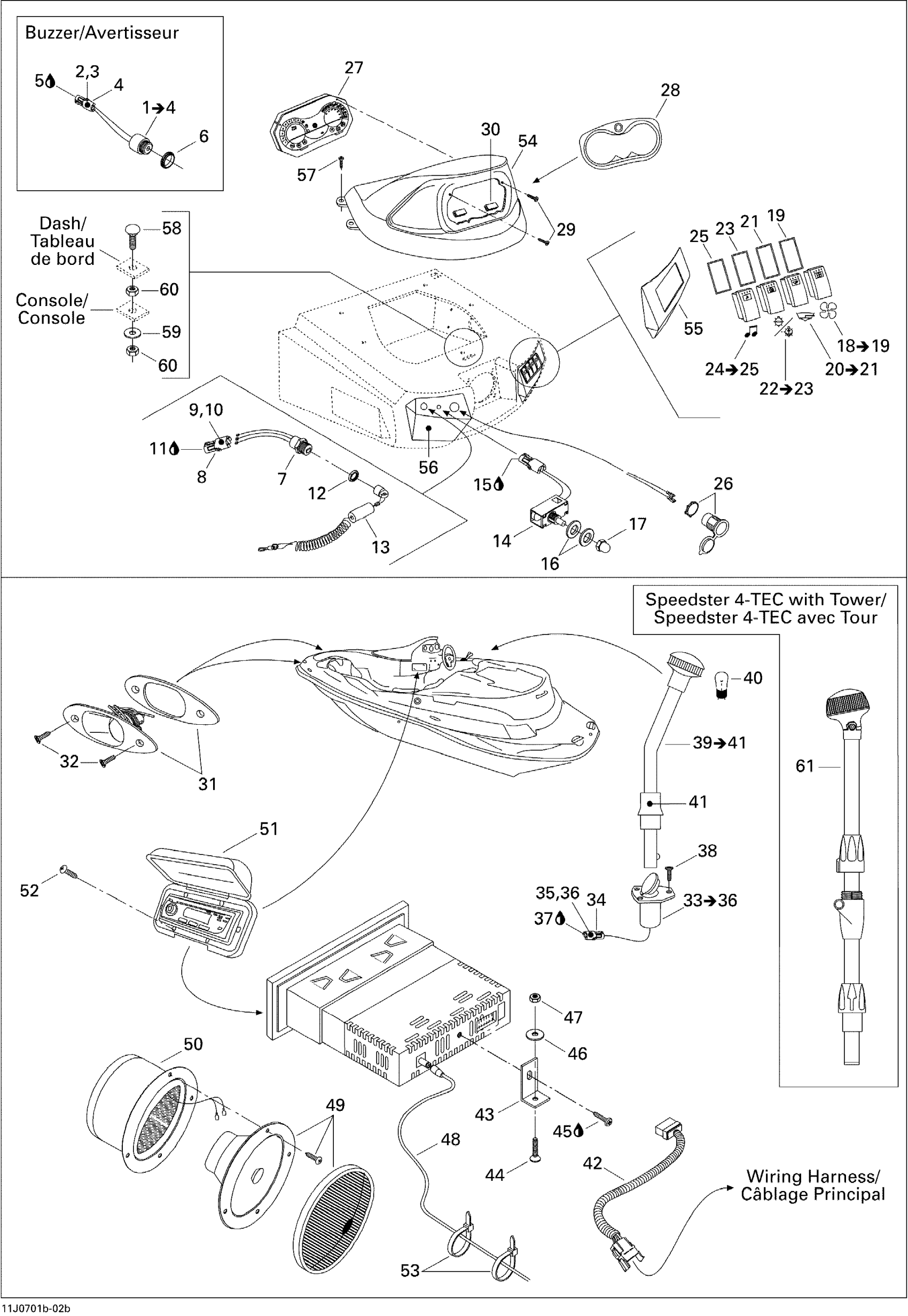

Sea-doo Speedster 150 155NA, 2007 Electrical Accessories 2 Diagram

#

Description
Price

1

Buzzer Ass'y

204470913

$82.81

2

Male Terminal | XT Models

278000222

$2.55

3

Wire Seal

278000218

$3.48

4

Female Housing, 2 Circuits

278000217

$7.59

5

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

6

Buzzer Nut

278000707

Unavailable

7

Safety Switch This part replaces 278002325.

278002773

$89.67

8

Male Housing, 3 Circuits

278000273

$7.59

9

Wire Seal

278000218

$3.48

10

Female Terminal

278000223

$2.55

11

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

12

Safety Nut (DESS Switch)

278002963

$2.72

13

Safety Lanyard

204471206

$68.87

14

IGNITION SWITCH - Call your local BRP dealership

278000621

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

16

FLAT WASHER - Call your local BRP dealership

204100027

Unavailable

17

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

18

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

19

Gasket

204470132

Unavailable

20

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

21

Gasket

204470132

Unavailable

22

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

23

Gasket

204470132

Unavailable

24

STEREO SWITCH - Call your local BRP dealership | Includes 28 to 29

204471116

Unavailable

25

Gasket

204470132

Unavailable

26

DC Outlet

710001248

$31.17

27

Cluster Gauge

204471378

$805.94

28

Gauge Bezel, Chrome

278002144

$29.87

29

Hex. Flange Screw K40 X 25

241142560

$2.17

30

TRIM - Call your local BRP dealership

293830113

Unavailable

31

LATERAL LIGHT KIT - Call your local BRP dealership

204470908

Unavailable

32

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

33

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

34

Female Housing, 2 Circuits

278000217

$7.59

35

Male Terminal | XT Models

278000222

$2.55

36

Wire Seal

278000218

$3.48

37

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

38

Phillips Tapping Screw M4.2 X 32

209943260

$1.40

39

Rear Light Pole | Models Without Tower, Includes 39 to 41

204470792

Unavailable

40

Bulb

204470053

Unavailable

41

COLLAR - Call your local BRP dealership

204470350

Unavailable

42

Stereo Adaptor Harness

204470930

Unavailable

43

RADIO SUPPORT - Call your local BRP dealership

204470981

Unavailable

44

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

45

Loctite 243, 10 ml

293800060

$20.77

46

Flat Washer M6, Stainless

234062600

$0.64

47

Hex. Elastic Stop Nut M6

232561600

$0.92

48

Antenna

204470931

Unavailable

49

Black, Speaker

204471060

Unavailable

50

SPEAKER COVER ASS'Y - Call your local BRP dealership

204470982

Unavailable

51

RADIO CD PLAYER COVER - Call your local BRP dealership

204470894

Unavailable

52

Pan Head Tapping Screw M3.5x25

209632560

Unavailable

53

Tie Wrap 94 mm | 4X4

293750001

$0.83

54

DASH - Call your local BRP dealership

204471300

Unavailable

55

RH Switch Panel

204471138

Unavailable

56

LH SWITCH PANEL - Call your local BRP dealership

204471137

Unavailable

57

SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership

202000203

Unavailable

58

Elevator Bolt

204000130

Unavailable

59

FLAT WASHER 9/32? - Call your local BRP dealership

204100089

Unavailable

60

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

61

Rear Light Pole | Models With Tower

204470842

Unavailable
