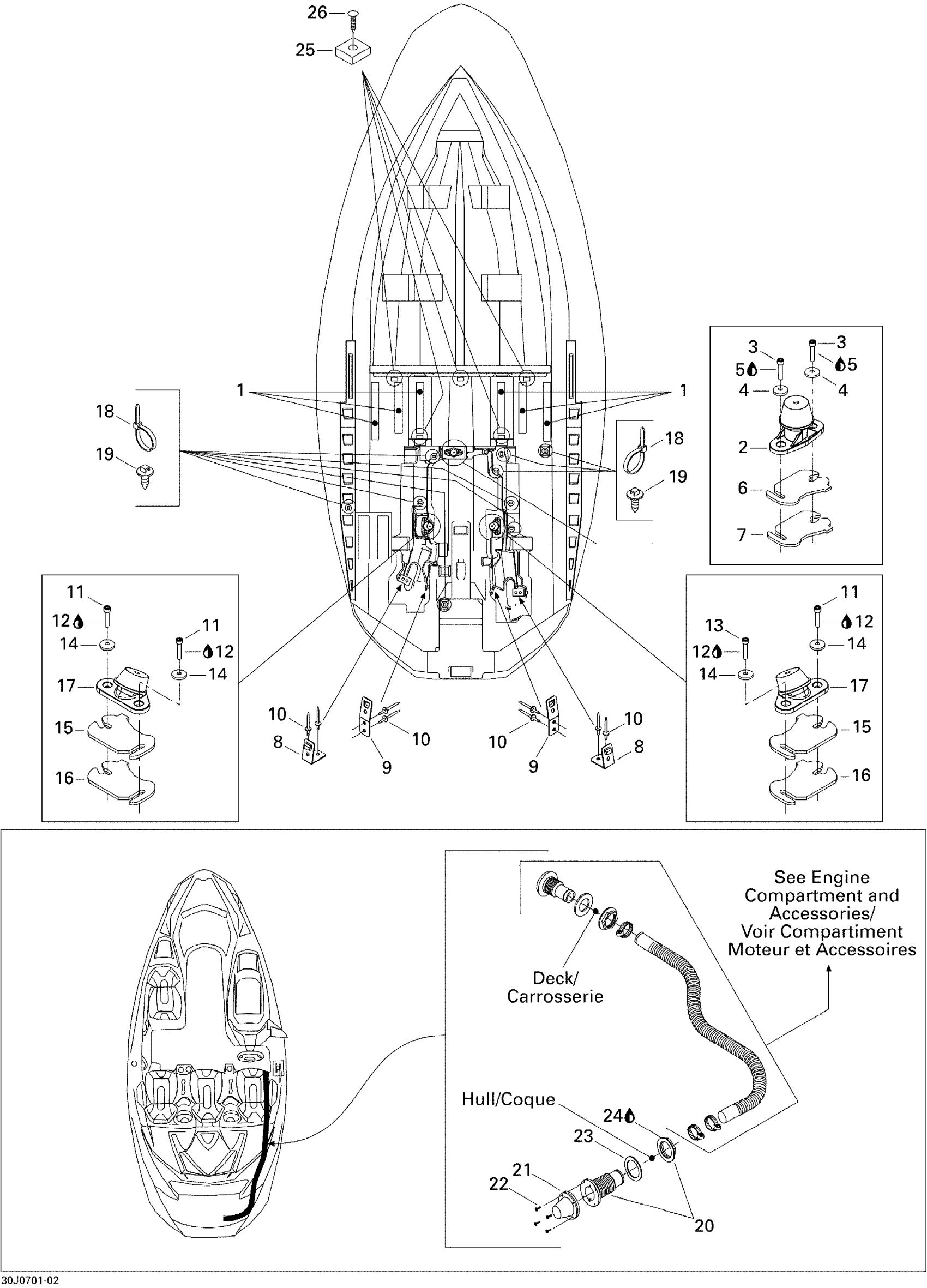

Sea-doo Speedster 150 155NA, 2007 Lower Hull Diagram

#

Description
Price

1

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

2

Engine Support Ass'y

270001096

$77.32

3

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

4

Cone Washer

250200018

$4.64

5

Loctite 243, 10 ml

293800060

$20.77

6

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

7

Shim 1.3 mm

270000762

$9.04

8

Strap Clip 90°

204060017

Unavailable

9

Strap Clip

293850030

$8.97

10

Pop Rivet 3/16"

293150088

$0.91

11

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

12

Loctite 243, 10 ml

293800060

$20.77

13

Socket Head Screw M8 X 45

205084560

$2.81

14

Cone Washer

250200018

$4.64

15

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

16

Shim 1.3 mm

270000762

$9.04

17

Engine Support Ass'y

270001081

$84.47

18

Tie-Rap 180 mm

414115200

$0.09

19

Mount Dart

293730040

$0.86

20

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

21

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

22

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

23

GASKET - Call your local BRP dealership

292800106

Unavailable

24

Silicone Sealant 51388, 300 ml

296000309

$35.72

25

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable

26

Black, Dart

293730006

$0.81
