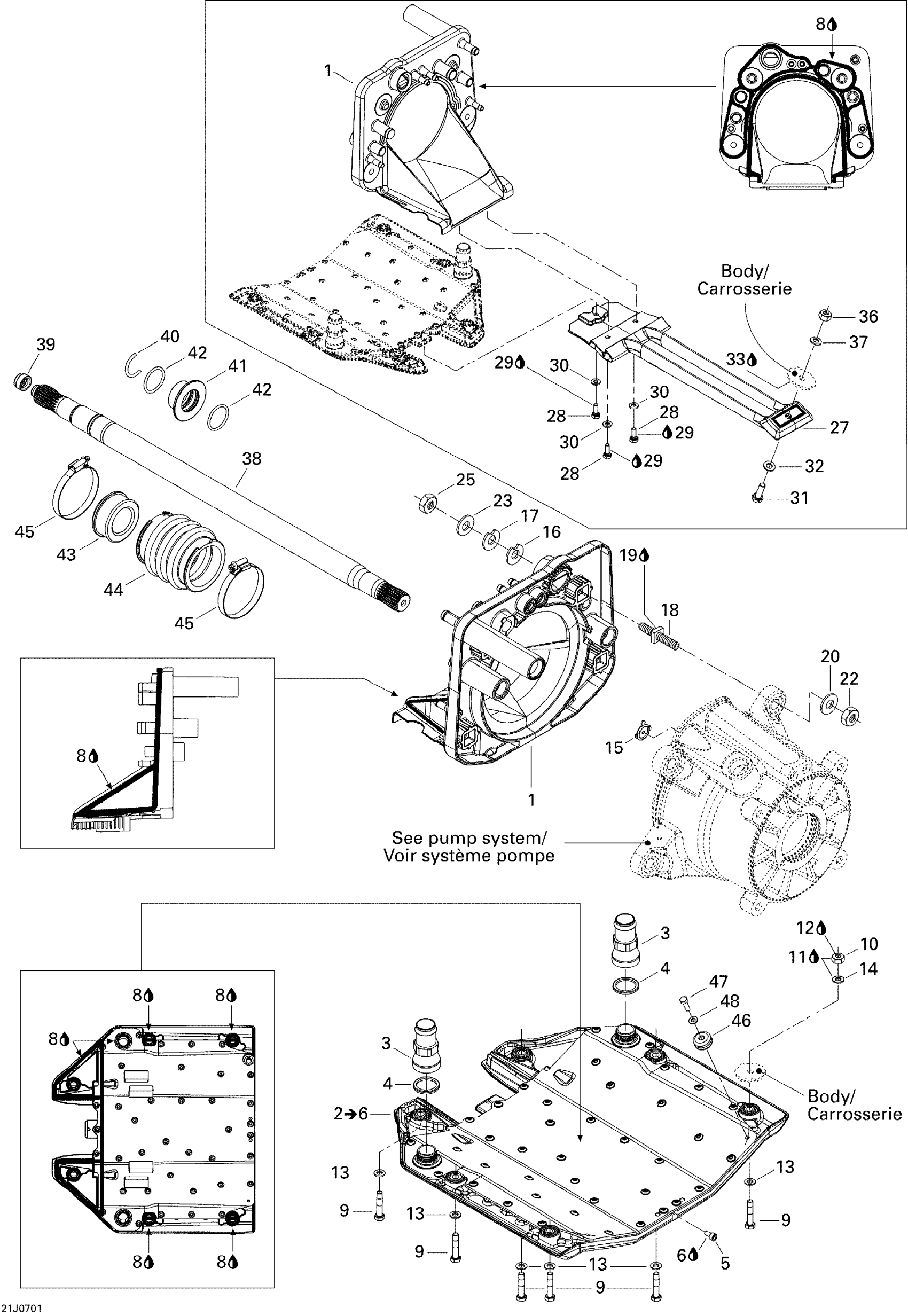

Sea-doo Speedster 150 155NA, 2007 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120314

Unavailable

2

Riding Plate | Includes 2 to 6

204120312

Unavailable

3

Straight Plastic Fitting

293710111

$6.88

4

O-Ring

293300121

$6.18

5

Socket Drain Plug M6 X 12

250500005

$11.74

6

Was 293800013 Loctite 56765

219704454

$63.40

8

Instant Gasket

219701421

$50.02

9

Hex. Screw M8 X 40

207084060

$1.85

10

Hex. Elastic Nut M8

232581600

$1.25

11

Silicone Sealant 51388, 300 ml

296000309

$35.72

12

Loctite 243, 10 ml

293800060

$20.77

13

Stainless, Flat Washer 8 mm

234081600

$0.46

14

Flat Washer 8 mm, Stainless

234082600

$1.98

15

Reducer This part replaces 291001887.

291004649

$12.57

16

Shim 0.3 mm

272000053

$8.02

17

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

18

Square Stud

250300022

$15.57

19

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

20

Flat Washer

211200051

$1.34

22

Elastic Stop Nut M10, Brass

232501200

$2.16

23

Flat Washer 10 mm, Stainless

234002600

$1.85

25

Elastic Stop Nut M10, Brass

232501200

$2.16

27

GRATE - Call your local BRP dealership

271001560

Unavailable

28

Hex. Screw M6 X 16

207161660

$1.22

29

Loctite 271, 10 ml

293800005

$20.77

30

Stainless Flat Washer M6

234061600

$0.25

31

Hex. Screw M8 X 40

207184060

$1.85

32

Stainless, Flat Washer 8 mm

234081600

$0.46

33

Silicone Sealant 51388, 300 ml

296000309

$35.72

36

Hex. Elastic Nut M8

232581600

$1.25

37

Stainless, Flat Washer 8 mm

234081600

$0.46

38

Drive Shaft This part replaces 271001534.

271001724

$265.82

39

Drive Shaft Plug

272000173

$7.02

40

C-Clip

271001575

$4.54

41

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

42

O-Ring

293300044

$0.86

43

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

44

Bellows

272000183

$22.72

45

Norma Clamp

293650077

$6.11

46

Anode Zinc

271001813

$13.62

47

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

48

Stainless Flat Washer M6

234061600

$0.25
