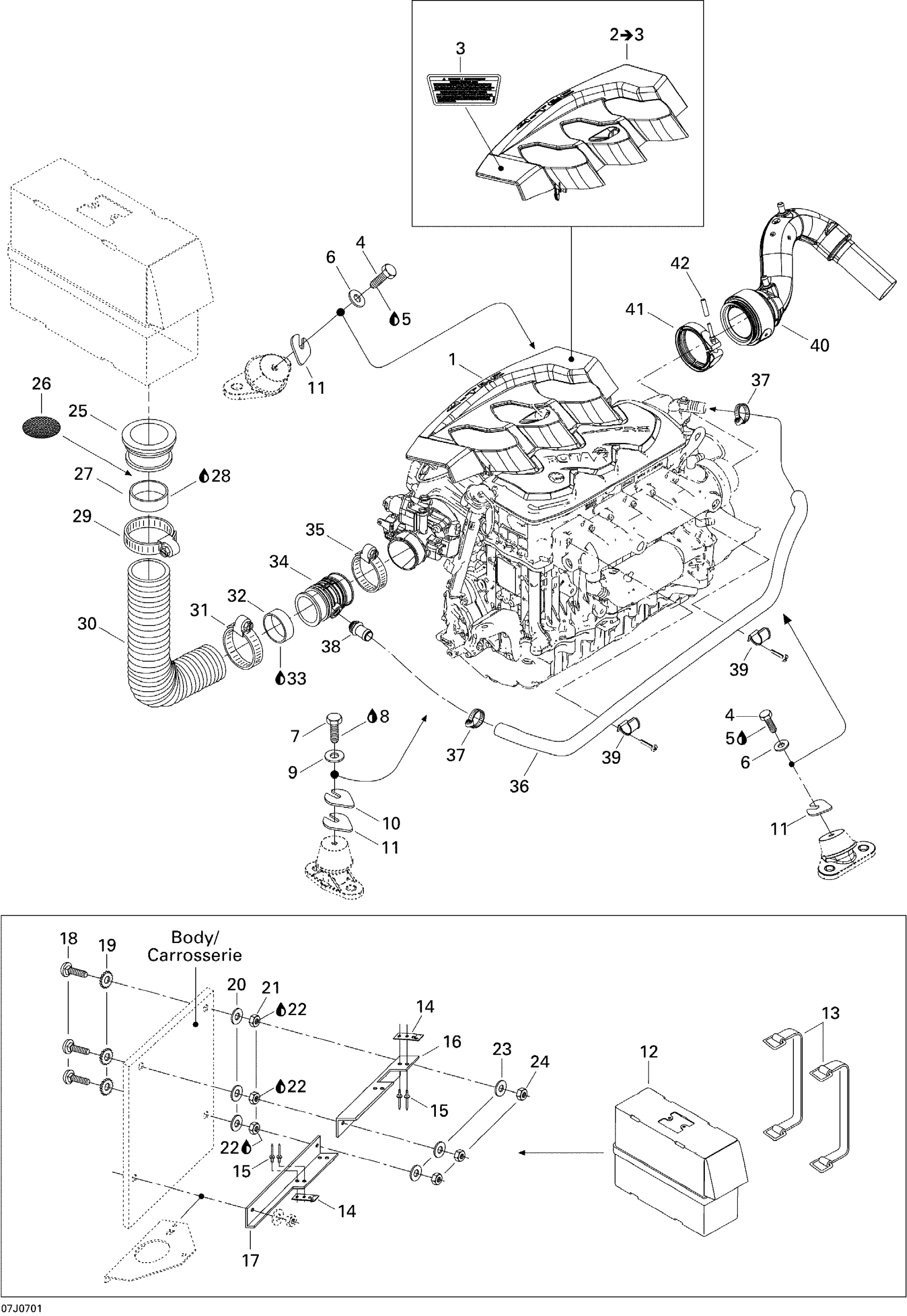

Sea-doo Speedster 150 155NA, 2007 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Rotax Engine 4 Strokes, 1503 NA

204250391

Unavailable

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

3

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

4

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

5

Loctite 243, 10 ml

293800060

$21.49

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

8

Loctite 243, 10 ml

293800060

$21.49

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

11

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

12

Air Silencer Ass'y

204250258

Unavailable

13

Retainer Strap

293850097

$11.64

14

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

15

Pop Rivet 3/16"

204000081

$1.49

16

Air Silencer Bracket, Upper

204250285

Unavailable

17

Air Silencer Bracket, Lower

204250284

Unavailable

18

Elevator Bolt

204000130

Unavailable

19

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

20

Stainless, Flat Washer 8 mm

234081600

$0.55

21

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

22

Loctite 271, 10 ml

293800005

$26.99

23

Flat Washer M6, Stainless

234062600

$0.77

24

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

25

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

Unavailable

26

Intake Screen

204250395

$25.99

27

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

28

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

29

Tridon Clamp

293650179

$11.49

30

INTAKE HOSE - Call your local BRP dealership

204340435

Unavailable

31

Tridon Clamp

293650179

$11.49

32

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

33

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

34

Adaptor Hose, Engine

204250276

Unavailable

35

TRIDON GEAR CLAMP - Call your local BRP dealership

293650061

Unavailable

36

Formed Hose

270000949

$47.99

37

Tridon Gear Clamp

293650051

$4.19

38

Breather Valve

273000234

$14.49

39

Retainer

275500664

$14.75

40

EXHAUST PIPE - Call your local BRP dealership

274001030

Unavailable

41

Exhaust Clamp This part replaces 274000959.

274001472

$58.99

42

Polyurethane Hose 10000Mm Long

219704410

$56.99
