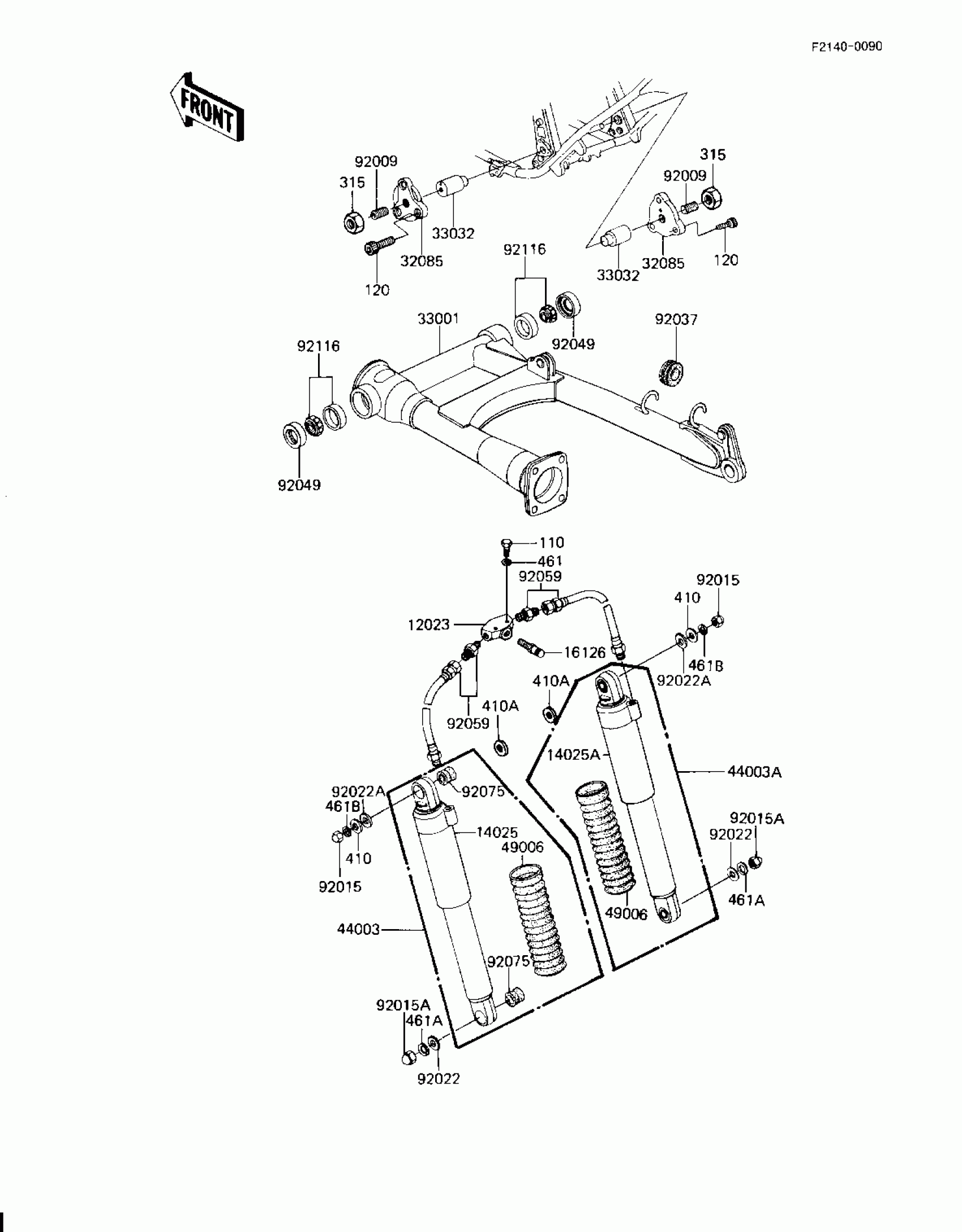

Kawasaki Spectre SWING ARM/SHOCK ABSORBERS Diagram
#
Description
Price
12023
HOLDER-VALVE,AIR
12023-1012
Unavailable
14025
COVER,SHOCKABSORBER,L
14025-1488
Unavailable
14025A
COVER,SHOCKABSORBER,R
14025-1489
Unavailable
16126
VALVE,AIR
16126-1052
$35.06
32085
STOPPER,SWING ARM
32085-1071
$39.28
33001
ARM-COMP-SWING
33001-1102
$243.40
33032
SHAFT-SWING ARM
33032-1021
Unavailable
44003
DAMPER-ASSY,RR,LH,GOL
44003-1239
$422.08
44003A
DAMPER-ASSY,RR,RH,GOL
44003-1240
$373.04
49006
BOOT,RR SHOCKABSORBER
49006-1077
Unavailable
92009
SCREW,SET,14X22
92009-1087
$8.96
92015
NUT,LOCK,CAP,12MM,BL
92015-1192
Unavailable
92015A
NUT,CAP,10MM,BLACK
92015-1203
$10.53
92022
WASHER,10.5X30X2.3,BLACK
92022-1302
$7.24
92022A
WASHER,12.4X28X2.3,B
92022-1303
Unavailable
92037
GROMMET,HOSE CLAMP
43064-007
$5.52
92049
SEAL-OIL,26406
92049-1030
$9.73
92059
TUBE,SHOCKABSORBER,RR
92059-1194
$71.55
92075
DAMPER,SHOCKABSORBER
92075-1141
$14.90
92116
BEARING-ROLLER,4T30203E1
92116-1001
$38.04
110
BOLT-UPSET 6X14
112B0614
Unavailable
120
BOLT-SOCKET,8X20
120S0820
$4.15
315
NUT-HEX-FINE,14MM
315B1400
$2.03
410
WASHER-PLAIN-SMALL,12MM,BLACK
410F1200
$4.58
410A
WASHER-PLAIN-SMALL,14MM,BLACK
410F1400
$3.93
461
WASHER SPRING 6MM
461F0600
$0.69
461A
WASHER-SPRING,10MM,BLACK
461K1000
$2.44
461B
WASHER-SPRING,12MM,BLACK
461K1200
Unavailable
