Description

Price

13159

CONNECTOR

13159-1009

Unavailable

43010A

ROD-ASSY-BRAKE,RR/MASTER CYL

43010-5006

Unavailable

43015A

CYLINDER-ASSY-MASTER,RR

43015-1134

$462.58

43020A

PISTON-COMP-BRAKE

43020-1035

Unavailable

43026

CAP-BRAKE

43026-1016

$36.42

43027

PLATE-DIAPHRAGM

43027-1005

$6.52

43028

DIAPHRAGM

43028-1016

$23.41

43049

PACKING

43049-1008

$13.85

43058

RING,ROD STOPPER

43058-004

$7.64

43059

HOSE-BRAKE

43059-1180

Unavailable

43059A

HOSE-BRAKE,RR,L=138

43059-1100

Unavailable

43078

RESERVOIR

43078-1009

$34.49

49016A

COVER-SEAL,MASTER CYLINDER

49016-1034

$15.94

49016B

COVER-SEAL,BRK PISTON

49016-1047

Unavailable

92001

BOLT,OIL,L=23

92002-1888

$5.48

92001A

BOLT,FLANGED,8X28,BLACK

92001-1508

Unavailable

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92037A

CLAMP,BRAKE HOSE

92037-1386

$10.53

92043

PIN,8X16

92043-1013

$9.91

92081

SPRING,HOSE PROTECTER

92081-1335

$15.50

130

BOLT,FLANGED,6X20

130B0620

$1.69

481

CIRCLIP-TYPE-C,25MM

481J2500

$3.07

550

PIN COTTER 2.0X15

550D2015

$1.04

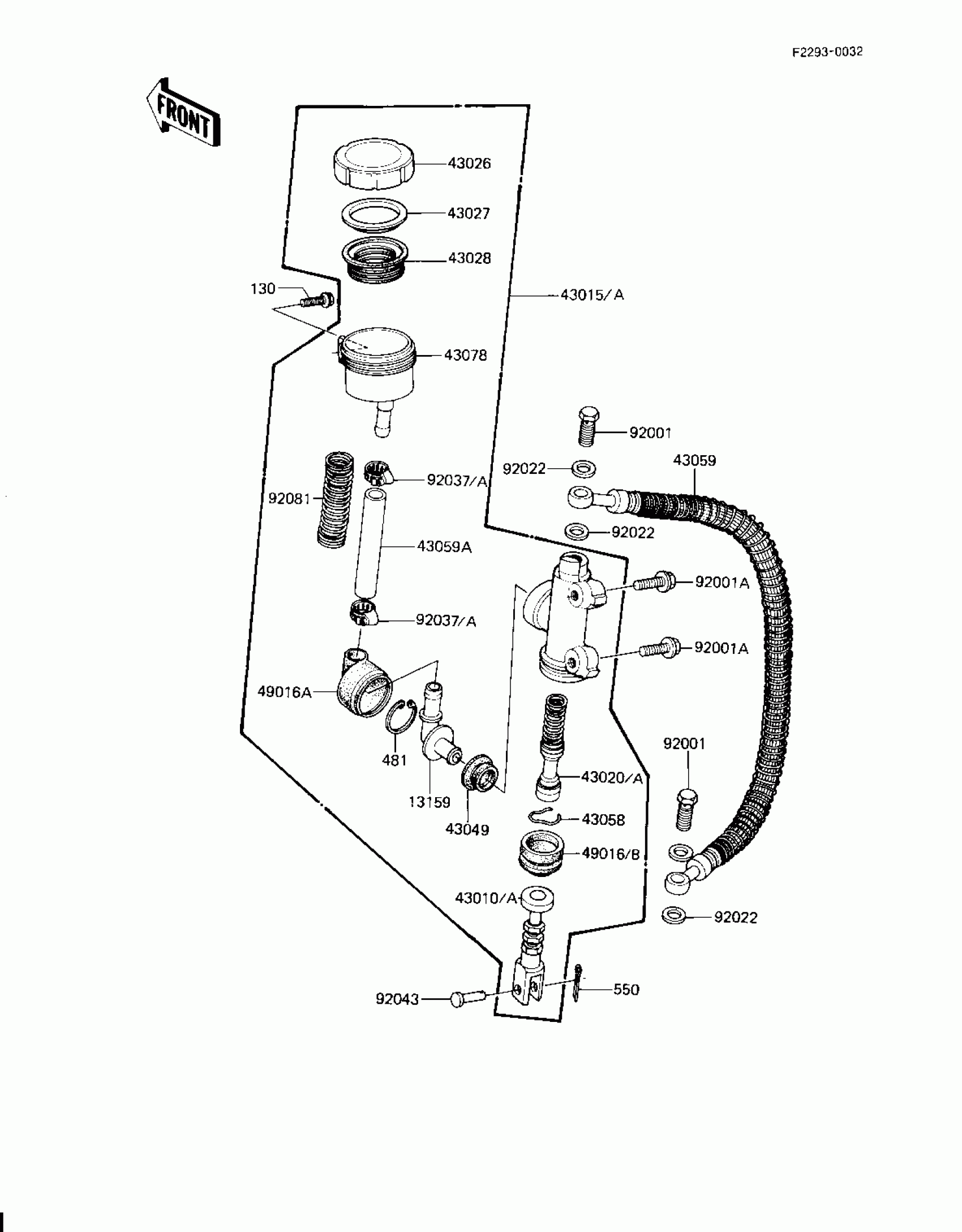

Kawasaki Spectre REAR MASTER CYLINDER Diagram

CONNECTOR

ROD-ASSY-BRAKE,RR/MASTER CYL

CYLINDER-ASSY-MASTER,RR

PISTON-COMP-BRAKE

CAP-BRAKE

PLATE-DIAPHRAGM

DIAPHRAGM

PACKING

RING,ROD STOPPER

HOSE-BRAKE

HOSE-BRAKE,RR,L=138

RESERVOIR

COVER-SEAL,MASTER CYLINDER

COVER-SEAL,BRK PISTON

BOLT,OIL,L=23

BOLT,FLANGED,8X28,BLACK

WASHER,10.5X15X1.5

CLAMP,BRAKE HOSE

PIN,8X16

SPRING,HOSE PROTECTER

BOLT,FLANGED,6X20

CIRCLIP-TYPE-C,25MM

PIN COTTER 2.0X15
