Description

Price

11009

GASKET,OIL PUMP

11009-1029

Unavailable

13169

PLATE,OIL FILTER

13169-1313

$10.65

14025

COVER,OIL FILTER,GOLD

14025-1420

Unavailable

14043

FILTER,OIL PUMP

16111-004

$44.36

16082

PUMP-ASSY-OIL

16082-5001

$637.41

16085

GEAR,OIL PUMP 49T

16085-019

$102.31

16126

VALVE,OIL FILTER

16126-1108

$41.98

52010

ELEMENT-OIL FILTER

16099-003

$12.20

92022

WASHER,20.5X30X1

92022-1012

$4.34

92026

WASHER,LOCK,16MM

92026-080

$4.69

92043

PIN,DOWEL,8X10

92043-1302

$1.03

92043A

PIN,SPRING,2X20

92043-111

$6.27

92055

RING-O,OD=18

92055-048

$4.80

92081

SPRING,OIL FILTER

92081-1018

$4.65

92081A

SPRING

92081-109

$11.29

130

BOLT,FLANGED,6X25

130G0625

$1.17

130A

BOLT-FLANGED,6X35

130G0635

$0.93

130B

BOLT-FLANGED,6X45

130G0645

$0.93

220

SCREW PAN HEAD 6X18

220B0618

$3.67

220A

SCREW PAN HEAD 6X28

220B0628

$3.41

482

CIRCLIP,7MM

482K7000

$3.81

551

PIN,DOWEL,3X14

551A0314

$0.73

600

BALL-STEEL,3/8"

600A1200

$1.56

670

O RING,16MM

670B2016

$1.36

176

O RING,90MM

671B2590

$9.91

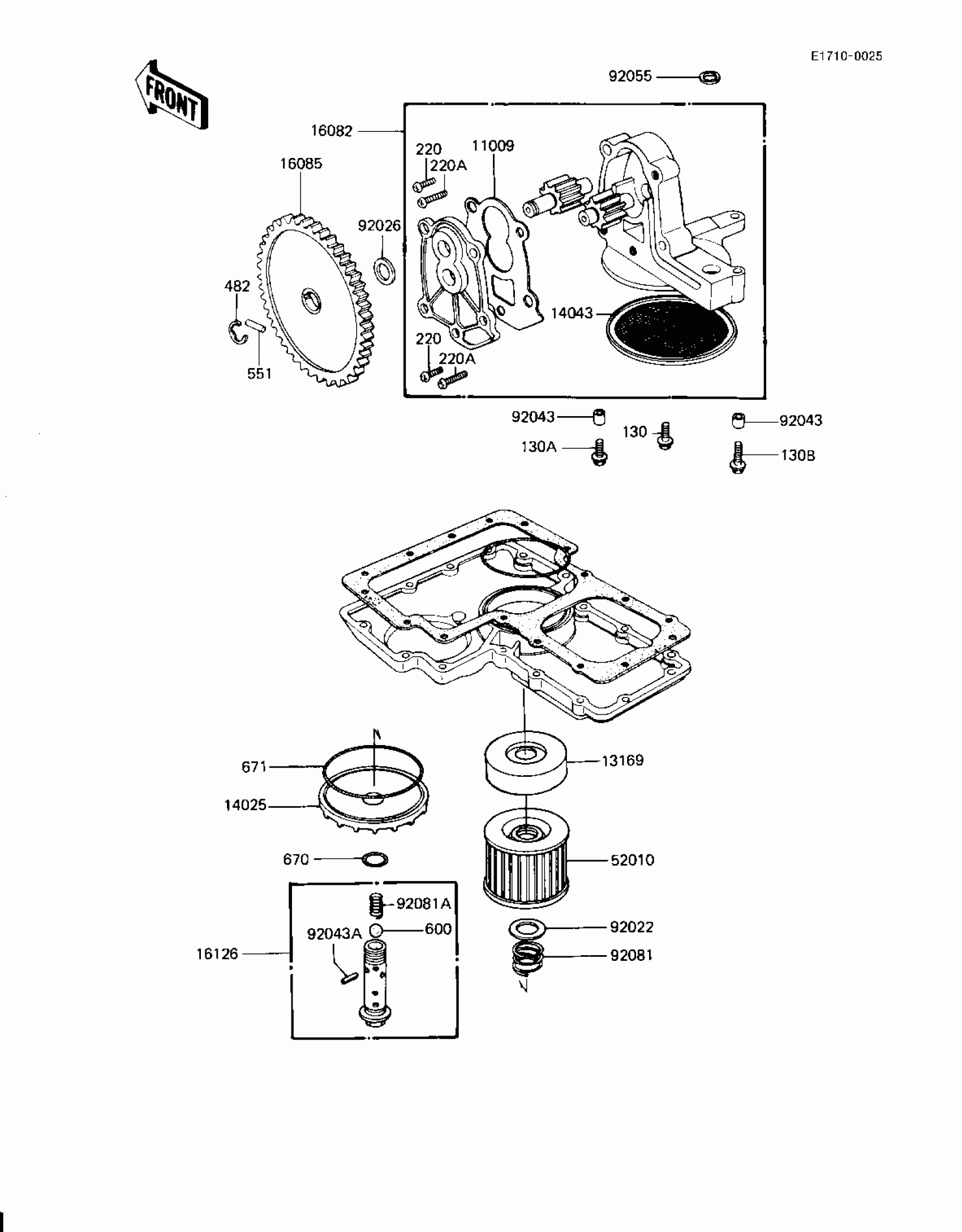

Kawasaki Spectre OIL PUMP/OIL FILTER Diagram
