Description

Price

11009

GASKET,MANIFOLD EXHAUST

11060-1068

$28.82

11009A

GASKET,EXHAUST PIPE

11009-1906

$11.06

14025

COVER,MUFFLER,LH,BLAC

14025-1412

Unavailable

14025A

COVER,MUFFLER,RH,BLAC

14025-1413

Unavailable

18001

MUFFLER,L.H.BLACK

18001-5080

$918.84

18001A

MUFFLER,RH,BLACK

18001-5081

$665.48

18049

PIPE-EXHAUST,#2,BLACK

18049-1192

$221.69

18049A

PIPE-EXHAUST,#3,BLACK

18049-1193

$138.63

18069

HOLDER-EXHAUST PIPE

18069-1019

$37.06

92015

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92015A

NUT,LOCK,10MM

92019-021

$6.11

92022

WASHER,10.5X22X4.5

92022-1022

$5.24

92022A

WASHER,CUP TYPE,BLACK

92022-1313

Unavailable

92027

COLLAR,EXHAUST PIPE,B

92027-1457

$7.75

92037

CLAMP,MUFFLER,BLACK

92037-1270

$20.77

92075

DAMPER

92075-1002

$6.22

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$17.44

113

BOLT HEX HEAD 10X80

113B1080

Unavailable

131

BOLT-FLANGED,10X55,BLACK

131J1055

$6.21

220

SCREW-PAN-CROS,6X45,BLACK

220C0645

$4.02

461

WASHER SPRING 10MM

461F1000

$0.67

461A

WASHER-SPRING,6MM,BLACK

461K0600

$0.64

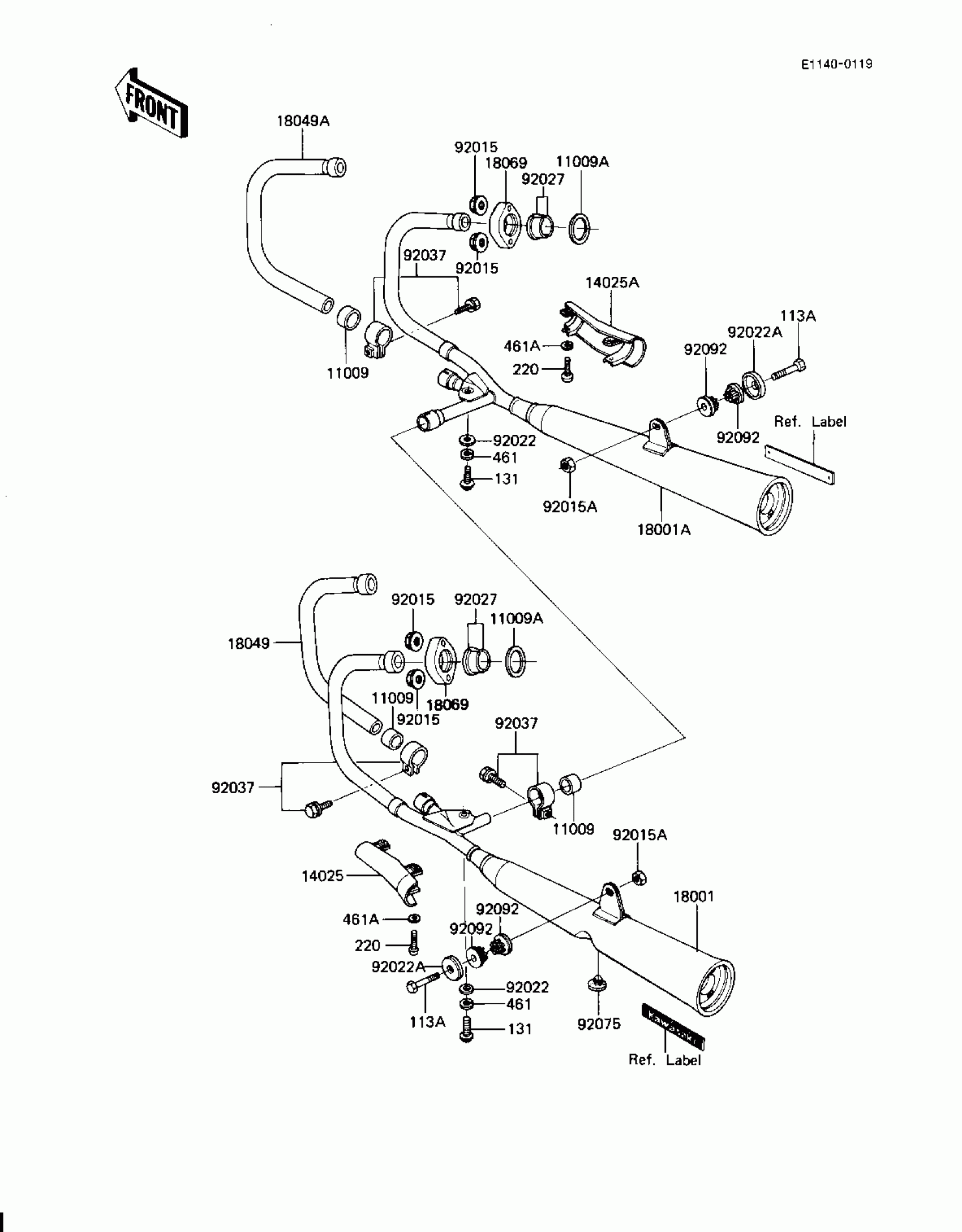

Kawasaki Spectre MUFFLERS Diagram

GASKET,MANIFOLD EXHAUST

GASKET,EXHAUST PIPE

COVER,MUFFLER,LH,BLAC

COVER,MUFFLER,RH,BLAC

MUFFLER,L.H.BLACK

MUFFLER,RH,BLACK

PIPE-EXHAUST,#2,BLACK

PIPE-EXHAUST,#3,BLACK

HOLDER-EXHAUST PIPE

NUT,CAP,8MM,BLACK

NUT,LOCK,10MM

WASHER,10.5X22X4.5

WASHER,CUP TYPE,BLACK

COLLAR,EXHAUST PIPE,B

CLAMP,MUFFLER,BLACK

DAMPER

BUSHING-RUBBER,MUFFLER

BOLT HEX HEAD 10X80

BOLT-FLANGED,10X55,BLACK

SCREW-PAN-CROS,6X45,BLACK

WASHER SPRING 10MM

WASHER-SPRING,6MM,BLACK
