Description

Price

13070

GUIDE,PAD

13070-1026

$10.11

41080

DISC,FR,SILVER

41080-1127

$626.75

43020

PISTON-COMP-BRAKE

43020-1096

Unavailable

43041

CALIPER-ASSY,FRONT-LH

43041-1062

$422.22

43041A

CALIPER-ASSY,FRONT-RH

43041-1063

$398.18

43045

SHAFT-CALIPER

43045-1007

$23.19

43045A

SHAFT-CALIPER

43045-1008

$23.19

43049

PACKING,PISTON SEAL

43049-002

$13.90

43056

BREATHER

43056-003

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1021

$75.05

49006

BOOT,PISTON

49006-1043

$13.85

49006A

BOOT,SHAFT

49006-1044

$8.68

92001

BOLT,DISC PLATE,8X30

92001-1951

$4.69

92001A

BOLT,FLANGED,10X41

92001-1355

$6.52

92001B

BOLT,FLANGED,8X25,BLACK

92001-1510

$8.76

92028

BUSHING,7.8X11X15.7

92028-1090

$8.05

92081

SPRING,PAD

92081-1229

$20.97

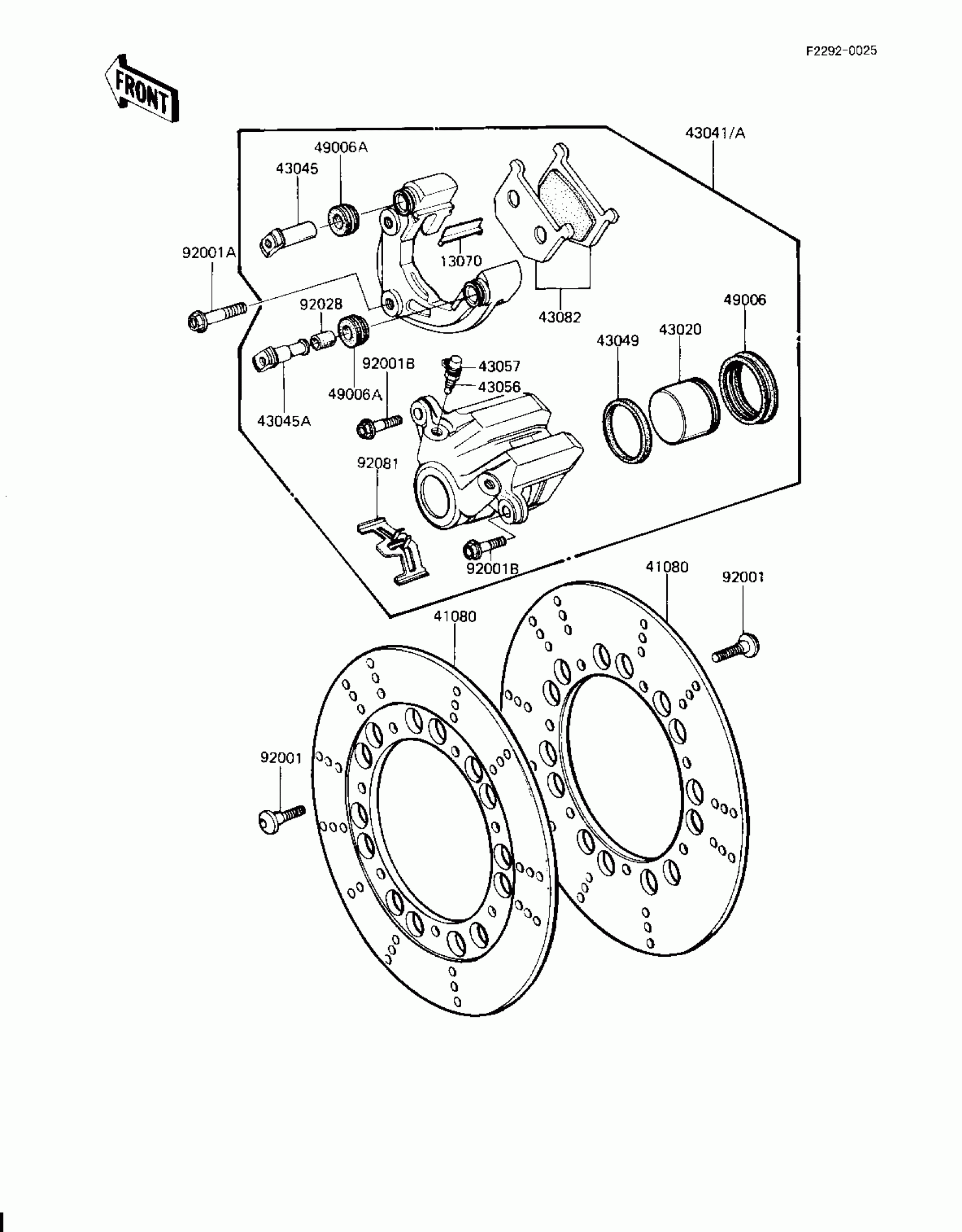

Kawasaki Spectre FRONT BRAKE Diagram

GUIDE,PAD

DISC,FR,SILVER

PISTON-COMP-BRAKE

CALIPER-ASSY,FRONT-LH

CALIPER-ASSY,FRONT-RH

SHAFT-CALIPER

SHAFT-CALIPER

PACKING,PISTON SEAL

BREATHER

CAP-BREATHER

PAD-ASSY-BRAKE

BOOT,PISTON

BOOT,SHAFT

BOLT,DISC PLATE,8X30

BOLT,FLANGED,10X41

BOLT,FLANGED,8X25,BLACK

BUSHING,7.8X11X15.7

SPRING,PAD
