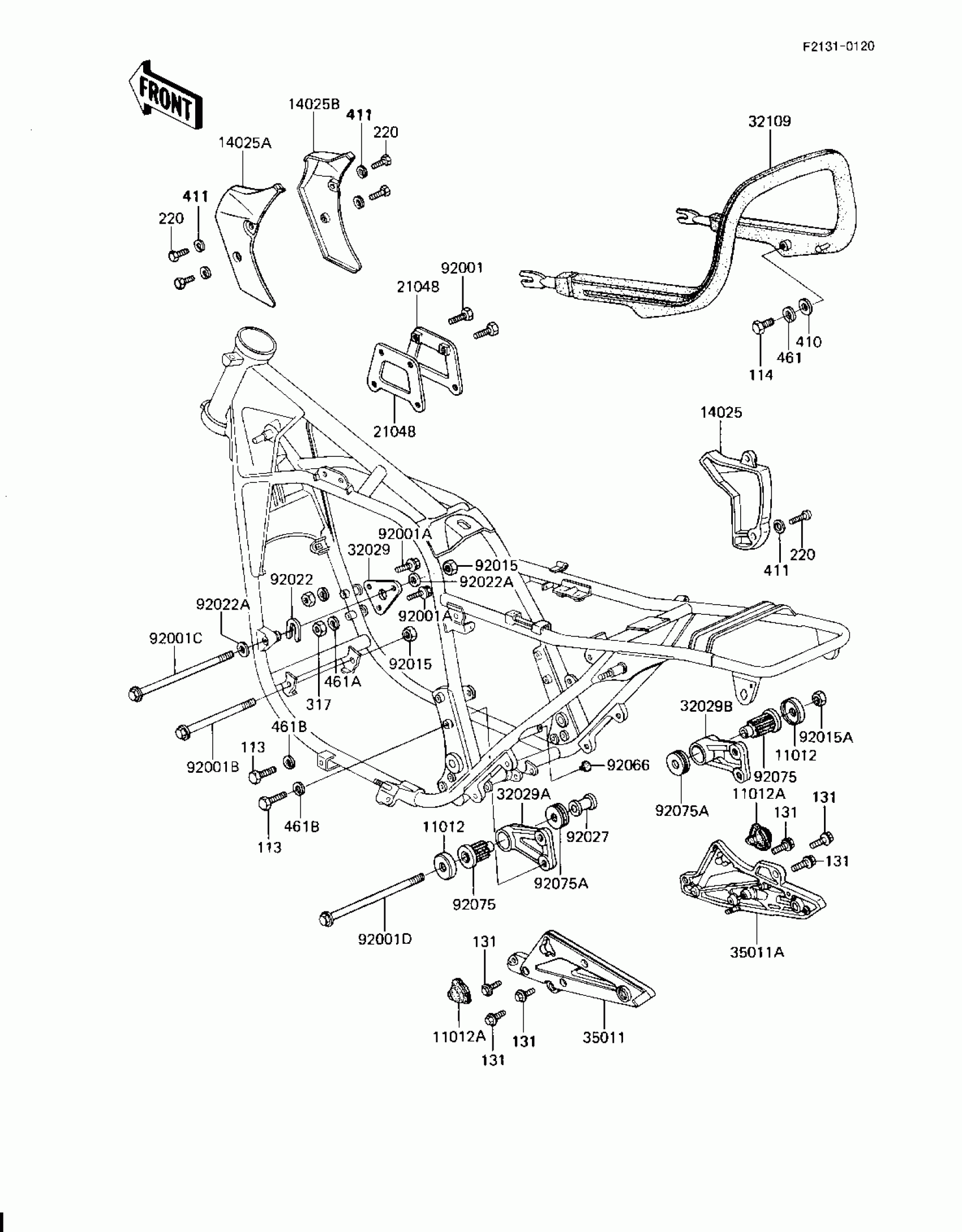

Kawasaki Spectre FRAME FITTINGS Diagram

#

Description
Price

11012

CAP,ENG MOUNT DAMPER

11012-1182

Unavailable

11012A

CAP,MUFFLER STAY

11012-1240

Unavailable

14025

COVER,ORNAMENT,RH

14025-1375

Unavailable

14025A

COVER,FUEL TANK,LH,BL

14025-1388

Unavailable

14025B

COVER,FUEL TANK,RH,BL

14025-1389

Unavailable

21048

PLATE-COIL

21048-1001

$20.77

32029

BRACKET-ENGINE,FR,UPP

32029-1142

$19.74

32029A

BRACKET-ENGINE,RR,LH

32029-1163

$44.64

32029B

BRACKET-ENGINE,RR,RH

32029-1164

$49.83

32109

GRIP-FRAME,BLACK

32109-1030

Unavailable

35011

STAY,MUFFLER,LH

35011-1109

$193.44

35011A

STAY,MUFFLER,RH

35011-1110

$194.41

92001

BOLT,6X10

92001-137

$6.52

92001A

BOLT,FLANGED,8X65,BLACK

92001-1616

$9.00

92001B

BOLT,FLANGED,10X155,BLACK

92001-1620

$24.03

92001C

BOLT,FLANGED,10X320,BLACK

92001-1624

$34.51

92001D

BOLT,FLANGED,10X320,B

92001-1625

$41.18

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92015A

NUT,LOCK,12MM,BLACK

92015-1190

$7.34

92022

WASHER,U FORMED

92022-1259

$7.98

92022A

WASHER,10.5X22X4.5

92022-1022

$5.24

92027

COLLAR,13X25X39.5,BLA

92027-1433

$14.55

92066

PLUG,FRAME END,12X13

92066-1034

$4.65

92075

DAMPER,ENG MOUNT,RR,I

92075-1330

Unavailable

92075A

DAMPER,ENG MOUNT,RR,S

92075-1331

$11.13

113

BOLT-SMALL, 10X45,BLK

113J1045

$5.69

114

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

131

BOLT-FLANGED,8X35,BLA

131J0835

$2.66

220

SCREW-PAN-CROS, 6X14

220C0614

$1.92

317

NUT-HEX-SMALL,8MM,BLACK

317C0800

$0.69

410

WASHER PLAIN 8MM

410B0800

$0.93

411

WASHER PLAIN

411F0600

$1.18

461

WASHER SPRING 8MM

461F0800

$0.40

461A

WASHER-SPRING,8MM,BLACK

461K0800

$2.33

461B

WASHER-SPRING,10MM,BLACK

461K1000

$2.44
