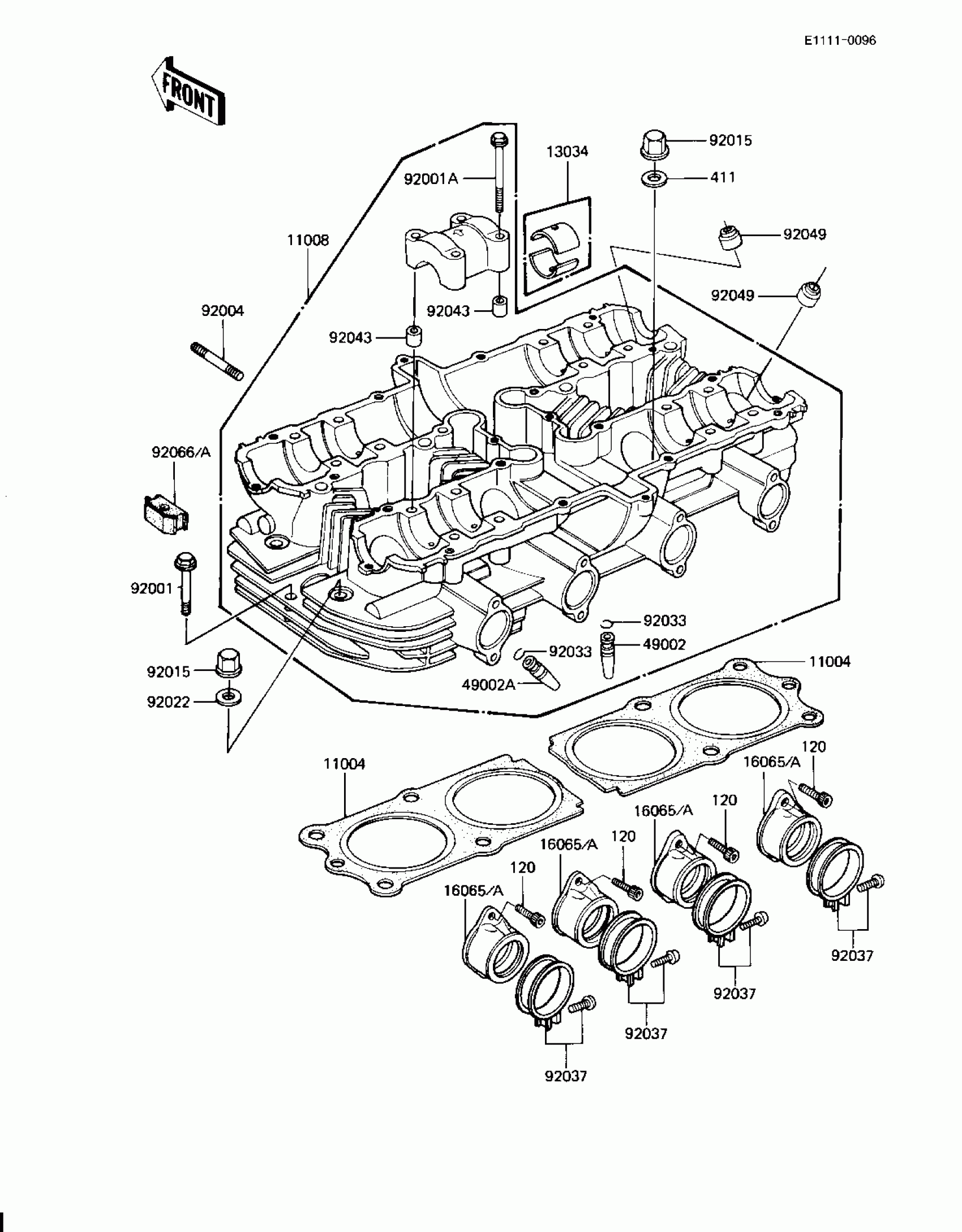

Kawasaki Spectre CYLINDER HEAD Diagram

#

Description
Price

11004

GASKET-HEAD,CYLINDER

11004-1105

Unavailable

11008

HEAD-COMP-CYLINDER,GO

11008-1040

Unavailable

13034

BUSHING,CAMSHAFT

13034-030

$22.16

16065A

HOLDER-CARBERTOR

16065-1131

$75.75

49002

GUIDE-VALVE,INTAKE

12013-009

$27.29

49002A

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

92001

BOLT,FLANGED,6X45

92003-092

$7.58

92001A

BOLT,6X43

92002-1881

$7.24

92004

STUD,8X30

92004-1069

$7.51

92015

NUT,FLANGED CAP,10MM

92015-076

$13.08

92022

WASHER,10.5X22X1.6

92022-1005

$5.01

92033

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92037

CLAMP,ID=53,BLACK

92037-1304

$10.28

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92049

SEAL-OIL,RV37129.5

92049-016

$18.35

92066A

PLUG,CYLINDER HEAD COVER

92066-1106

$28.22

120

BOLT-SOCKET,6X16

120S0616

$1.23

411

WASHER-PLAIN,10MM

411B1000

$0.93
