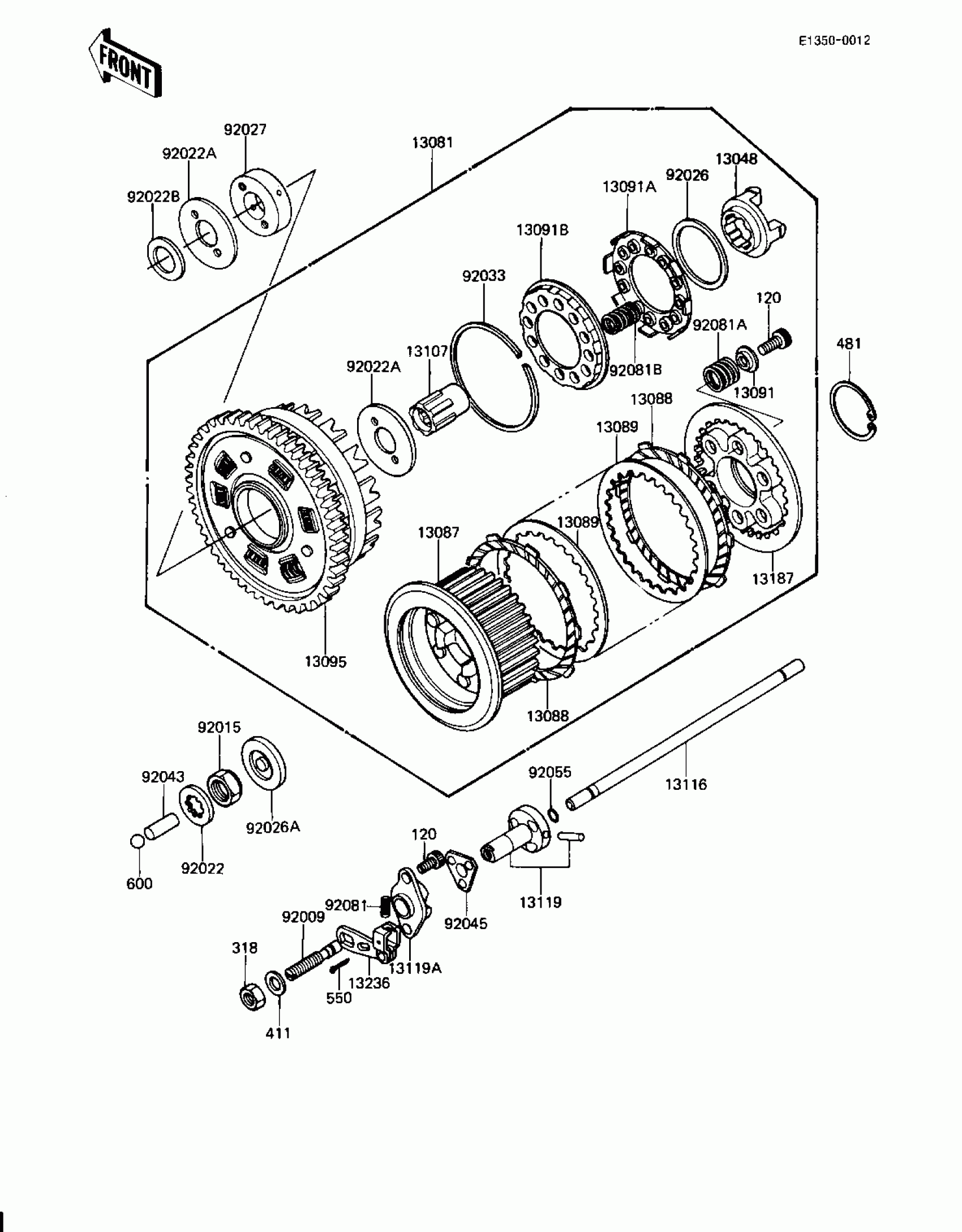

Kawasaki Spectre CLUTCH Diagram
#
13048
CAM-DAMPER
13048-1007
$91.65
13081
CLUTCH-ASSY
13081-1063
Unavailable
13087
HUB,CLUTCH
13087-1009
Unavailable
13088
PLATE-FRICTION
13088-1013
$15.76
13089
PLATE-CLUTCH,T=2.3
13089-1004
$13.16
13091
HOLDER,CLUTCH SPRING
13091-1041
$12.23
13091A
HOLDER,DAMPER SPRING,RH
13091-1042
$25.81
13091B
HOLDER,DAMPER SPRING,LH
13091-1043
$25.81
13095
HOUSING-COMP-CLUTCH
13095-1037
$602.50
13107
SHAFT,CLUTCH
13107-1024
Unavailable
13116
ROD,CLUTCH PUSH
13116-1007
Unavailable
13119
CAM-RELEASE,CLUTCH,INNER
13119-1007
Unavailable
13119A
CAM-RELEASE,CLUTCH,OUTER
13119-1008
Unavailable
13187
PLATE,CLUTCH OPERATNG
13187-1004
Unavailable
13236
LEVER ASSY,CLUTCH REL
13236-1012
Unavailable
92009
SCREW,8MM
92009-1052
Unavailable
92015
NUT,20MM
92015-1555
$13.08
92022
WASHER,TOOTHED,25X40X5
92022-1114
$14.90
92022A
WASHER,CLUTCH THRUST
92022-1221
$15.04
92022B
WASHER,25.3X36X2.5
92022-1223
$8.60
92026
SPACER,59X70X3.5
92026-1043
$27.73
92026A
SPACER,CLUTCH
92026-1065
Unavailable
92027
COLLAR,25X57X16.1
92027-1284
$87.84
92033
RING-SNAP
92033-1029
$15.74
92043
PIN,PUSH ROD
92043-1051
Unavailable
92045
BEARING-BALL,CLUTCH RELEASE
92045-1023
$10.09
92055
O RING,5MM
670B1505
$3.26
92081
SPRING,CLUTCH RELEASE
92081-069
$7.51
92081A
SPRING,CLUTCH
92081-1114
$7.55
92081B
SPRING,CLUTCH DAMPER
92081-1115
$7.55
120
BOLT-SOCKET,6X16
120S0616
$1.23
318
NUT-HEX-SMALL,8MM
318B0800
$0.59
411
WASHER PLAIN 8MM
411B0800
$0.93
481
CIRCLIP,50M/M
481J5000
$6.23
550
PIN-COTTER,1.6X15
550D1615
$2.51
600
BALL-STEEL,3/8"
600A1200
$1.56
