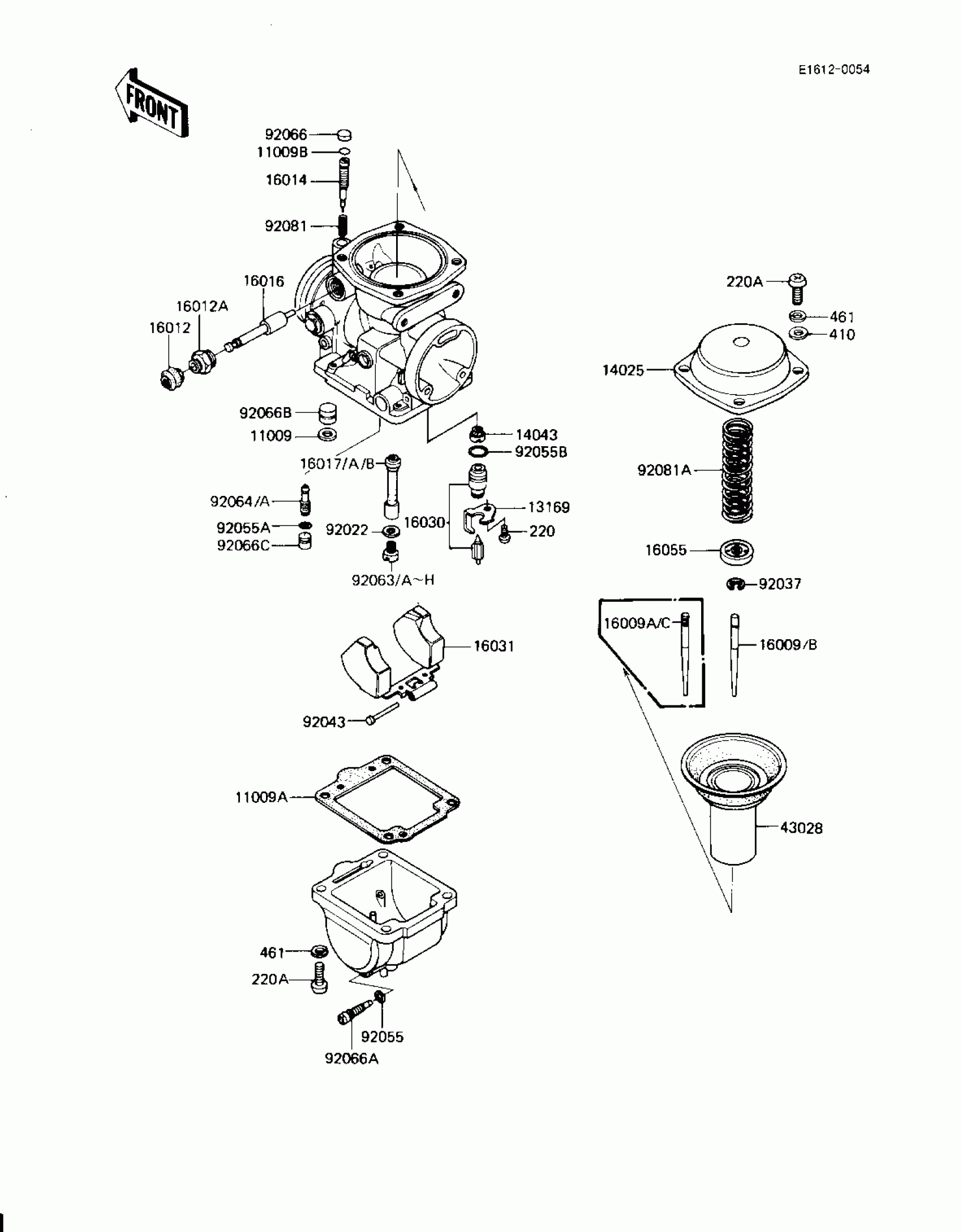

Kawasaki Spectre CARBURETOR PARTS Diagram

#

Description
Price

11009A

GASKET,FLOAT CHAMBER

11009-1241

Unavailable

11009B

GASKET,"O"RING

16038-022

$6.89

13169

PLATE,FLOAT VALVE

13169-1482

$7.22

14025

TOP-CHAMBER,MIXING

14025-1527

Unavailable

14043

FILTER,FLOAT VALVE

14043-1010

$14.86

16009B

NEEDLE-JET,5CF59

16009-1131

Unavailable

16009C

NEEDLE-JET,5CF58 (Canada)

16009-1132

Unavailable

16012

CAP-STARTER PLUNGER,RUBBER

16012-1010

$25.51

16012A

CAP-STARTER PLUNGER

16012-1011

$16.53

16014

SCREW-PILOT AIR

16014-1014

$27.54

16016

PLUNGER

16016-1019

$47.66

16017B

JET-NEEDLE,#AY-2

16017-1119

Unavailable

16030

VALVE-FLOAT,2.5

16030-1016

$58.86

16031

FLOAT

16031-1013

$64.88

16055

PLATE,NEEDLE

16055-010

$12.37

43028

DIAPHRAGM,VALVE

43028-1025

Unavailable

92022

WASHER,MAIN JET

16034-001

$4.31

92037

CLAMP,E-TYPE

16008-014

$9.64

92043

PIN,FLOAT

16032-008

$6.57

92055

RING-O

92055-044

$10.38

92055A

"O" RING,CHECK VALVE

92055-1059

$11.60

92055B

RING-O

92055-1105

$5.00

92063

JET-MAIN,#A127.5

92063-1100

$14.10

92063A

JET-MAIN,#A122.5

92063-1101

$14.10

92063B

JET-MAIN,#A125

92063-1102

$14.10

92063D

JET-MAIN,#A130

92063-1103

$14.10

92063F

JET-MAIN,#A120

92063-1106

$18.50

92064

JET-PILOT,#A37.5

92064-1036

$19.96

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92066A

PLUG,DRAIN

92066-1064

$12.37

92066C

PLUG,PILOT JET

92066-1087

$6.38

92081

SPRING,PILOT SCREW

16022-016

$9.10

92081A

SPRING,DIAPHRAGM VALVE

92081-1363

$26.16

220

SCREW PAN HEAD 4X6

220B0406

$1.67

220A

SCREW-PAN-CROS,5X16,BLACK

220C0516

$1.71

410

WASHER PLAIN

410F0500

$1.43

461

WASHER-SPRING,5MM,BLACK

461K0500

$1.49
