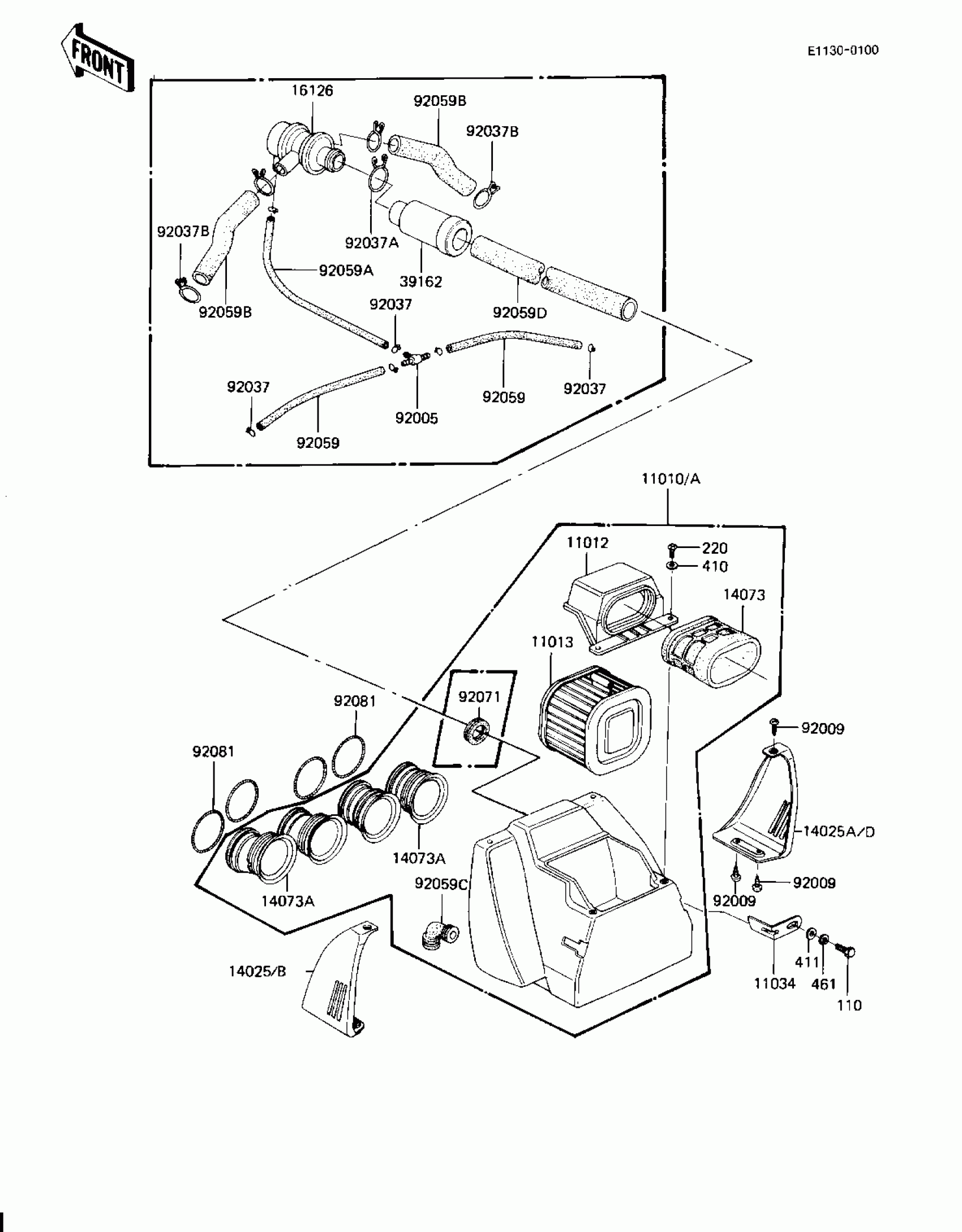

Kawasaki Spectre AIR CLEANER Diagram
#
Description
Price
11010
FILTER-ASSY-AIR (Canada)
11010-1115
Unavailable
11010A
FILTER-ASSY-AIR
11010-1143
Unavailable
11012
CAP,AIR FILTER
11012-1167
$36.70
11013
ELEMENT,AIR CLNR
11013-1037
$25.01
11034
BRACKET,AIR CLEANER
32070-038
$5.86
14025B
COVER,AIR FILTER,LH,B
14025-1507
Unavailable
14025D
COVER,AIR FILTER,RH,B
14025-1508
Unavailable
14073
DUCT,AIR FILTER,INTAK
14073-1049
$35.78
14073A
DUCT,AIR FILTER,OUTLE
14073-1055
$47.69
16126
VALVE,AIR SWITCH
16126-1014
$200.34
39162
SILENCER-INTAKE
39162-1003
$68.27
92005
FITTING,TUBE,T-TYPE
92005-1017
Unavailable
92009
SCREW,TAPPING,5X12,BL
92009-1138
$3.96
92037
CLAMP,TUBE
92037-072
$7.22
92037A
CLAMP,TUBE
92037-1076
$7.22
92037B
CLAMP,TUBE
92037-213
$4.31
92059
TUBE,VACUUM,LONG
92059-1162
$19.09
92059A
TUBE,VACUUM,LONG
92059-1162
$19.09
92059B
TUBE,14X20X89
92059-1155
$16.50
92059C
TUBE,AIR FILTER BLEED
92059-1170
$26.25
92059D
TUBE,14X20X340
92059-1171
Unavailable
92071
GROMMET,AIR FILTER
92071-1042
$7.27
92081
SPRING,COIL,BLACK
92081-1457
$11.40
110
BOLT-UPSET,6X12
112G0612
$1.45
220
SCREW PAN HEAD 6X12
220B0612
Unavailable
410
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
411
WASHER PLAIN 6MM
411B0600
$2.84
461
WASHER SPRING 6MM
461F0600
$0.69
