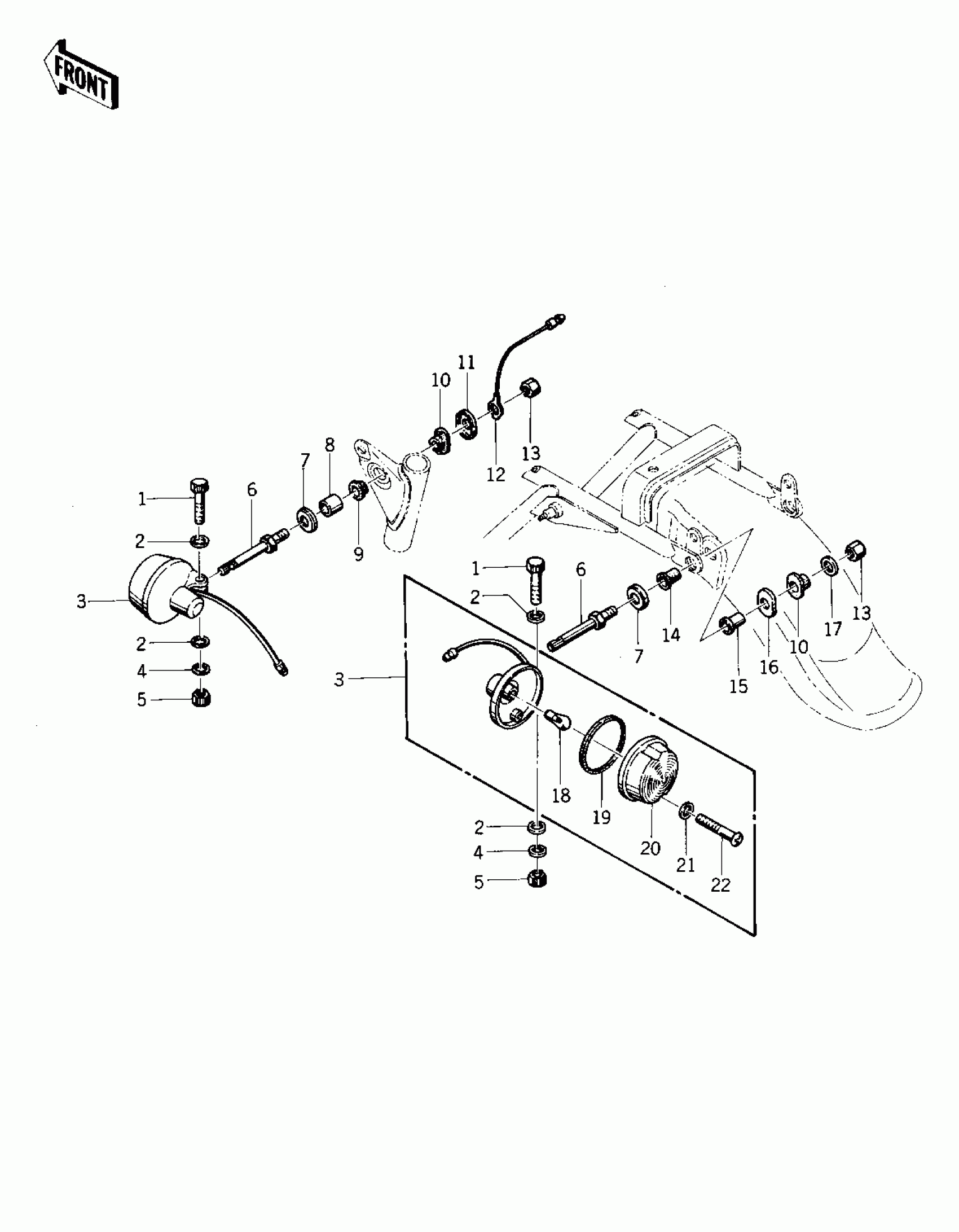

Kawasaki Special TURN SIGNALS ('75 S) Diagram
#
Description
Price
1
BOLT HEX HEAD 6X36
110N0636
$3.38
2
WASHER,PLAIN,6MM
410D0600
$0.77
3
LAMP-TURN SIGNAL
23040-029
$153.16
4
WASHER SPRING 6MM
461F0600
$0.69
5
NUT 6MM
312B0600
$0.72
6
BKT TURN SIGNL LIGHT
23051-049
$58.02
7
CAP,SIGNAL LIGHT STAY
92102-015
Unavailable
8
COLLAR,12.7X15.9X19
92027-223
$6.05
9
DAMPER RUBBER,SIG LM
92075-158
$5.47
9
DAMPER RUBBER,SIG LM
92075-158
$5.47
10
DAMPER RUBBER,SIGNAL
92075-238
$5.27
11
CAP,FR SIG LIGHT STAY
92102-014
$5.27
12
WIRE TURN SIGNAL LEAD
26011-081
$10.14
13
NUT-HEX-FINE
315B1200
$0.93
14
DAMPER RUBBER,SIGNAL
92075-241
$3.42
15
COLLAR,RR SIG LIGHT
92027-225
$9.58
16
CAP,RR SIG LIGHT STAY
92102-013
$3.71
17
WASHER PLAIN 12MM
411B1200
$0.93
18
BULB,12V 32CP(23W)
92069-055
$5.18
19
GASKET,TURN SIGNAL LAMP
23050-002
$4.97
20
LENS-SIGNAL LAMP,"6.1445"MARK
23048-1024
$10.96
20
LENS-SIGNAL LAMP,"6.1445"MARK
23048-1024
Unavailable
21
WASHER,PLAIN,4MM
23058-002
$2.49
22
SCREW-PAN HEAD,4X35
220E0435A
$8.56
