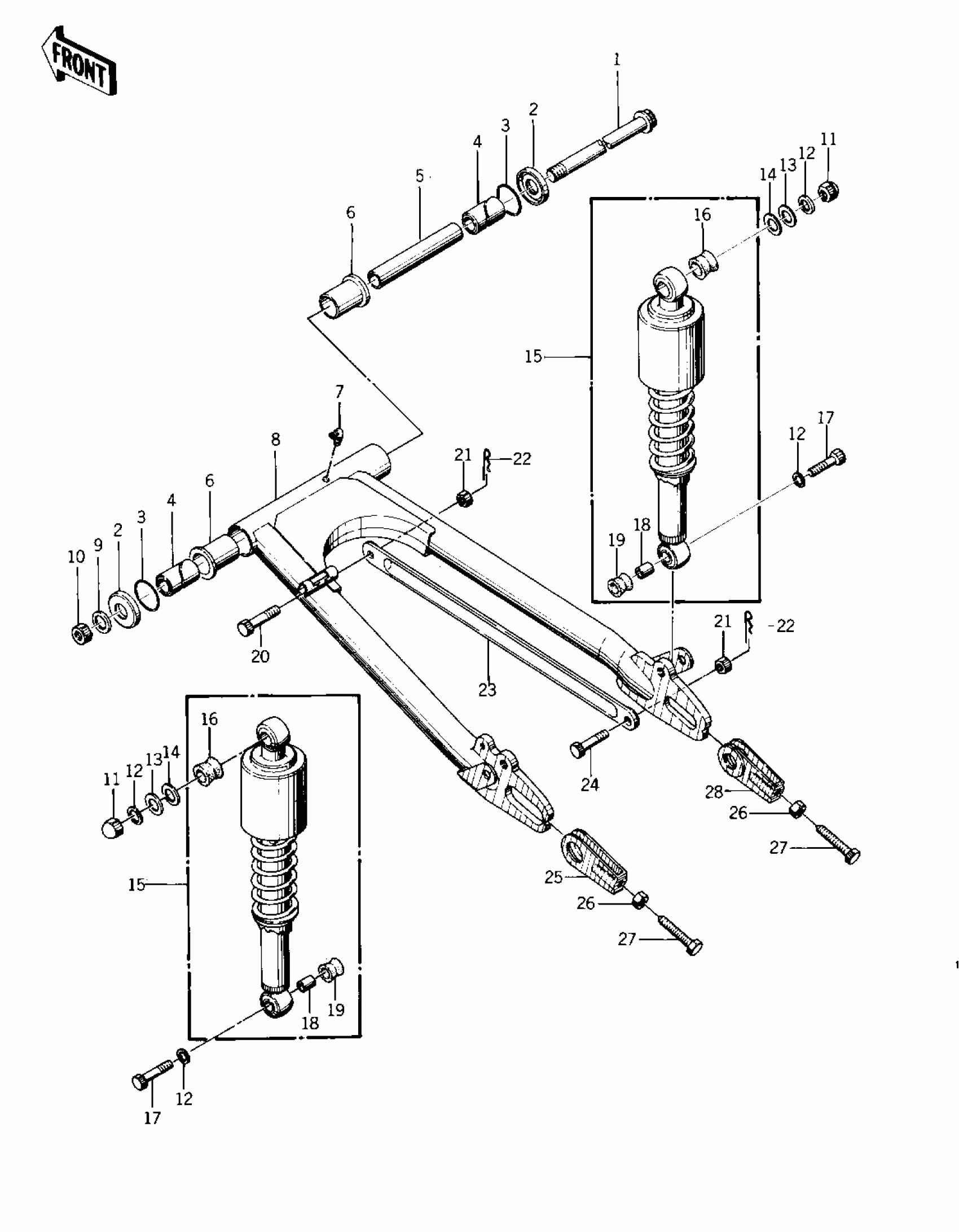

Kawasaki Special SWING ARM/SHOCK ABSORBERS ('75 S) Diagram

#

Description
Price

1

SHAFT,SWING ARM PIVOT

33032-046

$65.01

2

CAP-SWING ARM

33035-004

Unavailable

3

"0" RING,30MM

671B2530

$5.05

4

SLEEVE-SWING ARM,SHRT

33034-013

Unavailable

5

COLLAR,SWING ARM

33036-006

$4.60

6

BUSHING-SWING ARM

33033-009

Unavailable

7

GREASE NIPPLE

92005-002

Unavailable

8

ARM,SWING

33001-073

$152.38

9

WASHER BRAKE PEDAL

92022-085

$3.92

10

NUT-LOCK,14MM

92019-011

Unavailable

11

NUT,CAP,10MM

92020-003

$6.52

12

WASHER SPRING 10MM

461F1000

$0.67

13

WASHER-PLAIN,10MM

411B1000

$0.93

14

WASHER,10.5X26X2.3

92022-044

$3.92

15

SHOCK ABSBR RR

45014-101

$254.93

16

DAMPER,SHOCKABSORBER

45017-015

Unavailable

17

BOLT HEX HEAD 10X35

113N1035

$9.14

18

COLLAR,SHOCKABSORBER

45016-008

$9.91

19

DAMPER,SHOCKABSORBER

45017-012

$14.90

20

BOLT,10X29

92003-096

$10.72

21

NUT-HEX-FINE,10MM

314B1000

$0.67

22

PIN-SNAP,8MM

554A0800

$1.26

23

TORQUE LINK REAR BRK

43007-016

Unavailable

24

BOLT,10X35

92003-034

$13.21

25

ADJUSTER,CHAIN,L.H

33040-062

$23.93

26

NUT 8MM

312B0800

$0.58

27

BOLT,8X50

92001-1399

$9.48

28

ADJUSTER-CHAIN

33040-043

$28.47
