1977 Kawasaki Special Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1977 Kawasaki Special, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

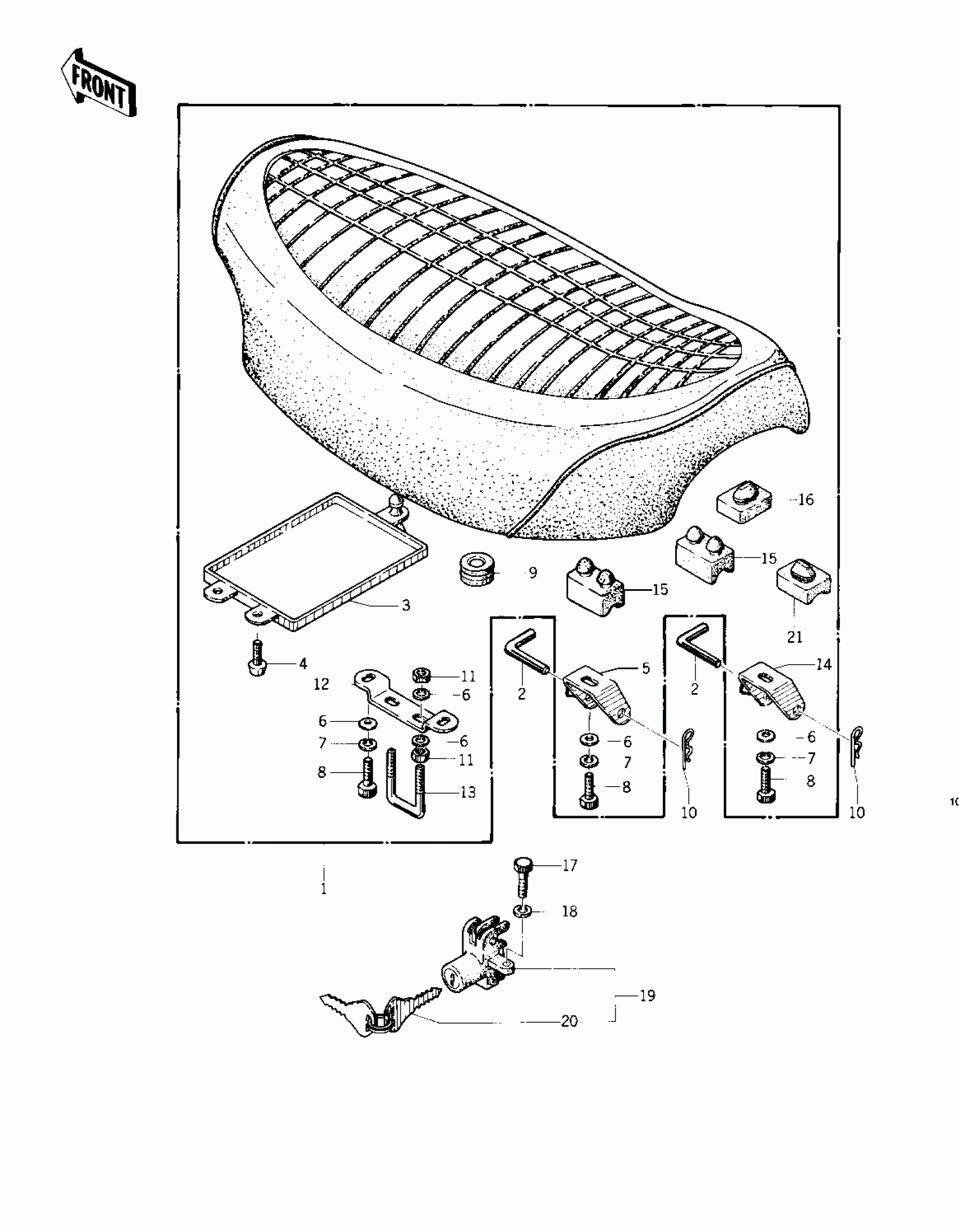

1977 Kawasaki Special Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT-ASSY,DUAL

53001-127

1
Out of stock

2

PIN,SEAT PIVOT

92043-1064

1
Out of stock

2

PIN,SEAT PIVOT

92043-1064

—
Out of stock

3

CASE,MANUAL

32099-011

1
Out of stock

4

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

5

HINGE,FRONT

53009-035

1
Out of stock

6

WASHER PLAIN 6MM

411B0600

1
Out of stock

7

WASHER SPRING 6MM

461F0600

1
Out of stock

8

BOLT-UPSET 6X14

112B0614

1
Out of stock

9

GROMMET

92071-056

1
Out of stock

10

COTTER PIN

92041-003

1
Out of stock

11

NUT 6MM

311B0600

1
Out of stock

12

BRACKET, SEAT CATCH

53058-001

1
Out of stock

13

HOOK,SEAT

53056-002

1
Out of stock

14

HINGE,REAR

53009-036

1
Out of stock

15

DAMPER RUBBER,SEAT

92075-139

1
Out of stock

16

DAMPER

92075-099

1
Out of stock

17

BOLT-UPSET,6X12

112G0612

1
Out of stock

18

WASHER SPRING 6MM

461F0600

1
Out of stock

19

LOCK ASSY,SEAT

27030-002

1
Out of stock

21

DAMPER RUBBER-SEAT

92075-156

1
Out of stock
