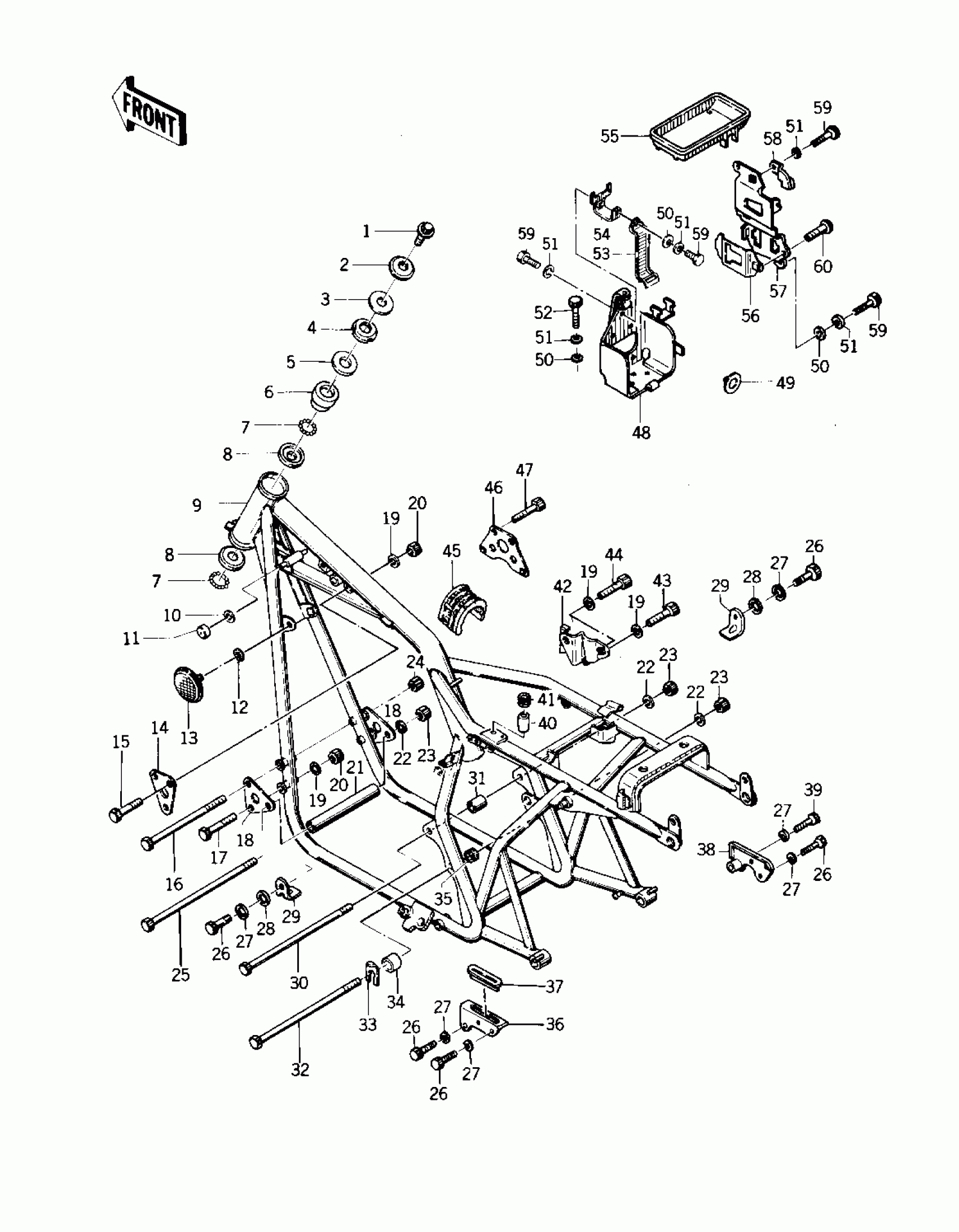

Kawasaki Special FRAME/FRAME FITTINGS ('76-'77 S2/S3) Diagram

#

Description
Price

1

BOLT,16X25.5

92007-031

$29.84

2

WASHER,16X41X4

92022-230

$10.90

3

WASHER,WAVE

46100-003

$10.42

4

NUT,30MM

92090-007

$11.71

5

CAP,STEERING STEM

46098-016

$6.51

6

RACE,STEERING STEM BEARING

92047-006

$12.67

7

BALL-STEEL,1/4

600A0800

$1.49

8

RACE,STEERING STEM BEARING

92048-006

$8.97

9

FRAME

32002-168

$842.19

9

FRAME

32002-168

$842.19

10

WASHER,10.5X26X2.3

92022-044

$3.92

11

DAMPER,FUEL TANK

92075-125

$6.22

12

DAMPER,REFLECTOR

92094-011

$4.60

13

REFLECTOR,REFLEX,REAR

28012-009

$23.76

14

PLATE,ENG MOUNT,UPPER

32030-038

Unavailable

15

BOLT FLANGED 8X55

92001-1398

$3.32

15

BOLT FLANGED 8X55

92001-1398

$3.32

16

BOLT,8X55

92001-1386

Unavailable

16

BOLT,8X55

92001-1386

Unavailable

17

BOLT,HEX HEAD,8X59

110G0859

Unavailable

17

BOLT,FLANGED,8X60

92001-1581

$5.14

18

PLATE,ENG MOUNT,FRNT

32030-044

Unavailable

19

WASHER SPRING 8MM

461F0800

Unavailable

20

NUT,8MM

311B0800

Unavailable

21

COLLAR,ENG PLAT,FRNT

92027-233

Unavailable

22

WASHER SPRING 10MM

461F1000

Unavailable

23

NUT,LOCK,10MM

92019-021

$4.55

24

NUT,LOCK,8MM

92015-1124

$5.42

24

NUT,LOCK,8MM

92015-1124

$5.42

25

BOLT,FLANGED,10X255

92001-1609

Unavailable

26

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

27

WASHER SPRING 8MM

461F0800

Unavailable

28

WASHER,8.5X20X1.6

92022-1561

$4.31

29

BRACKET,AIR CLEANER

32070-033

Unavailable

30

BOLT,FLANGED,10X220

92002-1197

$24.03

31

COLLAR,ENG MOUNT UPPE

92027-228

Unavailable

32

BOLT,HEX HEAD,10X292

92003-162

Unavailable

33

SHIM-ENG FIT FR,0.5MM

92025-053

Unavailable

33

SHIM-ENG FIT FR,0.8MM

92025-054

Unavailable

33

SHIM-ENG FIT FR,1.0MM

92025-055

Unavailable

33

SHIM-ENG FIT FR,1.6MM

92025-056

Unavailable

33

SHIM-ENG FIT FR,2.0MM

92025-057

Unavailable

33

SHIM-ENG FIT FR,2.3MM

92025-058

Unavailable

34

COLLAR

92027-250

Unavailable

35

COLLAR,ENG MOUNTING

92027-160

Unavailable

36

BRACKET,BASE

32129-008

$4.93

37

DAMPER

92075-280

Unavailable

38

BRACKET,BASE

32129-009

Unavailable

39

BOLT

92001-1578

$6.33

40

COLLAR,6.8X10X8.5

92027-129

$5.00

41

DAMPER RUBBER

92075-076

$4.78

42

PLATE,ENG MOUNT,REAR

32030-034

$10.98

43

BOLT,8X20

115G0820

Unavailable

44

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

45

DAMPER RUBBER,FL TNK

92075-215

Unavailable

46

BRACKET,IGNITON COIL

32058-049

$10.71

47

BOLT,FLANGED,6X11

92003-208

$4.31

48

CASE,BATTERY

32097-041

Unavailable

49

DAMPER,RUBBER

92075-078

$4.39

50

WASHER PLAIN 6MM

411B0600

Unavailable

51

WASHER SPRING 6MM

461F0600

Unavailable

52

BOLT 6X22

112B0622

Unavailable

53

BAND,BATTERY

92072-074

Unavailable

54

BRACKET,BATTERY CASE

32093-010

$2.80

55

CASE,TOOL

32098-025

$14.95

56

BRACKET,ELECT BASE

32129-004

$3.97

57

BRACKET,BASE

32129-010

$9.49

58

BRACKET,SIGNAL RELAY

32122-047

$2.07

59

BOLT-UPSET 6X14

112B0614

$1.49

60

SCREW PAN HEAD 6X12

220B0612

Unavailable
