Description

Price

1

NUT,8M/M

314G0800

$2.26

2

WASHER,LOCK

92088-022

$11.48

3

RING-O

92055-098

$9.57

4

SHAFT,ROCKER

12020-003

Unavailable

5

ARM,ROCKER

12016-011

Unavailable

6

COLLAR,VALUE SPRING

12011-002

$24.85

6

COLLET,RETAINER

12011-004

$5.46

7

RETAINER,VALVE SPRING

12009-006

$11.50

8

SPRING,OUTER VALVE

12007-013

$16.53

9

SPRING,INNER VALVE

12007-014

$16.53

10

SEAL-OIL,RV37129.5

92049-016

$18.35

11

SEAT,VLV INNER SPRING

12010-006

Unavailable

12

SEAT,VLV OUTER SPRING

12010-005

$8.12

13

GUIDE,EXHAUST VALVE

49002-1010

Unavailable

14

"O" RING,VALVE GUIDE

92055-065

Unavailable

15

VALVE,EXHAUST

12005-012

Unavailable

16

GUIDE,INLET VALVE

12013-003

Unavailable

17

VALVE,INLET

12004-019

Unavailable

17

VALVE,INLET

12004-019

Unavailable

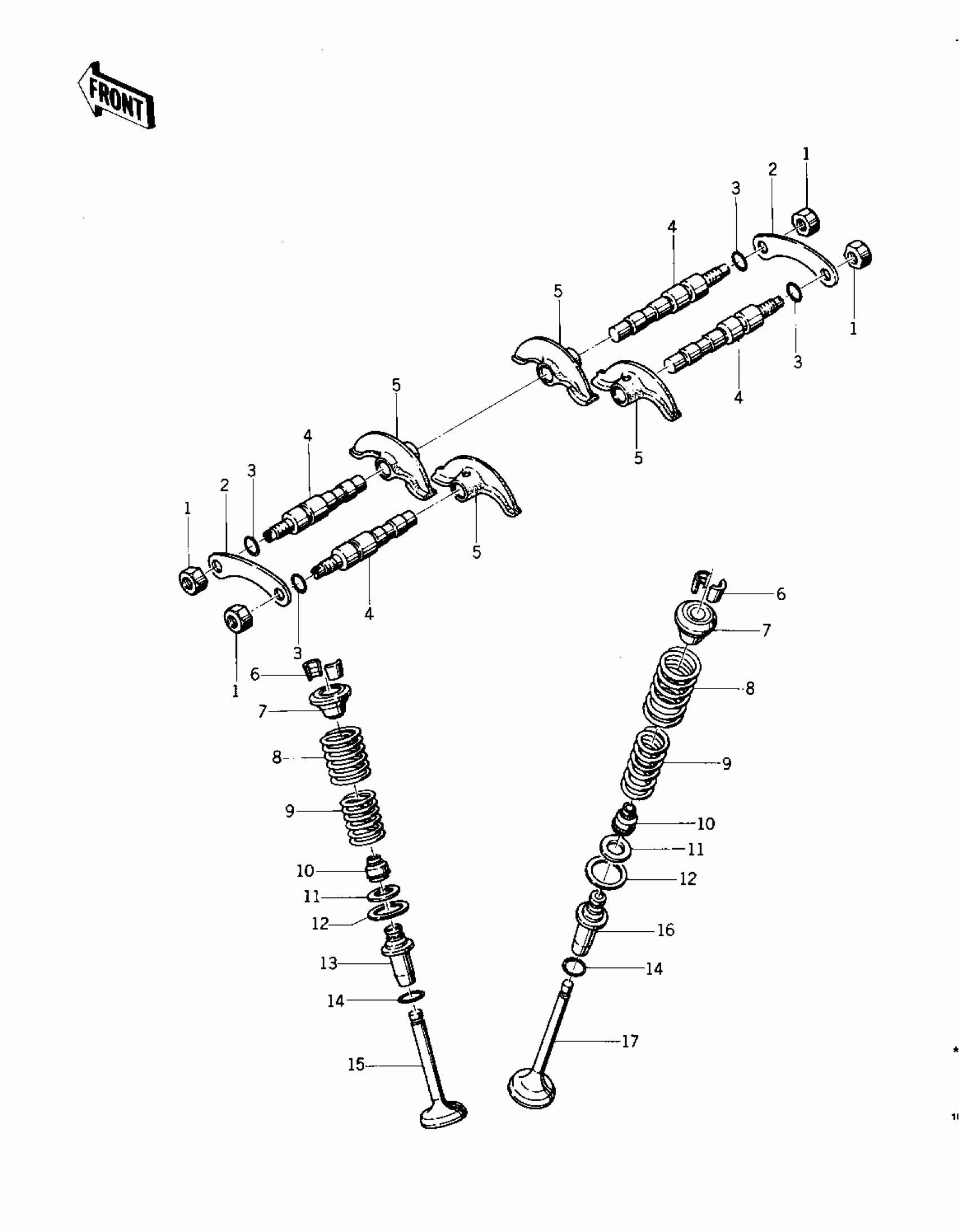

Kawasaki Special ROCKER ARMS/VALVES ('76-'77 S2/S3) Diagram

NUT,8M/M

WASHER,LOCK

RING-O

SHAFT,ROCKER

ARM,ROCKER

COLLAR,VALUE SPRING

COLLET,RETAINER

RETAINER,VALVE SPRING

SPRING,OUTER VALVE

SPRING,INNER VALVE

SEAL-OIL,RV37129.5

SEAT,VLV INNER SPRING

SEAT,VLV OUTER SPRING

GUIDE,EXHAUST VALVE

"O" RING,VALVE GUIDE

VALVE,EXHAUST

GUIDE,INLET VALVE

VALVE,INLET

VALVE,INLET
