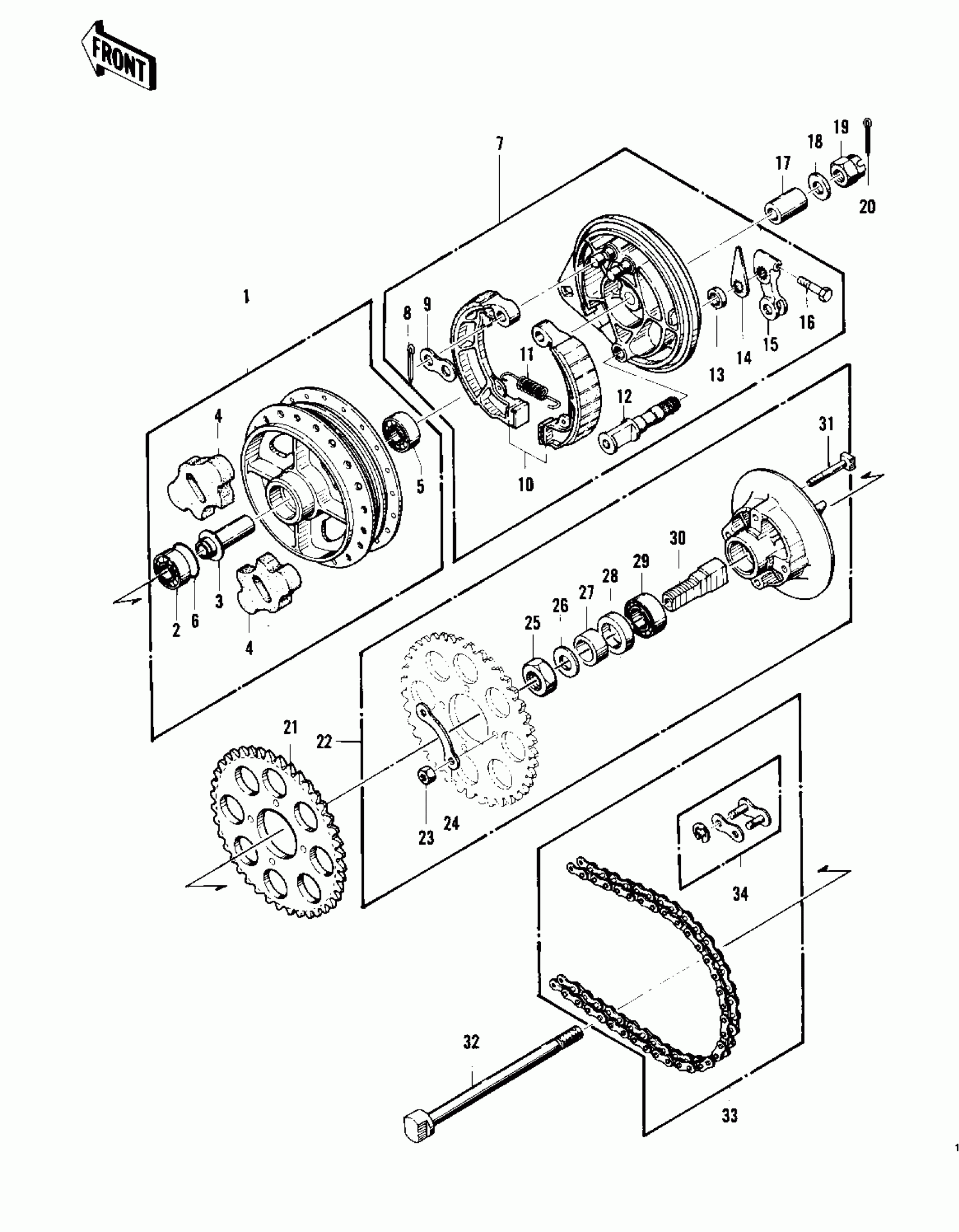

Kawasaki Special REAR HUB/BRAKE/CHAIN ('75 S) Diagram

#

Description
Price

1

DRUM ASY,RR BK,BUFF

42005-044-80

$536.22

2

BEARING-BALL,#6303C3

601B6303

$8.29

3

SPACER,RR HUB BEARING

42010-027

$18.88

4

DAMPER REAR HUB SHOCK

42014-008

Unavailable

5

BEARING BALL #6303Z

601B6303Z

$24.50

6

O RING,60MM

671B2560

$6.91

7

PANEL-ASY,RR BRK,BUFF

42006-055-80

$316.58

8

PIN COTTER 2.0X25

550D2025

$2.81

9

WASHER,BRAKE SHOE

41045-007

Unavailable

10

SHOE REAR BRAKE

42019-003

$47.81

11

SPRING BRAKE SHOE

41049-003

$3.66

12

CAM SHAFT,REAR BRAKE

42026-024

$23.28

13

SEAL,BRAKE CAM

41051-001

$4.26

14

INDICATOR,RR BK SHOE

41085-016

Unavailable

15

LEVER,REAR BRAKE CAM

42029-036

$55.33

16

BOLT-SMALL-UPSET 8X25

115G0825

$5.05

17

COLLAR,REAR AXLE

42032-053

$35.89

18

WASHER,17.3X32X3.2

42046-009

$7.84

19

NUT,16MM

92015-055

$11.50

20

PIN-COTTER,4.0X35

550D4035

$2.17

21

REAR SPROCKET,45T

42041-145

$171.45

22

COUPLING ASSY,RR HUB

42008-024

$172.78

23

NUT-HEX-FINE,10MM

314B1000

$0.67

24

WASHER,SPROCKET LOCK

92088-005

$6.24

25

NUT SLEEVE

42045-006

Unavailable

26

WASHER,PLAIN,24MM

92022-293

$4.64

27

COLLAR,RR HUB COUPLNG

42037-026

$15.47

28

SEAL-OIL,TWC35527

92052-006

Unavailable

29

BEARING-BALL,#6205C3

601B6205

$19.57

30

SLEEVE,RR HUB COUPLNG

42036-021

$39.29

31

BOLT,HUB SPROCKET,10X55

92003-156

Unavailable

32

AXLE,REAR

42031-050

$53.30

33

DR CHAIN 530X100

92057-092

$162.09

34

CHAIN JOINT 530

92058-008

Unavailable
