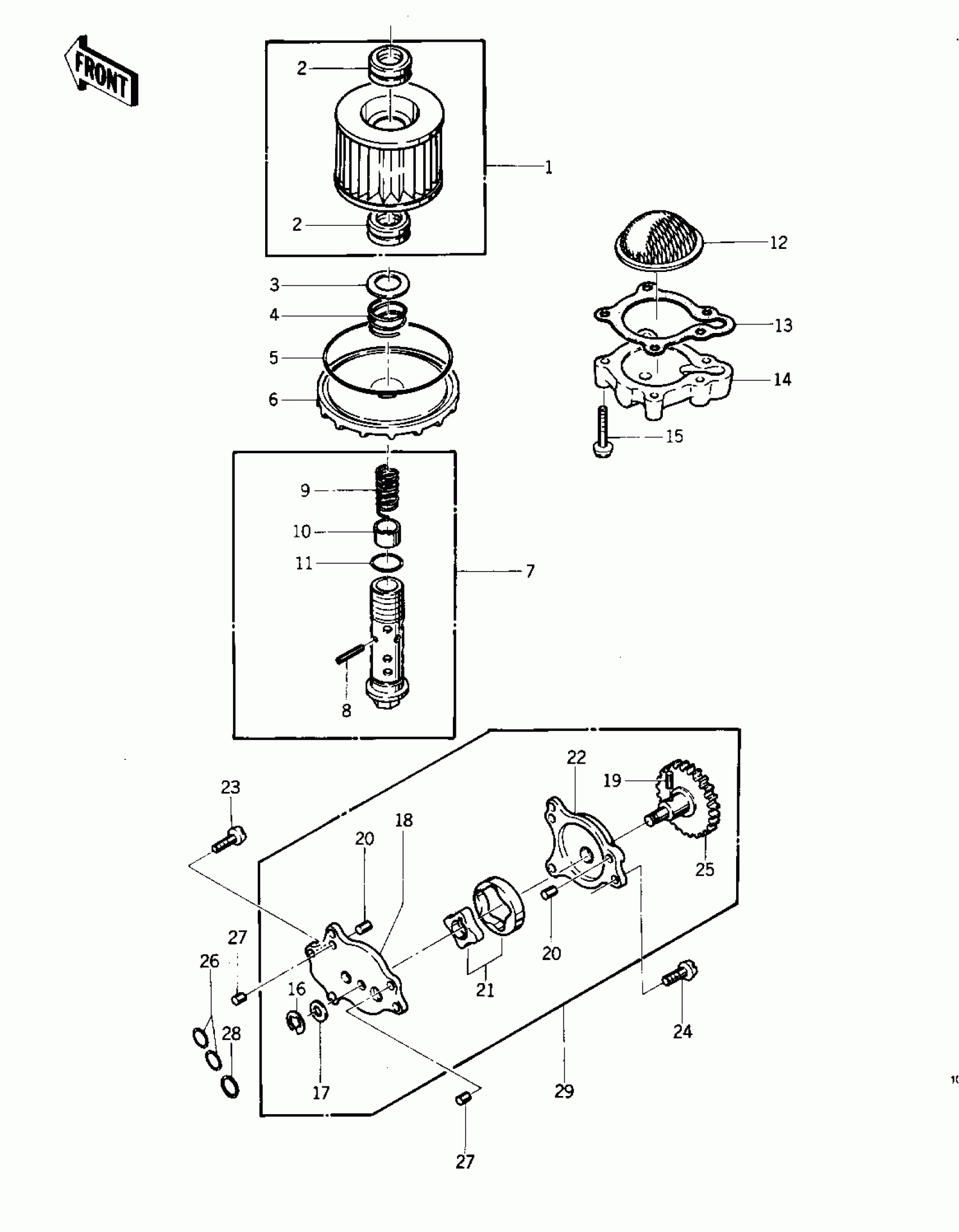

Kawasaki Special OIL PUMP/OIL FILTER ('76-'77 S2/S3) Diagram
#
Description
Price
1
ELEMENT-OIL FILTER
16099-003
$12.20
2
GROMMET,OIL FILTER
16135-010
$3.79
3
WASHER,20.5X30X0.5,STEEL
92022-144
$7.62
4
SPRING,OIL FILTER
92081-1018
$4.65
4
SPRING,OIL FILTER
92081-1018
$4.65
5
O RING,90MM
671B2590
$9.91
6
COVER,OIL FILTER
16101-004
$44.52
7
VALVE,OIL FILTER
16126-1108
$41.98
7
VALVE,OIL FILTER
16126-1108
$41.98
8
PIN,SPRING,2X20
92043-111
$6.27
9
SPRING
92081-133
Unavailable
10
PISTON
92136-001
Unavailable
11670B
Not Available As Spare Part - Friction Washer
Unavailable
12
UNAVAILABLE IN PRICE BOOK
16111-033
Unavailable
13
GASKET,OIL FILTER COVER
11009-1874
$7.55
14
COVER,OIL STRAINER
16101-003
$19.22
15
SCREW PAN HEAD 6X30
220B0630
$3.41
16
CIRCLIP 5MM
482K5000
Unavailable
17
UNAVAILABLE IN PRICE BOOK
92028-098
Unavailable
18
COVER,OIL PUMP
16142-002
$21.17
19
PIN-DOWEL,4X8
551A0408
$0.78
20
PIN-DOWEL,6X8
551A0608
$3.92
21
ROTOR ASSY,OIL PUMP
16154-001
$44.71
22
BODY,OIL PUMP
16141-002
$43.19
23
SCREW PAN HEAD 6X18
220B0618
$3.67
24
SCREW PAN HEAD 6X25
220B0625
$2.60
25
GEAR,OIL PUMP DRIVEN
16085-023
$77.66
26
"O" RING,11.5MM
92055-072
Unavailable
27
PIN-DOWEL,6X8
551A0608
$3.92
28
RING-O,13.5MM
92055-073
$10.04
29
OIL PUMP ASSY
16083-004
$154.58
